VIEW 5 Pro Arc Fusion Splicer from INNO Instrument

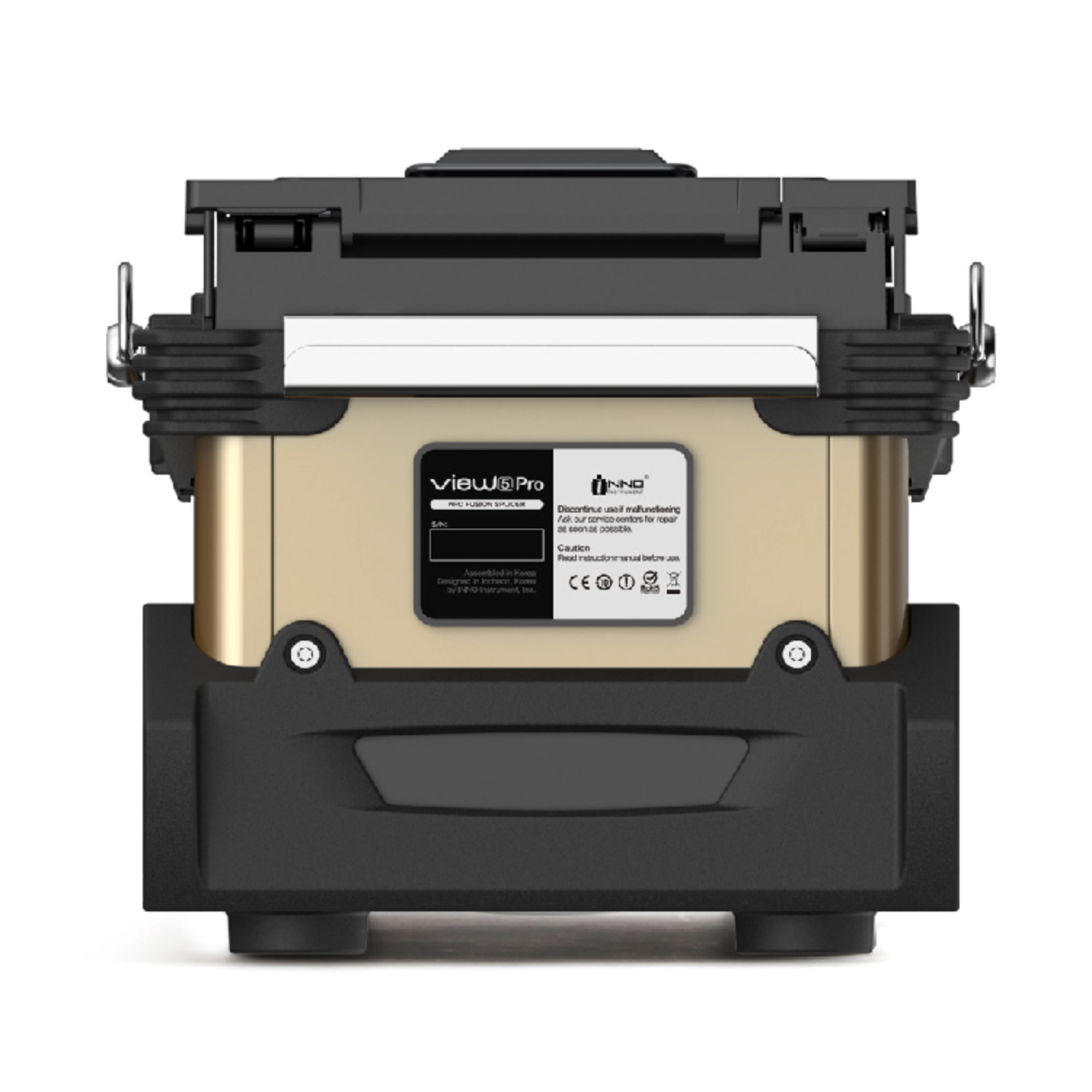

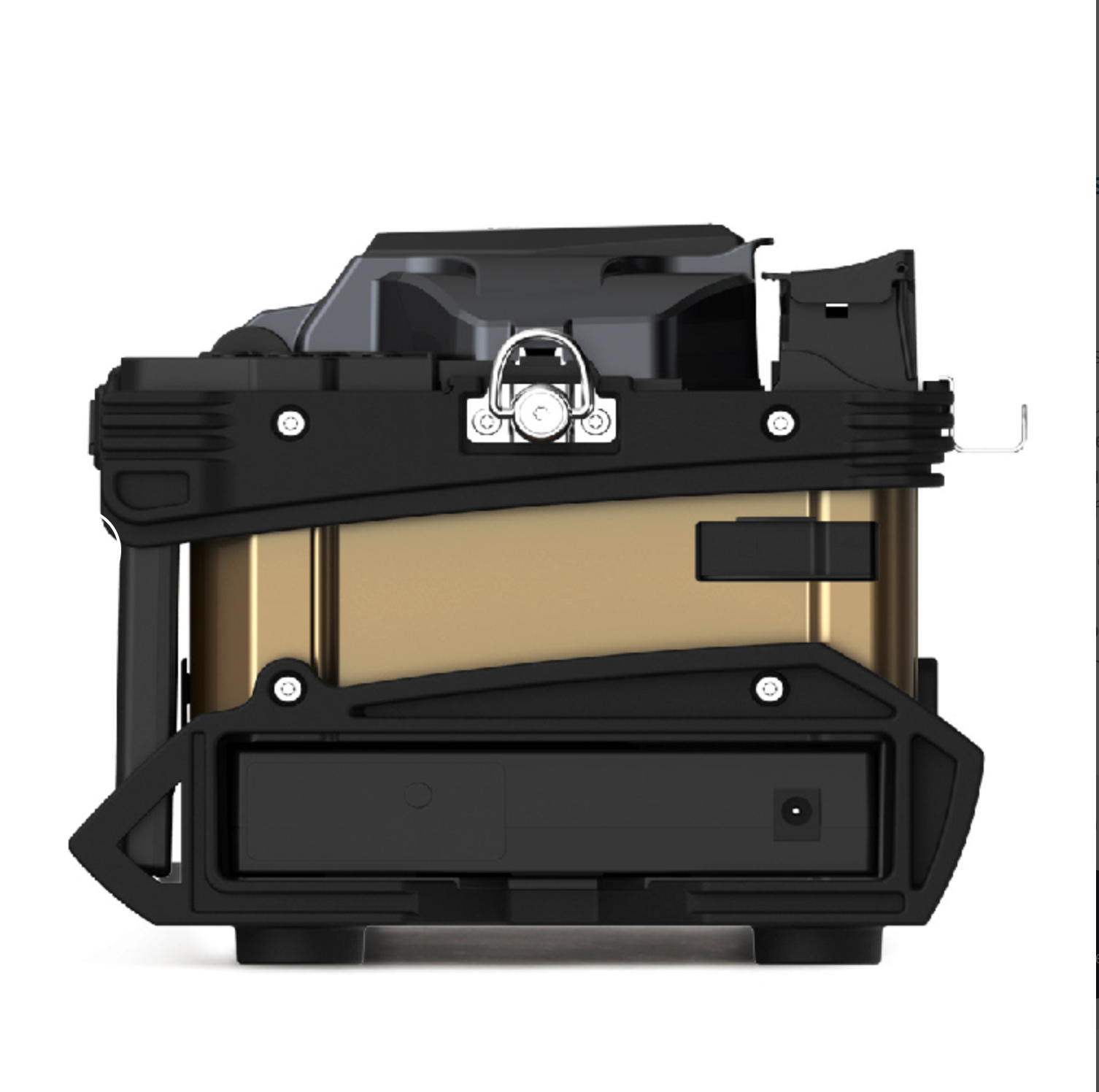

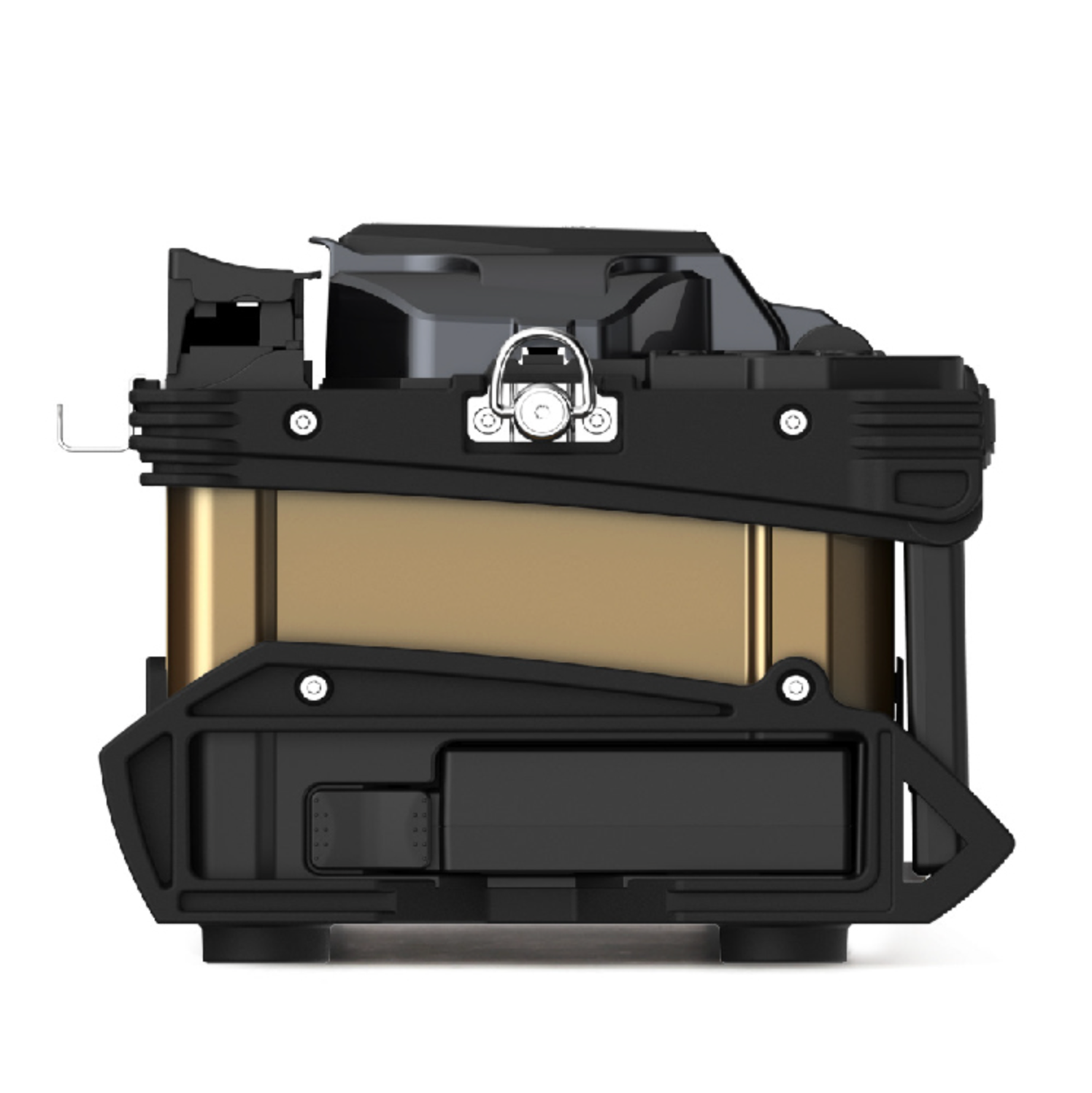

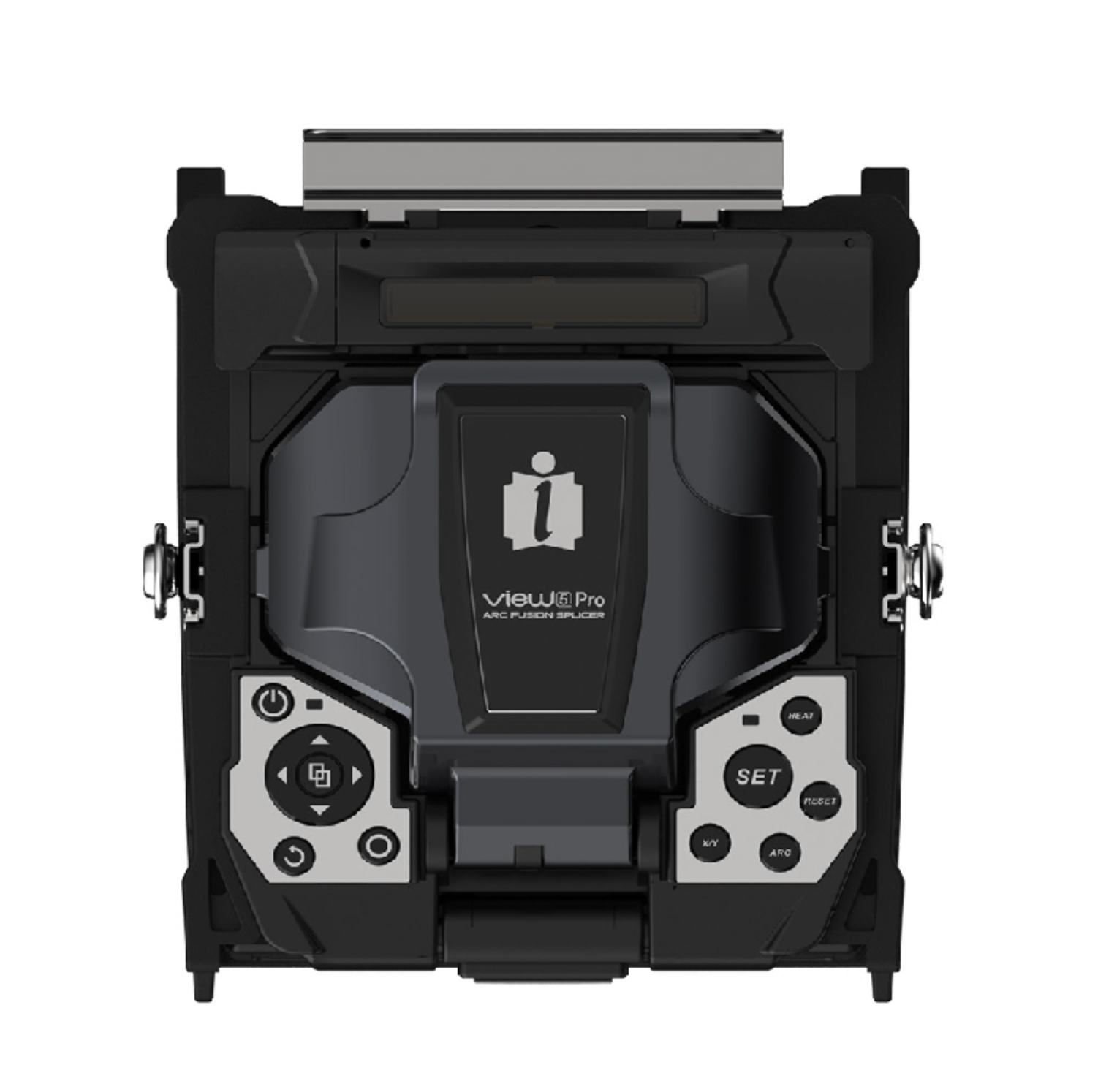

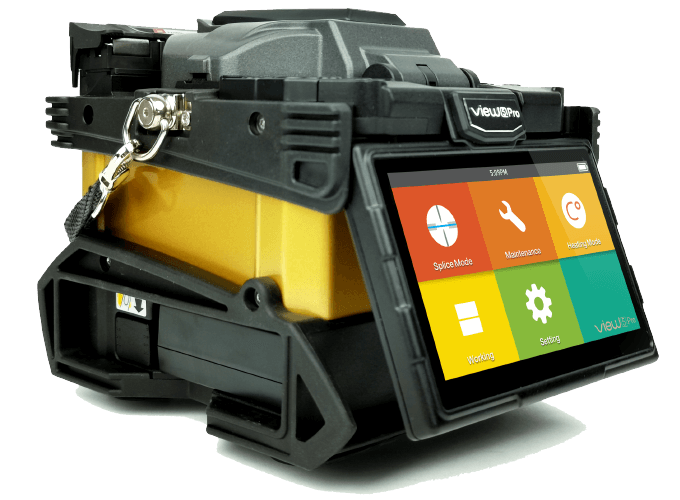

VIEW5 PRO, a core-alignment splicer with the world’s highest image magnification rate, is the most proficient fusion splicer in the market.

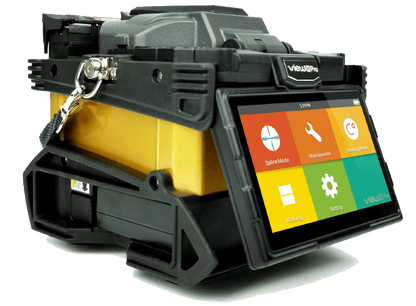

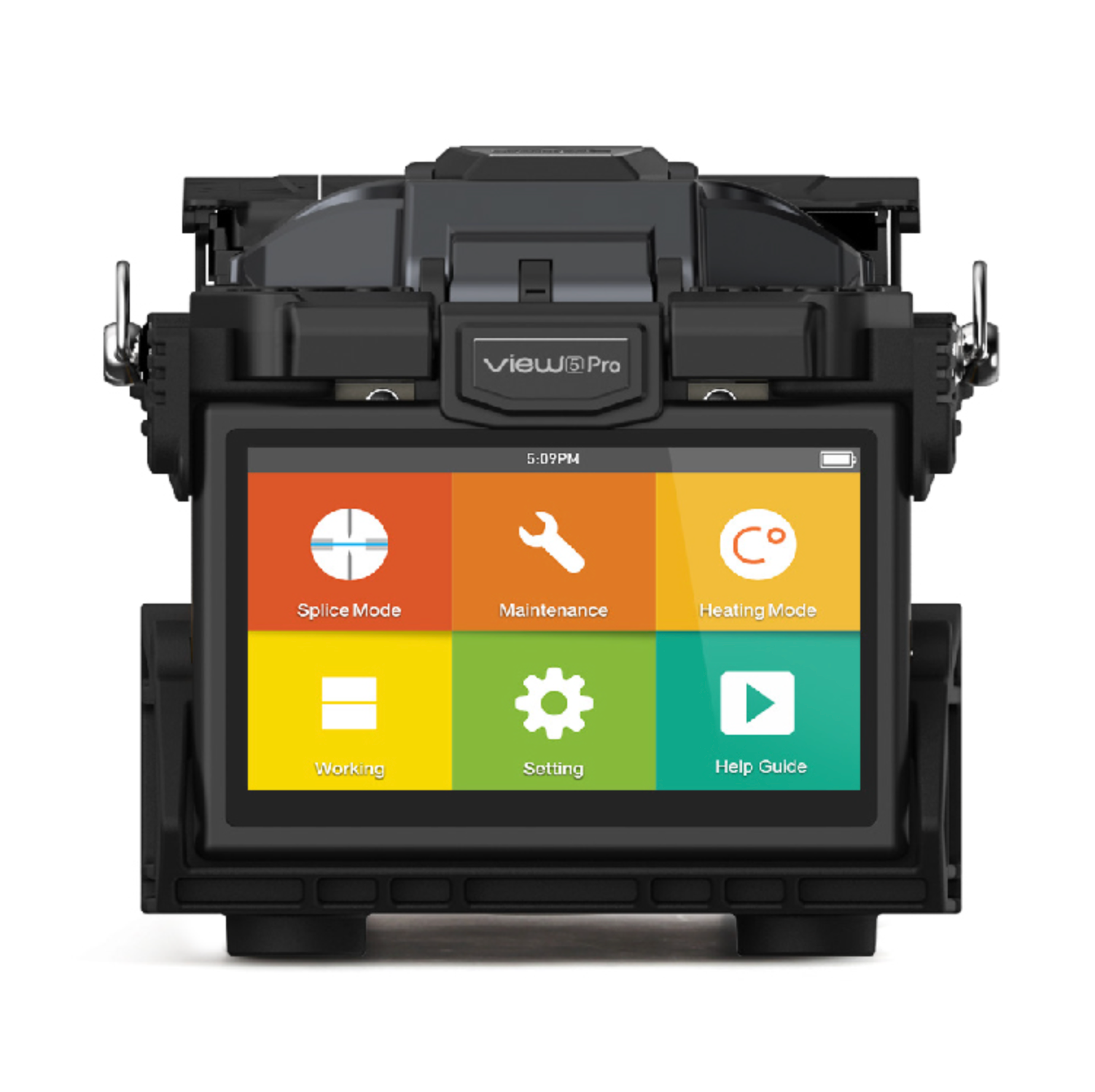

VIEW5 PRO’s 5 inch resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers users large and clear fiber images. Furthermore, by double-tapping the screen, users can Zoom In & Out the image to the world’s highest magnification of 520x.
The fusion splicer is equipped with a built-in IoT module that connects to the INNO’s Cloud Management System for real-time operation and management online. This innovative cloud-based solution is designed to create the most advanced yet uncomplicated splicing and work experiences ever.
Features
Features
- Two cameras,
- 5-inch color LCD display
- Full touch screen
- 320x magnification for single X or Y view
- 520x magnification for double click X or Y view
- Pull test：1.96 to 2.25N
- Terminals: Type C / SIM
Specifications
| Specifications | |
|---|---|
| Model | View 5 |
| Dimensions |
147mm H x 130mm W x 155mm D (including rubber bumper) |
| Weight |
1.85 KG (without battery) 2.21 KG (with battery) |
| Number of Fiber | Single |
| Applicable Fibers |
SM (ITU-T-G652 & G.657) MM (ITU-T- G.651) DS (ITU-T-G.653) NZDS (ITU-T-G.655) |
| Compatible Fiber / Cable | 0.25mm - 3.0mm / Indoor Cable |
| Cleaved Length |
Diameter 0.125mm - 1mm Cleave Length 8-16mm |
| Cladding Diameter | 80µm - 150µm |
| Splicing Mode | Max 128 modes |
| Heating Mode | Max 32 modes |
| Typical Splice Loss |
SM: 0.02dB MM: 0.01dB DS: 0.04dB NZDS: 0.04dB G.657:0.02dB (ITU-T-standard) |
| Return Loss | >> 60 dB |
| Lighting | 3 White LEDs |
| Splicing Time |
Quick mode 7 sec SM mode 9 sec |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 20mm - 60mm |
| Heating Time | FP-03 typical heating 13 sec |
| Results Storage | The last 10,000 results |
| Tension Test | 1.96 - 2.25N |
| Operating Condition |
Altitude: 0 to 5000m above sea level Humidity: 0 -95% relative humidity Temperature: -10 - 50°C Wind: 15m/sec |
| Storage Condition |
Humidity: 0-95% relative humidity Temperature: -40~80℃ |
| Display |
90° bi-directional view 5.0” Color H” gh Resolution Display |
| Fiber View & Magnification |
X, Y, XY, X/Y 520X magnification |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| No. of Splice & Heating With Battery |
4200mAh Battery Capacity Typical 170 times (Splice + Heat) |
| Operating Methods | Button / Touch Screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 5500 arcs, can be extended by using an electrode grinder |
| Terminal | USB2.0/ Mini USB |
Additional Information
View 5 Operation
What's in the Box
What's in the Box
- Qty 1 - INNO Instrument Smart Core Alignment Fusion Splicer W/ A Cloud-Based Operation and Management System, View 5 PRO Kit
