Description

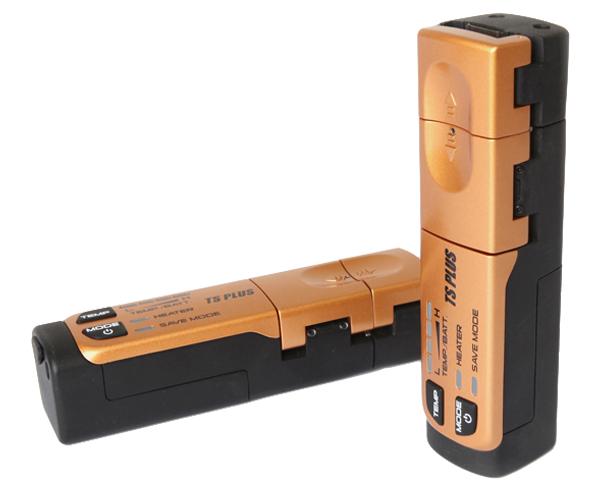

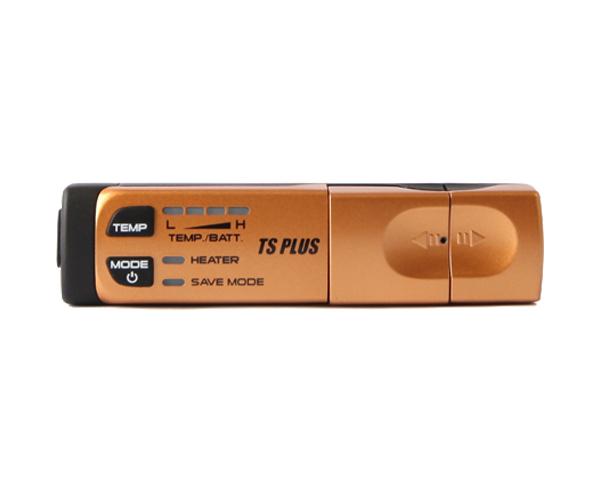

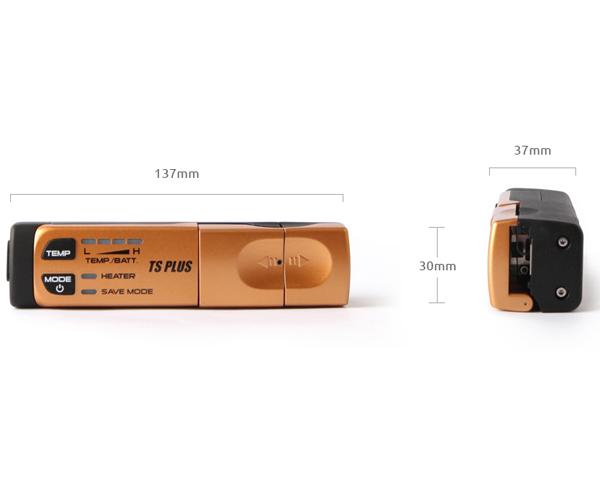

TS Plus Ribbon Stripper
TS-Plus is a newly developed simple type ribbon stripper with built-in heater and designed to strip up to 12 ribbon fibers. This exceptional product is extremely easy to use in the FTTx industry and in any difficult-to-operate environment.
Features
Features
Long-lasting Thermal Stripper for ribbon fiber cable
- Dedicated stripper for ribbon fiber cable
- Hand-held type stripper
- World’s fastest heating time of 4sec
- Long lasting battery: Approx. 500 times with a full charged battery
- Simple Operation
Specifications
| Specifications | |
|---|---|
| Fiber Material | Silica Glass |
| Coating Material | UV cured resin |
| Coating Thickness |
Single fiber: 0.25~0.4mm 2 to 12 Ribbon fiber: 0.3~0.4mm |
| Cladding Diameter | 125μm |
| Coating Removal Length | Max 30mm |
| Heating Mode | Normal mode / Power save mode |
| Temperature Settings |
Normal mode: approx. 80℃, 95℃, 110℃, 130℃ Power save mode: approx. 70℃, 80℃, 95℃, 110℃ |
| Fiber Holder Type | FH-2, FH-4, FH-6, FH-8, FH-10, FH-12, FH-250, FH-900 |
| Power Method Supply |
1) AC drive: AC100~240V, 50/60Hz 2) DIN port: DC 12V power supplied from fusion splicer |
| Operating Condition Temperature | 0℃~40℃ / Humidity: 0%~95% |
| Applicable Fiber Type |
Single fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable Ribbon fiber: 2 to 12 ribbon fiber cable |
| Heating Time |
Normal Mode: Approx. 4~5sec Save Mode: Approx. 5~6sec |
| Battery Capacity | Approx. 500 stripping with 12 ribbon fiber with a full charged battery |
Additional Information
| PRODUCT VIDEOS | |
|---|---|
TSPLUS WITH ROLL-ABLE (SWR) RIBBON FIBER |
What's in the Box
What’s in the Box
- Qty 1 - TS Plus Ribbon Stripper
- Qty 1 - Battery
- Qty 1 - Protective Carrying Case
- Qty 1 - USB Charging Cable
- Qty 1 - User Manual
