Description

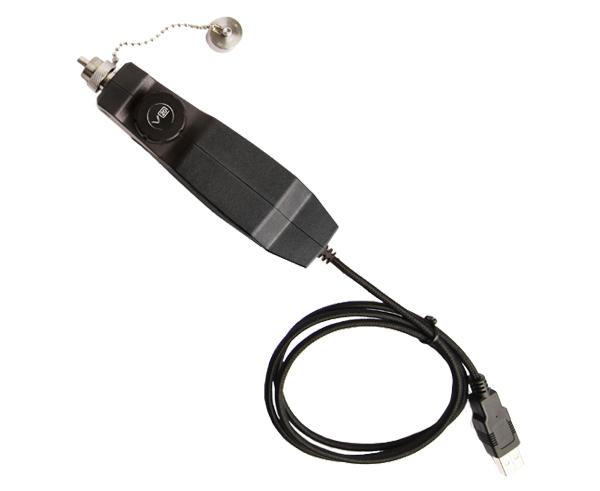

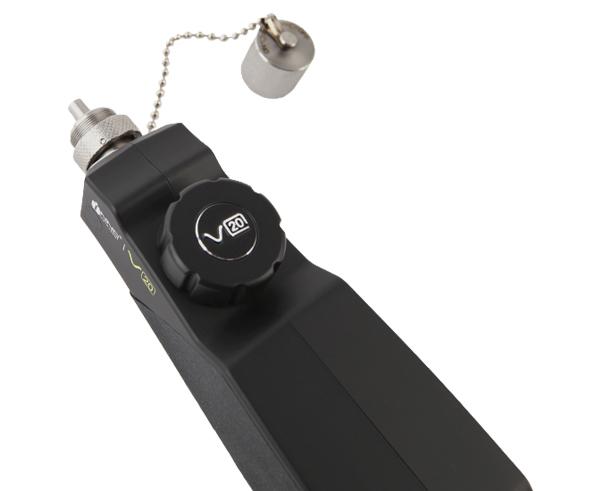

V20 Fiber Microscope
The Fiber Microscope is chiefly used in checking if the fiber end-face is clean. With the ability to display a clear image and the double amplification function, the V20 is able to analyze the cleanliness of the fiber end-face.
Features
Features
Handheld Fiber Microscope Enables Fiber Face Inspection
- Test report
- S/W program to use with PC
- Pass/Fail Result
- Image magnification
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Resolution | 3.2μm |
| Image Sensor | 640 x 480 (VGA) |
| Visual Test | < 5μm |
| View Angle | 200μm*200μm of high magnification / 360μm*360μm of low magnification |
| Light Source | Blue LED |
| Luminance Technique | Coaxial light source |
| Digital Zoom | 3 grades |
| Connector | USB 2.0 |
| Operating / Storage Temperature | -10°C to 50°C / -40°C to 70°C |
| Patchcord Tip Adapters | 2.5mm (UPC, APC), 1.25mm (UPC, APC) |
What's in the Box
What’s in the Box
- Qty 1 - INNO V20 Fiber Microscope
- Qty 1 - 2.5mm ferrule tip (UPC)
- Qty 1 - 2.5mm ferrule tip (APC)
- Qty 1 - 1.25mm ferrule tip (UPC)
- Qty 1 - 1.25mm ferrule tip (APC)
- Qty 1 - Carrying Case
