Description

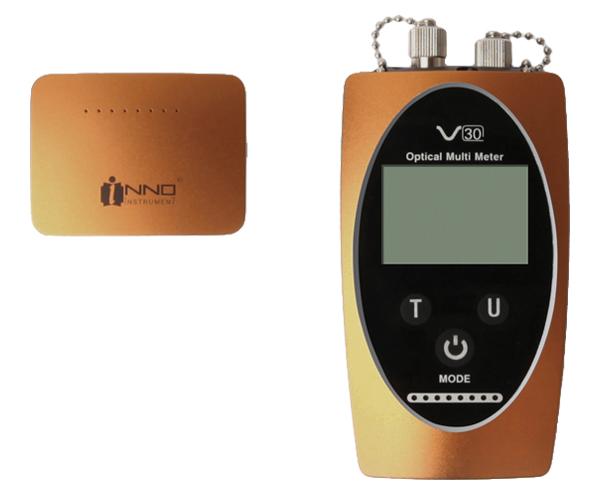

V30 Optical Multi Meter
The V30 network optical multi meter is easy to operate with multiple functions of as OPM, VFL and LAN & Telephone Line Test.
The V30 is designed for use in the fields of construction and maintaining optical cable, communications companies and data Centers.
Features
Features
THREE Useful Functions in ONE
- Optical Power Meter (OPM)
- Visual Fault Locator (VFL)
- LAN & Telephone Line Test
Specifications
| PARAMETER | ||
|---|---|---|
| OPTICAL POWER METER (OPM) | Sensor type | InGaAs |

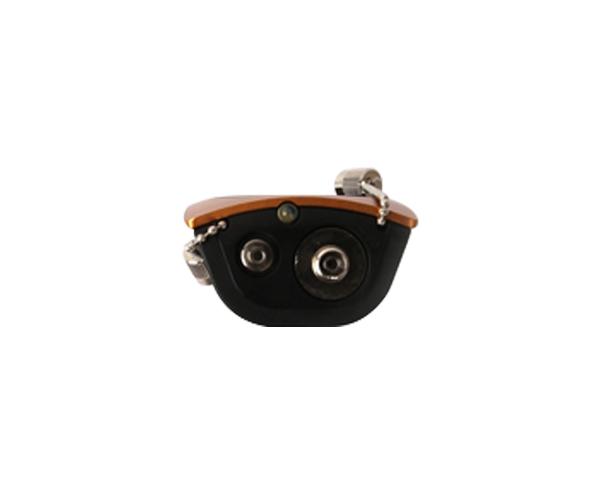

| Fiber port type | SC, FC, ST (Interchangeable) | |
| Calibration wavelength | 850 / 1300 / 1310 / 1490 / 1550 / 1625nm | |
| Measuring range | from +6 to -70dBm | |
| Accuracy | ±0.02dB | |
| Linearity | ±2% | |
| Display unit | dBm, mW, uW | |
| VISUAL FAULT LOCATOR (VFL) | Output power | 1mW |
| Fiber port type | 2.5mm ferrule type | |
| Laser safety level | Class 2 | |
| Wavelength | 650nm ± 20nm | |
| Output mode | Continuous / 2Hz flashing lasers | |
| Reverse current protection | Available | |
| NETWORK CABLE / PHONE LINE TEST | Port type | RJ45 / RJ11 |
| Applicable cable / Telephone line | UTP CAT-5 / CAT-5e (2/4/6 core phone lines) | |
| Maximum measuring range | 1Km | |
| Operating temperature / Storage temperature | -10°C ~ +60°C / -20°C ~ +70°C | |
| Relative humidity | < 90%, Non-condensation | |
| Main body weight / Accessories weight | 127.5g / 28.5g | |

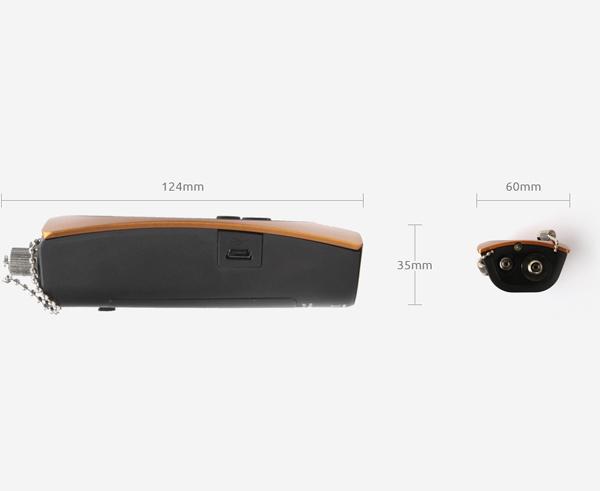

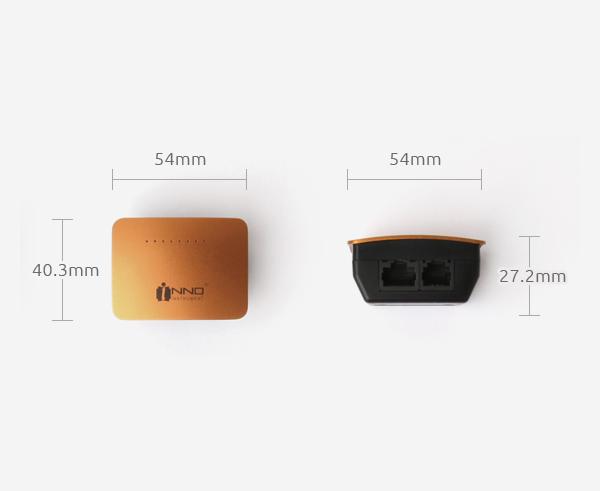

| Main body size / Accessories size | 124H x 60W x 35D mm / 40.3H x 54W x 27.2D mm | |
| Display segment display | LCD 1.8in 40x28mm | |
| Battery | 2 pieces of batteries (AA, 1.5V) | |
What's in the Box
What’s in the Box
- Qty 1 - V30 Optical Multi Meter
- Qty 1 - Testing Module
- Qty 1 - User Manual
- Qty 2 - AA Batteries
- Qty 1 - Set of Interchangeable Fiber Adapter Connectors (SC, FC, ST)
- Qty 1 - Carrying Case or Pouch
