| Model |

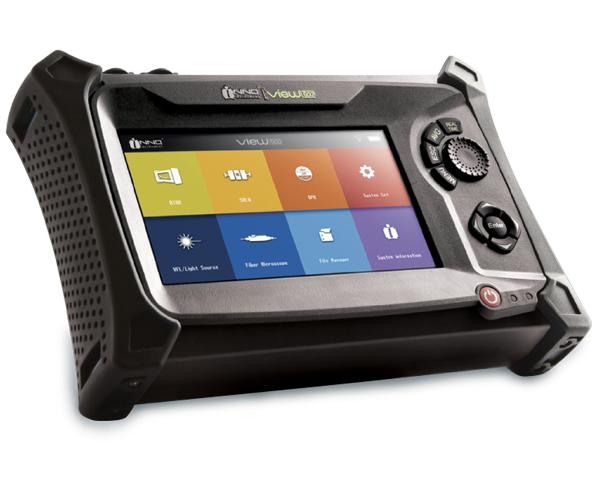

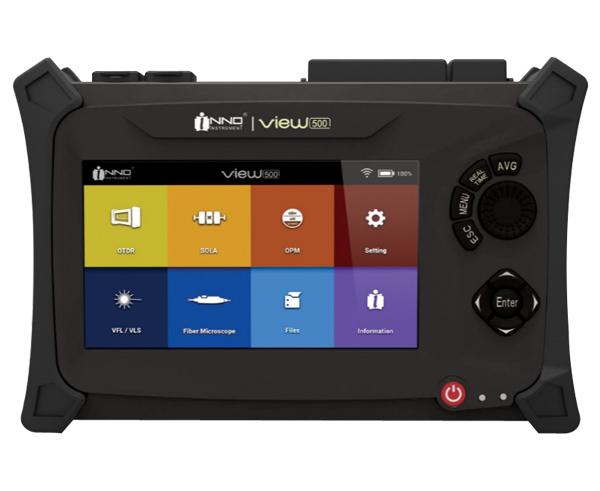

VIEW500 |
| Display |
7 inches, High Brightness TFT LCD, resolution of 800×480 |
| Distance Unit |
m / km / mile / ft |
| Dynamic Range |
35dB / 33dB (1310nm / 1550nm) |
| Range Settings (km) |
1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km |
| Range Settings (mile) |
0.81, 1.55, 3.11, 6.22, 12.4, 24.8, 49.6, 74.6, 99.4, 223.7mile |
| Pulse Width |
5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs |
| Dead Zone (Event/Attn./PON) |
0.8m / 4m / 40m |
| Distance Accuracy |
±(1m+Distance×2.5×10-5 +Sampling resolution) |
| Linearity |
0.03dB |
| Sampling Points |
160,000 points |
| Refractive Index |
1.000000 - 2.000000 (step: 0.000001) |
| Splitting Ratio |
Up to 1:64 splitter |
| Resolution |
0.04m ~ 10.24m |
| Loss Readout Resolution |
0.001dB |
| Battery Capacity |
Operating Time : Up to 12hours |
| File Format |
SOR, BMP, JPG, GDM, SOLA, PDF |
| External Connection |
USB 2.0 |
| Compatible Connector |
APC(FC, SC, LC), UPC(FC, SC, LC, ST) |
| Power Supply |
AC Input 100-240V, 50-60Hz / DC Input 19V, 3.42A |
| VFL Port |
2.5mm ferrule type |
| VFL Wavelength |
650nm ±10nm |
| VFL Distance |
Up to 10km |
| VFL Output Power |
20mW |
| Light Source |
Operating wavelength: 1310nm / 1550 nm ±10nm |
| Light Source Output Power |
-5dBm |
| OPM Port |
SC, FC, ST |
| Wavelength Calibration (OPM) |
850 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650nm |
| Power Range (OPM) |
-70 to +6dBm (Accuracy: 0.01dB) |
