Description
Intersystem Bonding Grounding Connectors
A full Grounding line covering all applications, featuring heavy duty, direct burial clamps, and range taking rod clamps. Primus Cables’ Grounding line also includes clamps with adapters, clamps for water pipe, rigid conduit or rebar, intersystem bonding connectors and clamps for parallel 90, 2, and 3 conductor copper cable.
Features
- Convenient lay-in feature for main grounding conductor, accommodates #2 to #6 AWG.
- Lay-In feature eliminates the need to cut or splice to main electrode.
- Lay-In feature eliminates disassembling ground to rod connection.
- Optional UV Resistant paintable cover for more desirable appearance.
- For indoor and outdoor use.
- Compact size measures 1.4”H x 1.19” W x 3.93” L.

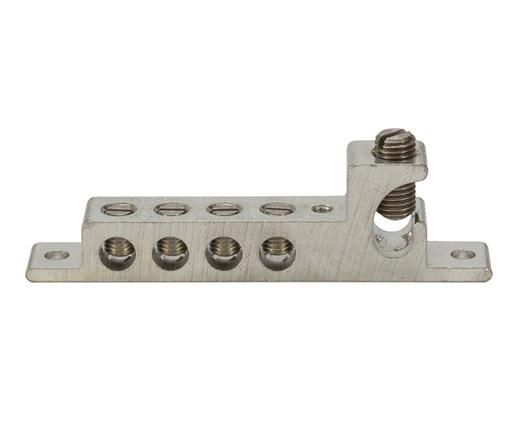

GBIAL
- Supplied with stainless steel screws to prevent corrosion.
- Dual rated for copper or aluminum conductor.

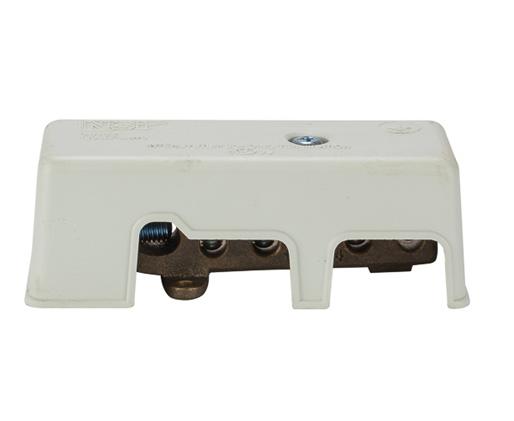

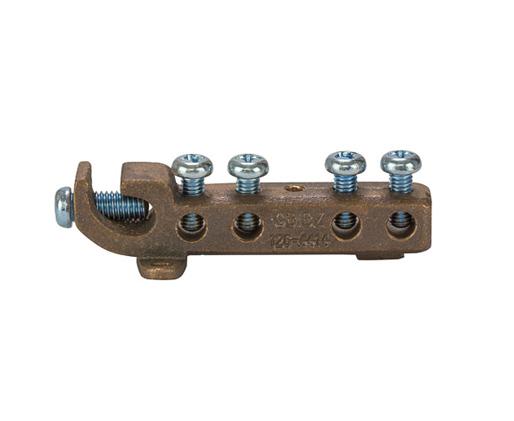

GBIBZ
- Assembled with Zinc plated steel screws.
- Rated for copper conductor only.
Specifications
- Zinc Die-Cast Ground Clamps (GZ)
- cULus Listed 467 Grounding & Bonding.
- UL467 Listed, Grounding & Bonding.
APPLICATIONS
- Connector for intersystem bonding of power and communication (phone, cable, and satellite) grounding systems.
- Meets or exceeds requirements set forth in NEC2008 250.94 Bonding of other systems facilitates a fast and simple connection to ground conductor below the meter.
| Part# | Material | Description | Wire Range (in.) | No. of Circuits |
| NPNB-GBIAL1264414 |
Aluminum |
Cover Not Included | (1) 2-6, (4) 4-14 | 4 |

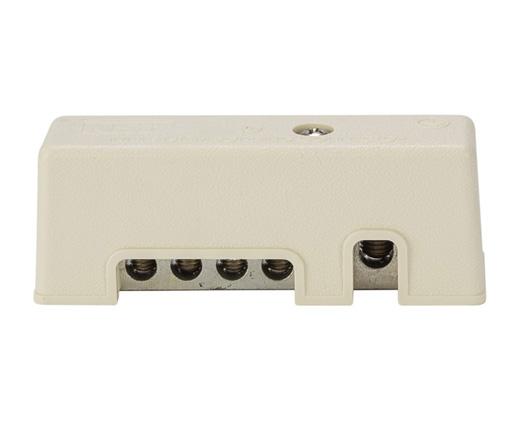

| NPNB-GBIAL1264414WC |
Aluminum |
With Cover | (1) 2-6, (4) 4-14 | 4 |
| NPNB-GBIBZ1264414 | Bronze | Cover Not Included | (1) 2-6, (4) 4-14 | 4 |
| NPNB-GBIBZ1264414WC | Bronze | With Cover | (1) 2-6, (4) 4-14 | 4 |
What's in the box?
What's in the box?
-
Intersystem Bonding Grounding Connectors
