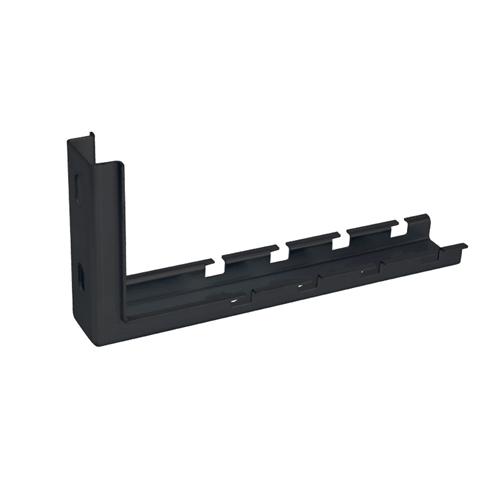

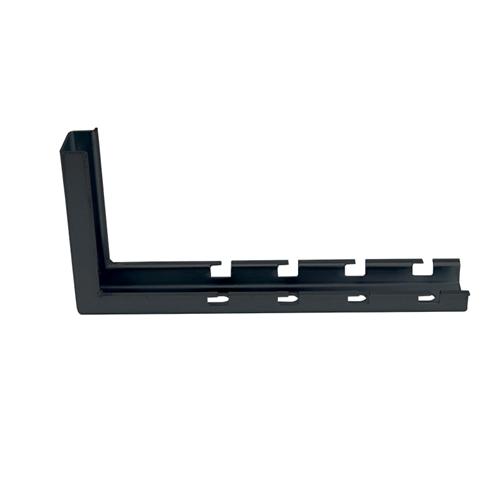

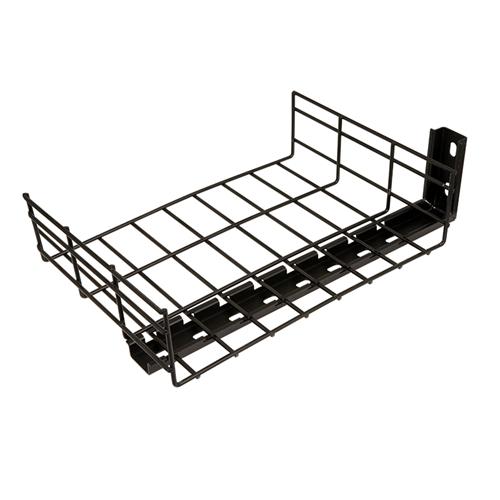

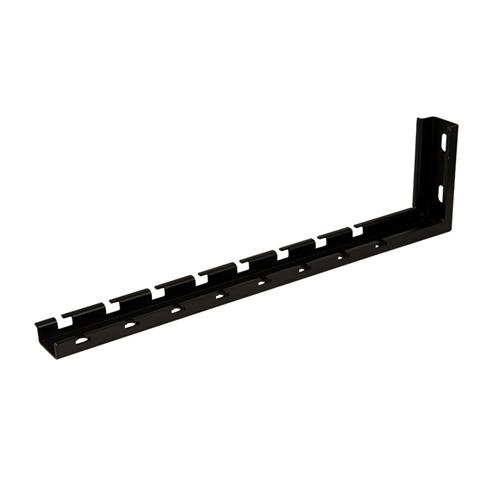

L Brackets provide a secure method for mounting basket tray to a wall while helping to maintain a consistent distance between the wall and tray (hardware for mounting to wall not included). For use with 4” (100mm) to 16” (400mm) wide trays and compatible with all tray depths.
Features
Features
Helps maintain a consistent distance between the basket tray and a wall
For use with 4” (100mm) to 16” (400mm) wide tray
Compatible with all tray depths
Black powder coat finish
Hardware for mounting to wall not included
Sold individually
Specifications
TECHNICAL SPECIFICATIONS
MATERIAL
HIGH-STRENGTH CARBON STEEL
FINISH
BLACK POWDER COAT
DIMENSIONS (W X H)
2" X 7.1"
COMPLIANCE & STANDARDS
IEC 61537
DESCRIPTION
DIMENSIONS (L x W x H)
WEIGHT
L Bracket for 4"W Tray
7” x 2” x 7.1”
0.8 lbs
L Bracket for 6"W Tray
9” x 2” x 7.1”
0.9 lbs
L Bracket for 8"W Tray
11” x 2” x 7.1”
1 lbs
L Bracket for 12"W Tray
15” x 2” x 7.1”
1.3 lbs
L Bracket for 16"W Tray
19” x 2” x 7.1”
1.4 lbs
Additional Information
TECHNICAL ILLUSTRATIONS
What’s In The Box
What’s In The Box
Qty 1 - L Bracket Kit
