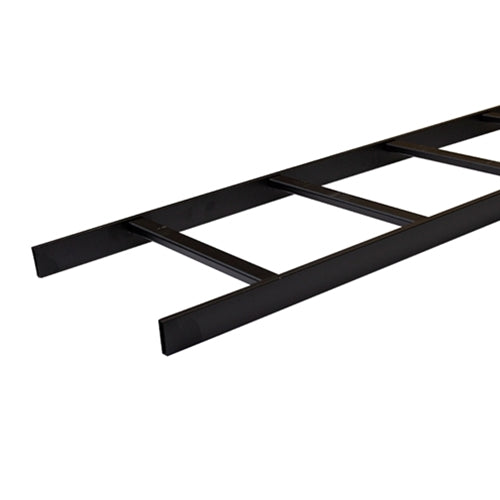

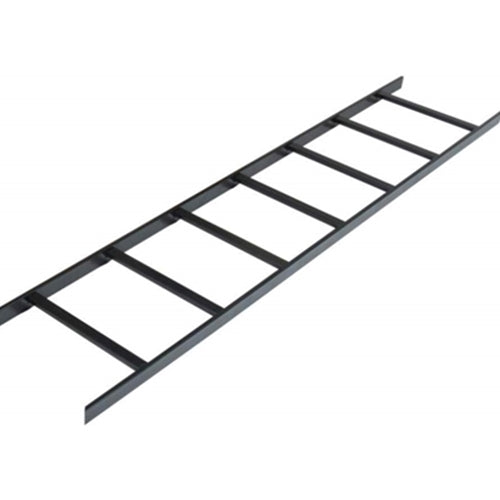

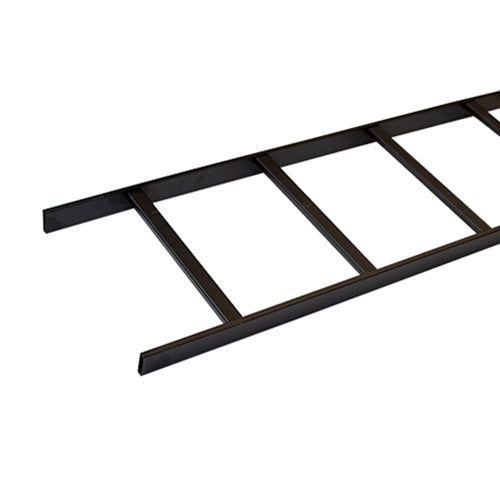

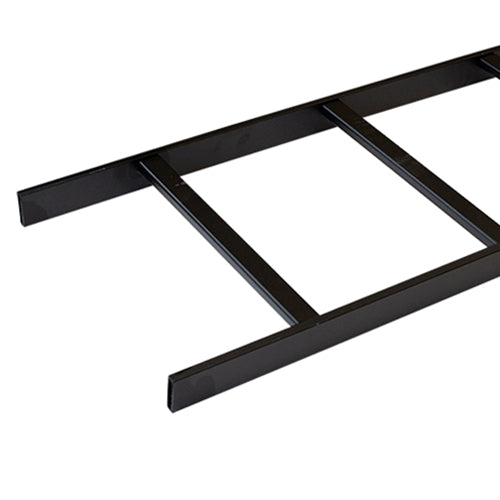

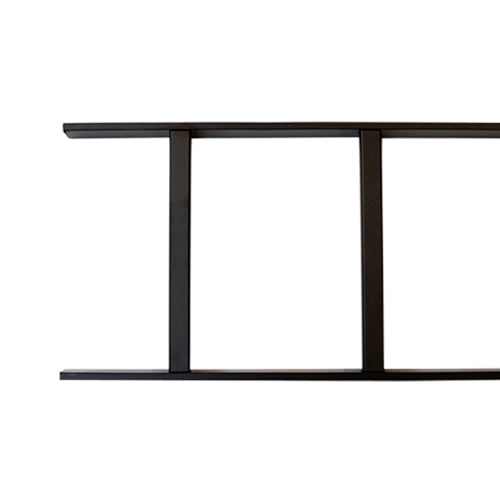

Our Straight Cable Ladder Racks are designed to guide data cables along ceilings, walls, or raised floor applications. A ladder rack system is a series of sections such as straight, radius bends, e-bends, and are designed to be adaptable, easy to install, and accommodate different room layouts.
Supports overhead cable runs between a rack and a wall
Provides additional structure and stability to 2-post racks
Keep cables secure and organized
12" wide
Features
Features
Stringers: 1-1/2 x 3/8 x 0.06 thick tubular steel
Cross Members: 1.00 x 1/2 thick tubular steel welded on 9.00 centers
Offered in 10 foot long sections
RoHS compliant
Max. load w/min. deflection: 132 lbs. per ft if supported every 5 ft
Packaged and sold individually
Specifications
Technical Specifications
Product Type
Cable Ladder Rack
Product Material (Stringers)
1-1/2 x 3/8 x 0.06 Thick Tubular Steel
Product Material (Cross Members)
1.00 x 1/2 Thick Tubular Steel Welded on 9.00 Centers
Compliance & Standards
RoHS Compliant
Max. Load W/ Min. Deflection
132 lbs. Per Foot If Supported Every 5 Feet
Additional Information
Technical Illustration
What’s In The Box
What’s In The Box
Qty 1 - 5' Ladder Rack Runway (12" wide)
