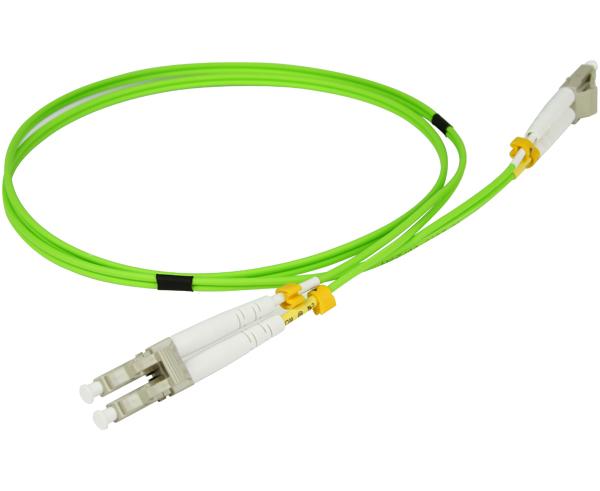

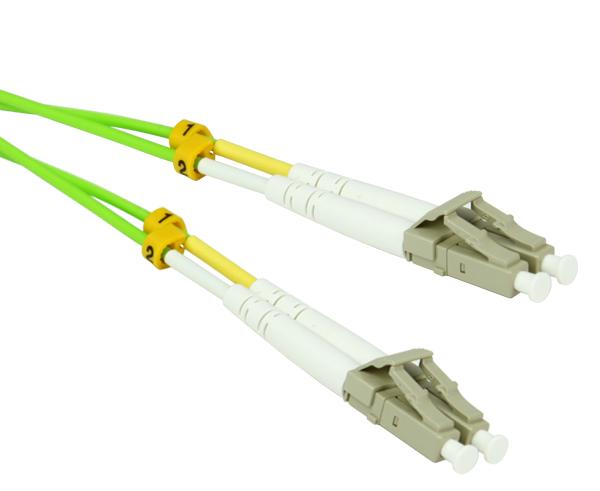

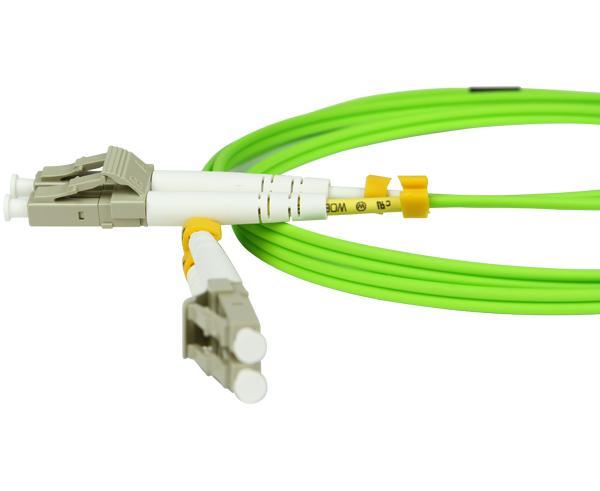

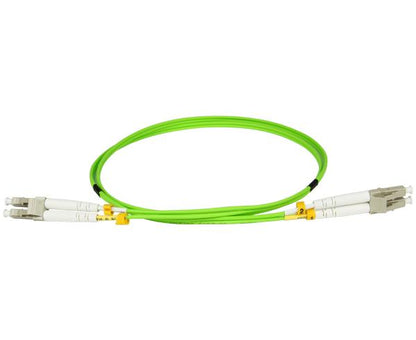

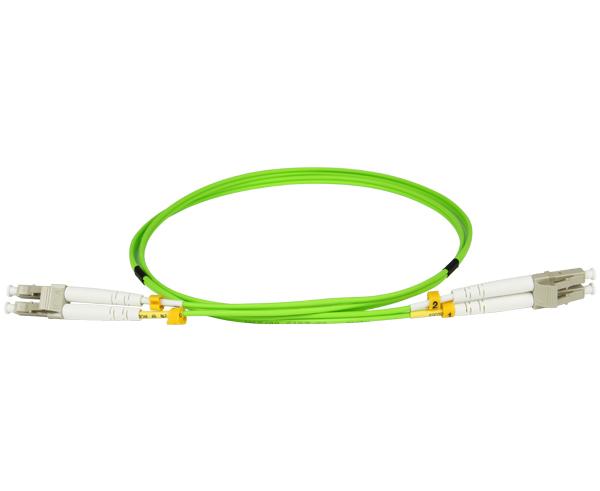

LC/UPC-LC/UPC OM5 Multimode Duplex OFNR Lime Green Fiber Optic Patch Cable
OM5 wide-band multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.
OM5 meets TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements while completely backward compatible with existing OM4 networks and applications. It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.
- Multimode, 50/125 40G - 100G OM5
- Duplex fiber
- UPC polish type
- Snap-in connectors for easy installation.
- Bend Insensitive Fiber
- 7.5mm Minimum Bend Radius
- Zirconia Ceramic Ferrule
- UL Listed in Canada and the US; RoHS Compliant
Mode: Multimode OM5
Connector Style: Duplex
Connectors: LC to LC
Polish Type: UPC to UPC
Typical Insertion Loss: ≤ 0.03 dB
Maximum Insertion Loss: ≤ 0.30 dB
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Your patch cable selection is important to the type of fiber optic network you are working on. Some are ideal for single mode, while others might be the right for a Multimode installation. Another factor to consider is polish type when using single mode cables.
While you patch cable choice is important, it is only one piece of the fiber optic network to choose from. Take a look at what's available in these other key product categories:
- fiber optic enclosures
- fiber channel testers
- splice trays
- fiber optic accessories
Connector Type Abbreviations:
SC - a snap-in style connector. Known for its excellent performance. Referred to as Subscriber Connectors, Square Connectors or Standard Connectors.
ST - a very popular choice connector for Multimode networks. Also referred to as Straight Tip connectors, they utilize a bayonet-style coupling type, enabling a simple twist-on and twist-off installation.
FC - was at one time the most popular single mode connector type, but is now typically being replaced by SC and LC connectors. Also known as Ferrule Connectors, they utilize a screw-on coupling type to be used in high-vibration environments and are commonly used for datacom, telecom, measurement equipment and single-mode lasers.
LC - a small form factor connector—measuring half the size of an SC connector. This is a popular choice for single mode cables. Also referred to as Lucent Connectors, Little Connectors or Local Connectors, these snap-in connectors are typically used for high density connections and are compatible with plug-and-play devices such as SFP modules and XFP transceivers.
Polish Type Abbreviations:
Note: The polish type affects the amount of back reflection, also known as reflectance.
PC - Physical Contact. Polished to create a slight dome at the end of the ferrule that helps to maximize the signal being transmitted.
UPC - Ultra Physical Contact. More extensive polishing than the PC type, a greater dome shape is created that further help to maximize the signal being transmitted.
APC - Angled Physical Contact. Polished at an angle rather than a dome shape. This is the most efficient polish type.
