Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
If you’re looking to purchase more than one spool then each spool needs to be entered into the cart as a separate line item. Input the length and then select Add to Cart for every individual spool needed.
This product has a minimum $50 associated cut fee applied to the shipping cost
(We do not offer credits or returns for this item.)
Minimum and Maximum Order Lengths for Non-Freight Shipments:
|6 & 12 Fibers||24 & 48 Fibers||72 Fibers|
|Min.||1,700ft. (518m)||Call For Quote||Call For Quote|
|Max.||3,100ft. (945m)||Call For Quote||Call For Quote|
Note: 6 & 12 Fiber over 3,100ft and all 24, 48 & 72 fiber must ship freight and requires a quote.
To request a quote or inquire about our custom fiber give us a call.

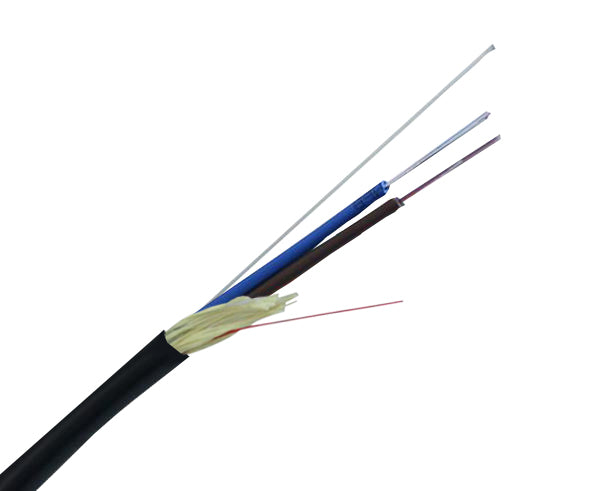

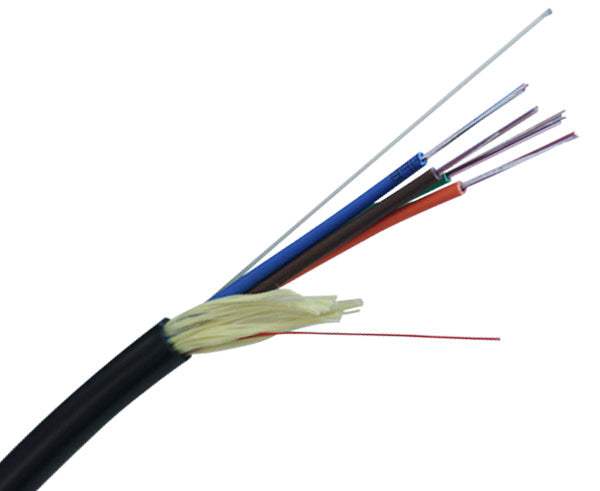

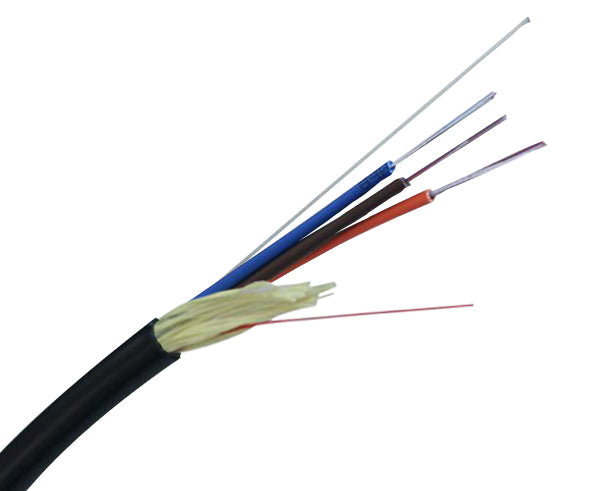

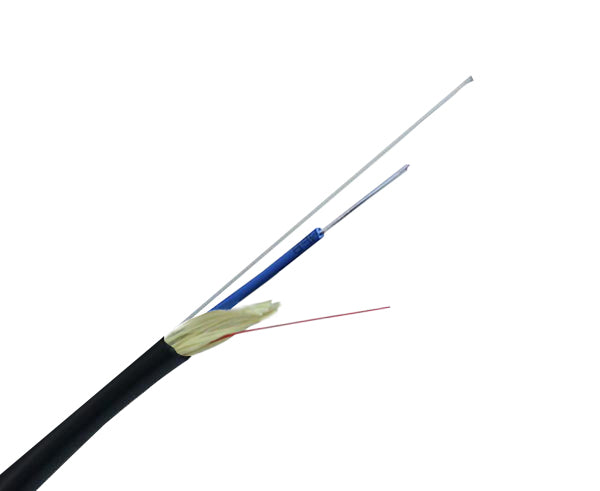

Dry Loose Tube OM4 50/125 Multimode Plenum OFNP Fiber Optic Cable
This multi-tube Dry Loose Tube Indoor/Outdoor Cable is composed of one to six sub-units, water blocking aramid yarn, central strength member, optional solid filler rods, and a PVC outer jacket. Each sub-unit consists of 2 to 12 colored optical fibers and water-swellable yarn with a PVC jacket 2.5mm in diameter. All component materials meet the EU RoHS and REACH Directive standards. Sub-units can be color-coded or sequentially numbered.
Dry Loose Tube is available in 12 TIA standard colors or special-order colors. UL Listed OFNP cables are available, and unlisted, unrated cables can be supplied to accommodate special needs. Standard surface print denotes construction, NEC rating, and fiber type, and includes footage markers.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
- Gel-Free Water Blocking Design
- UV Protected Flame Resistant Rugged Jacket
- 6-72 Fiber Count
- Available in all Fiber Types Including 10 Gigabit
- NFPA 262 Flame Rating
- Storage Temperature: -40ºC to +70ºC
- Operating Temperature: -40ºC to +70ºC
- Fiber Count Options: 2-12, 24, 36, 48, 72
- Outer Jacket Material: Flame Retardant PVC
- Buffer Tubes: Flame Retardant PVC
- Strength Member: Aramid Yarn
- Central Strength Member: Fiber Reinforced Rod
- Coating on Central Strength Member: Flame Retardant PVC
- 2-12 Strand: 4.8 mm
- 24 Stand: 8.5 mm
- 48 Stand: 8.5 mm
- 72 Stand: 10.4 mm
- 2-12 Strand: 78 lbs/km
- 24 Stand: 150 lbs/km
- 48 Stand: 182 lbs/km
- 72 Stand: 252 lbs/km
2-12 Strand: 7.2 cm
- 24 Stand: 12.8 cm
48 Stand: 12.8 cm
72 Stand: 15.6 cm
2-12 Strand: 4.8 cm
- 24 Stand: 8.5 cm
48 Stand: 8.5 cm
- 72 Stand: 10.4 cm
- Core Size: 9 um
- Wavelength: (1310/1550) nm
- Max. Attenuation: (0.5/0.4) dB/km
- Bandwidth (EMB) (High Performance): N/A
- Link Length : 10,000/5,000 (1/10 Gb/s@1550nm)
Multi-Mode cable commonly has a diameter in the 50-to-100 micron range (typical multimode fiber core diameters are 50 or 62.5 micrometers). Multimode fiber gives you high bandwidth at high speeds (10 to 100MBS - Gigabit to 275m to 2km) over medium distances. Light waves are dispersed into numerous paths, or modes, as they travel through the cable's core typically 850 or 1300nm. However, in long cable runs (greater than 3000 feet [914.4 meters), multiple paths of light can cause signal distortion at the receiving end, resulting in an unclear and incomplete data transmission so designers now call for single mode fiber in new applications using Gigabit and beyond.
