Description

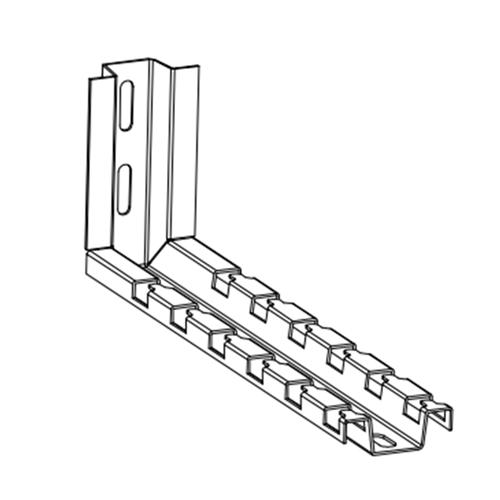

M-Type L Bracket
The M-type L Bracket provides additional strength when mounting a high capacity basket tray to a wall while helping to maintain a consistent distance between the basket tray and the wall (hardware for mounting to wall not included). For use with 4” (100mm) to 16” (400mm) wide trays and compatible with all tray depths.
Features
Features
- Helps maintain a consistent distance between the basket tray and a wall
- For use with 4" (100mm) to 16" (400mm) wide tray
- Compatible with all tray depths
- Black powder coat finish
- Hardware for mounting to wall not included
- Sold individually
Specifications
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| MATERIAL | HIGH-STRENGTH CARBON STEEL | |
| FINISH | BLACK POWDER COAT | |
| DIMENSIONS (W X H) | 2.5" X 7.5" | |
| COMPLIANCE & STANDARDS | IEC 61537 | |
| DESCRIPTION | DIMENSIONS (L x W x H) | WEIGHT |
| M-type L Bracket for 4"W Tray | 7” x 2.5” x 7.5” | 0.7 lbs |
| M-type L Bracket for 6"W Tray | 9” x 2.5” x 7.5” | 0.8 lbs |
| M-type L Bracket for 8"W Tray | 11” x 2.5” x 7.5” | 0.9 lbs |
| M-type L Bracket for 12"W Tray | 15” x 2.5” x 7.5” | 1.1 lbs |
| M-type L Bracket for 16"W Tray | 19” x 2.5” x 7.5” | 1.3 lbs |
Additional Information
| TECHNICAL ILLUSTRATIONS | |
|---|---|
|
What's in the Box
What's in the Box
- Qty 1 - M-Type L Bracket Kit
