Description
Mechanical Connectors Aluminum, Dual Rated, Panelboard Lugs, L Series
Primus Cables’ Mechanical Connectors are Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance.
Features
Features
- Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness.
- Made of 6061T-6 aluminum alloy.
- Electro-tin plated for low contact resistance.
- For use with copper or aluminum conductors.
- All hole spacing is NEMA standard of 1.750”.
Specifications
Specifications
- cULus Listed Wire Connector.
- UL486A/B Listed. AL9CU
- Temperature Rating: 90 °C.
- Voltage: 600V max. (2000V ma. per UL486B).
| Part# | Wire Range | MTG. Bolt Size (in.) | MTG. Hole Dia. (in.) | Length (in.) | Height (in.) | Width (in.) |

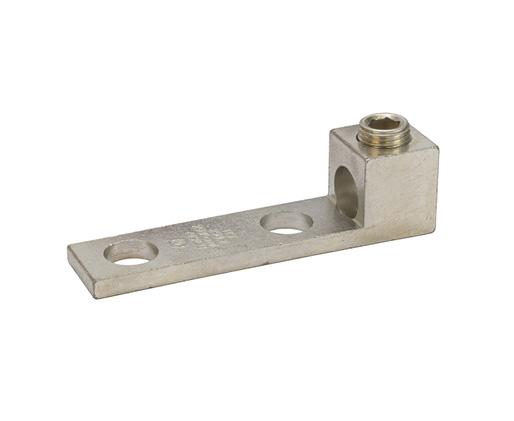

| NPNB-250L2 | 250 MCM-6 AWG | 1/2 | 0.560 | 4.310 | 0.880 | 1.380 |

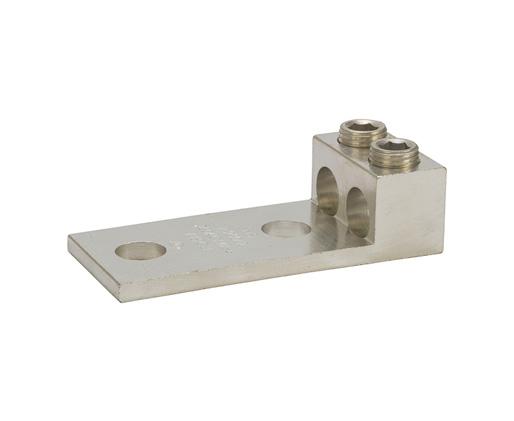

| NPNB-2-250L2 | (2) 250 MCM-6 AWG | 1/2 | 0.560 | 3.880 | 1.690 | 1.020 |

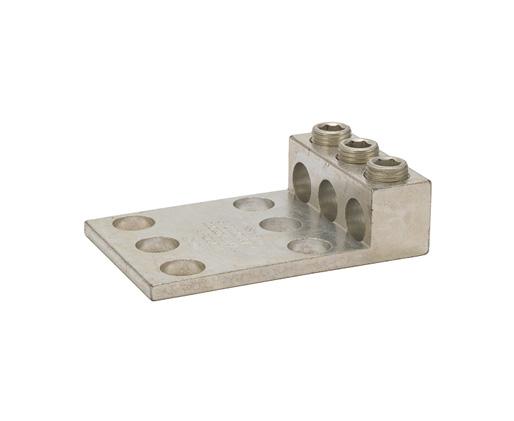

| NPNB-3-250L2/L4 | (3) 250 MCM-6 AWG | 1/2 | 0.560 | 3.880 | 2.500 | 1.020 |

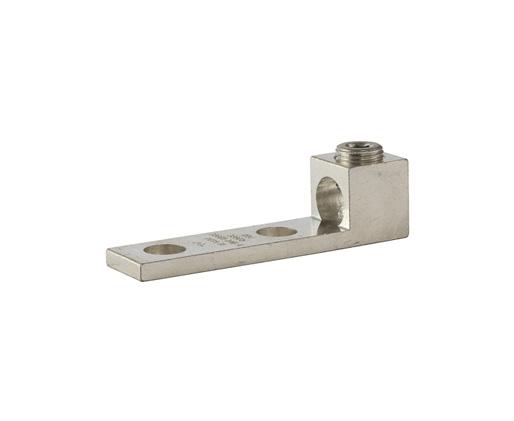

| NPNB-350L2 | 350 MCM-6 AWG | 1/2 | 0.560 | 4.310 | 0.990 | 1.380 |

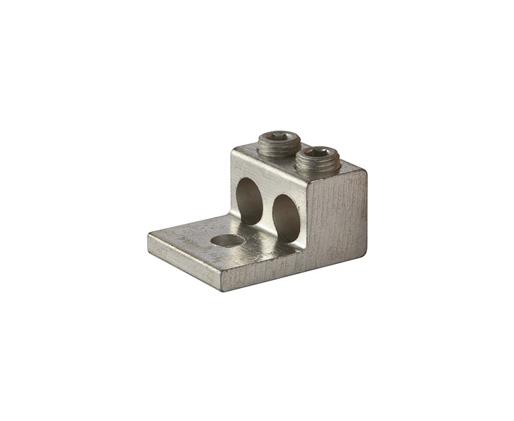

| NPNB-2-350L2 | (2) 350 MCM-6 AWG | 1/2 | 0.560 | 4.250 | 1.920 | 1.130 |

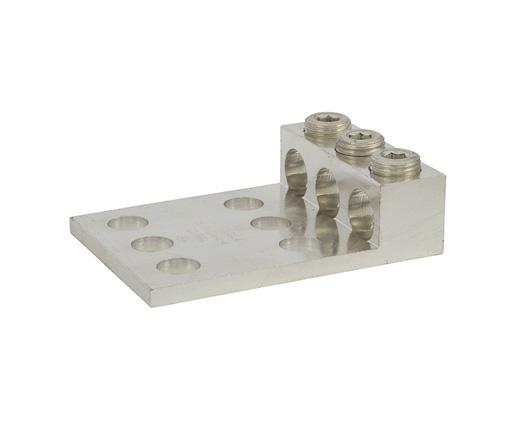

| NPNB-3-350L2/L4 | (3) 350 MCM- 6 AWG | 1/2 | 0.560 | 4.250 | 2.920 | 1.130 |

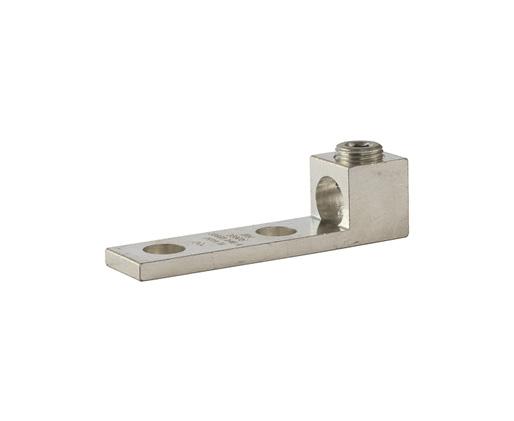

| NPNB-600L2 | 600 MCM -2 AWG | 1/2 | 0.560 | 4.650 | 1.380 | 1.510 |

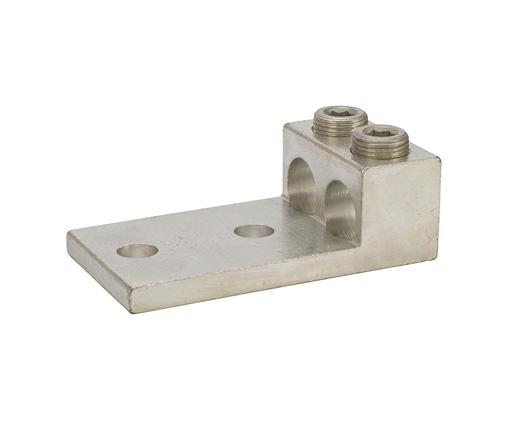

| NPNB-2-600L2 | (2) 600 MCM-2 AWG | 1/2 | 0.560 | 4.650 | 2.406 | 1.510 |

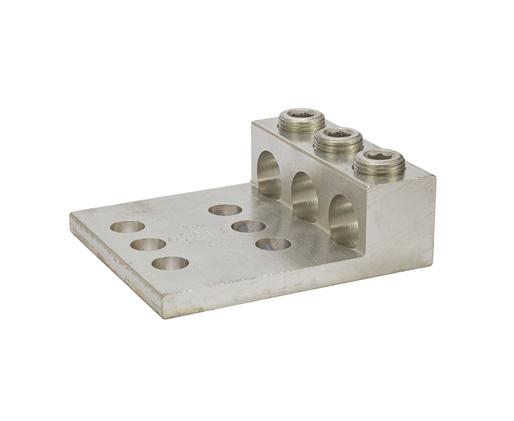

| NPNB-3-600L2/L4 | (3) 600 MCM-2 AWG | 1/2 | 0.560 | 4.650 |
3.930 | 1.510 |

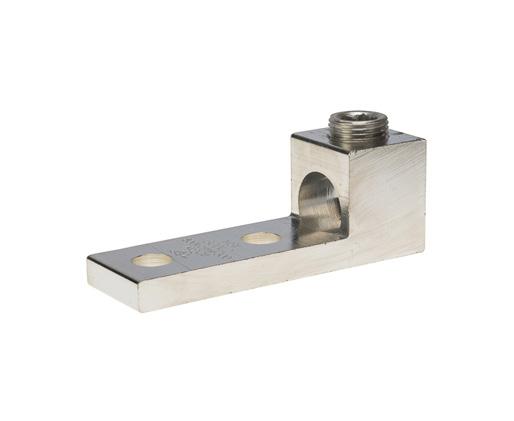

| NPNB-800L2 | 800-350 MCM | 1/2 | 0.560 | 4.750 | 1.440 | 1.690 |

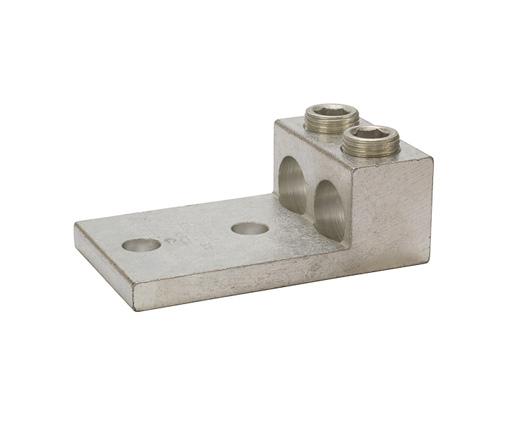

| NPNB-2-800L2 | (2) 800-350 MCM | 1/2 | 0.560 | 4.750 | 2.750 | 1.690 |
| NPNB-3-800L2/L4 | (3) 800-350 MCM | 1/2 | 0.560 | 4.750 |
4.060 | 1.690 |

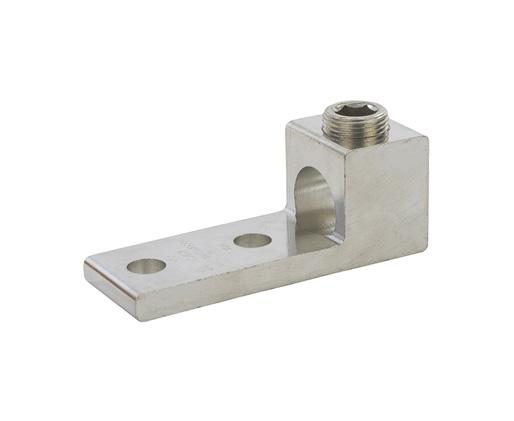

| NPNB-1000L2 | 1000-500 MCM | 1/2 | 0.560 | 4.940 | 1.690 | 1.880 |

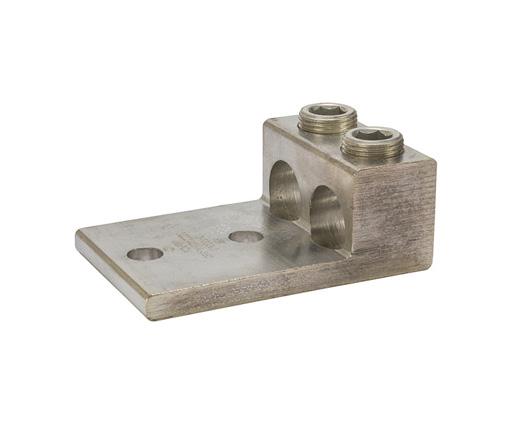

| NPNB-2-1000L2 | (2) 1000-500 MCM | 1/2 | 0.560 | 4.940 | 3.190 | 1.880 |

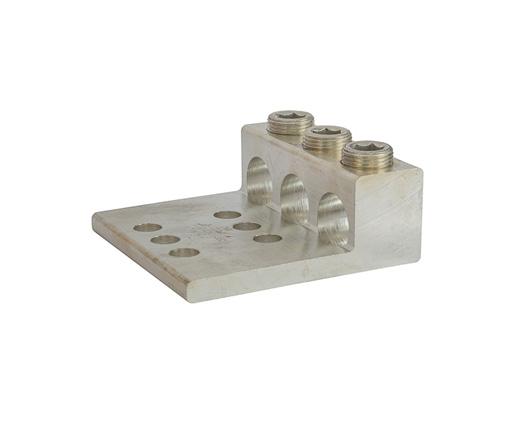

| NPNB-3-1000L2/L4 | (3) 1000-500 MCM | 1/2 | 0.560 | 4.940 | 4.690 | 1.880 |
What's In The Box
What's In The Box
- Qty 1 - Mechanical Connector
