Description

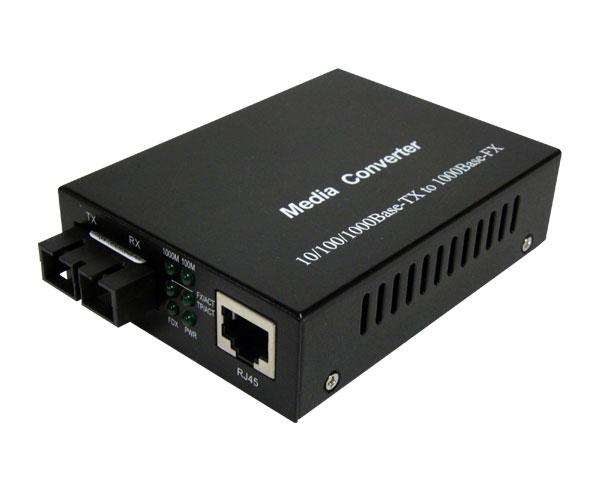

Media Converter, Gigabit Ethernet, 10/100/1000Base-TX RJ45 to 1000Base-FX Single Mode Duplex SC, 10km
The 10/100/1000M adaptive Gigabit Ethernet media converter is used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and fiber, while relaying across 10/100/1000 Base-TX and 1000 Base-FX network segments. Achieve high speed remote interconnection for long distance broadband Gigabit Ethernet needs.
Steady and reliable performance over a wide range of industries including: cable television, finance, military, power, railway, shipping, telecommunication, and water conservancy. Ideal for broadband campus networks, cable television, and intelligent FTTB/FTTH networks.

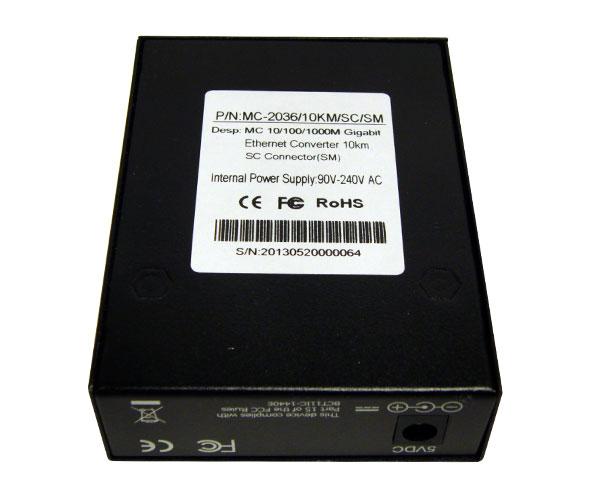

The MC-2036-10K/SC/SM is an auto-adaptation unmanaged media converter to interface between 10/100/1000BASE-TX RJ45 Ethernet and 1000BASE-FX Single Mode fiber.
Features
- Ethernet Standards IEEE802.3, 10/100/1000Base-TX and 1000Base-FX

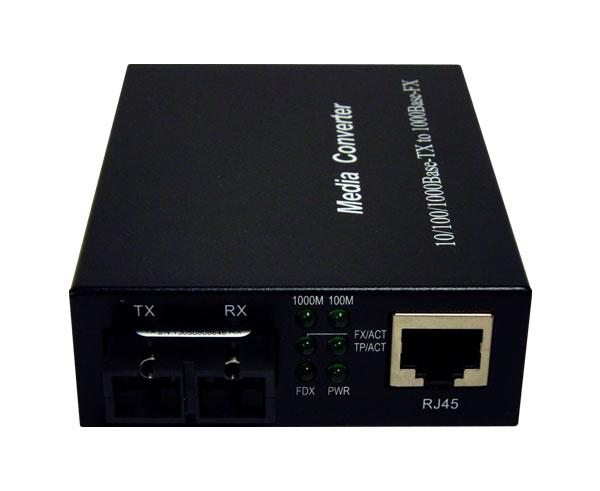

- Supported Ports: Duplex SC for Optical Fiber; RJ45 for Twisted Pair
- Auto-Adaptation Rate and Full/Half-duplex Mode Supported at Twisted Pair Port
- Auto MDI/MDIX Supported Without Need of Cable Selection
- Up to 6 LEDs for Status Indication of Optical Power Port and UTP Port

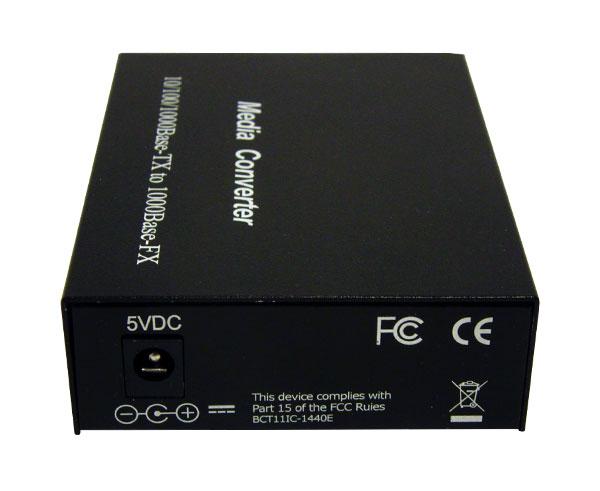

- External and Built-in DC Power Supplies Provided
- 128K Data Buffer RAM
- Supports Low-Delay Time Pure Data Transmission and Full/Half-Duplex Flow Control
- Built-in Watch-Dog Timer to Monitor any Error in Internal Data Exchange
- Supports Transmission Distance up to 10km
Applications
- Intranet Prepared for Expansion From 100M to 1000M
- Integrated Data Network for Multimedia Such as Image, Voice and Etc.
- Point-To-Point Computer Data Transmission
- Computer Data Transmission Network in a Wide Range of Business Application
- Broadband Campus Network, Cable TV and Intelligent FTTB/FTTH Data Tap
- In Combination With Switchboard or Other Computer Network Facilitates for: Chain-Type, Star-Type and Ring-Type Networks
Application Industries
- Intelligent Transport Monitoring System
- Safety and Security Monitoring System
- Campus Network
- Industrial Monitoring
- Military Monitoring
- TV Program Transfer System
Specifications
Technical Parameters
| Parameter | Specification |
|---|---|
| Power Supply | 100VAC or 220VAC +24VDC or -48VDC |
| Operation Temperature | -10°C~+70°C (Business Class) -30°C~+85°C (Industry Class) |
| Storage Temperature | -40°C~+105°C |
| Relative Humidity | 5%~90% (non-condensation) |
| Dimensions (W x D x H) | 95mm x 70mm x 26mm |
Optical Parameters
| Parameter | Specification |
|---|---|
| Fiber | 9/125, 8.3/125, 8.7/125, 10/125µm |
| Distance | 0~10km |
| Output Optical Power | -15~-8dBm |
| Receiving Sensitivity | <-32dBm |
| Connector | SC |
| Wavelength | 1310nm |
What's in the Box
- 1 Media Converter, Gigabit Ethernet, Single Mode Duplex SC, 10km
- 1 Power Adapter
- 1 User Manual
