Minimum and Maximum Order Lengths for Non-Freight Shipments:
|12 Fibers||24 Fibers||48 Fibers||72 & 96 Fibers|
|Min.||500ft. (152m)||500ft. (152m)||500ft. (152m)||Call For Quote|
|Max.||12,000ft. (3658m)||1,700ft. (518m)||1,500ft. (457m)||Call For Quote|
Note: Call or email us for a quote for all 12, 24, 48, 72 & 96 Single Mode fibers.
To request a quote email us or give us a call.
If you would like to inquire about our custom fiber cable options such as longer lengths, custom cut lengths, terminated ends, or pull eyes please call or email us.
Micro-Distribution Fiber Optic Cable, Single Mode, 9/125 OS2, Corning Fiber, Indoor, Riser OFNR

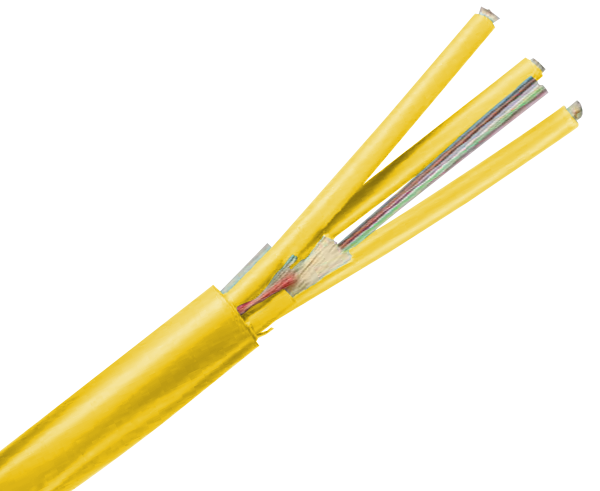

These 12-96 strand riser micro distribution fiber cables are composed of single tube or two to eight sub units, an optional central member, aramid yarn, an aramid ripcord, and a PVC outer jacket. Each sub-unit consists of up to 12 colored glass fibers surrounded by aramid yarn with a PVC jacket 2.95mm in diameter. All component materials meet the EU RoHS and REACH Directive standards. Sub-units can be color-coded or sequentially numbered upon request.
Micro-Distribution cable combines high fiber counts with a compact, space saving design. 2 to 12 colored bare fibers with aramid yarn are positioned in a 3 mm jacket. 6 tubes of 12 fibers are combined to make up to 72 fibers. Each subunit is numbered for ease of installation with riser and plenum rated construction available.
- 250um colored bare fibers.
- Smaller outer diameter for tight spaces.
- UL1666(Riser) and NFPA262(Plenum)
- Riser and plenum constructions
- Meets the application requirement of national Electric Code (NEC) Article 770 and is OFNR rated for riser cable and OFNP rated for plenum cable.
- Data centers.
- Ready for MTP connectors.
- High density installations.
- Ready to ribbonize.
Single Mode Fiber Information
Single mode fiber cable (Synonyms mono-mode optical fiber, single-mode fiber, single-mode optical waveguide, uni-mode fiber) is a single strand of glass fiber with a diameter of 8.3 to 10 microns that has one mode of transmission. Single mode fiber has a relatively narrow diameter, through which only one mode will propagate typically 1310 or 1550nm wavelengths. Single mode fibers carry higher bandwidth than multimode fiber, but require a light source with a narrow spectral width. Single-mode fiber gives you a higher transmission rate and up to 50 times more distance than multimode. The small core and single light-wave virtually eliminate any distortion that could result from overlapping light pulses, providing the least signal attenuation and the highest transmission speeds of any fiber cable type.
