This fiber cable is priced per foot with a minimum order length of 3,280ft.
Note: This item must ship freight and requires a shipping quote. To request a shipping quote email us or call us.
If you would like to inquire about our custom fiber cable options such as terminated ends, or pulleyes please call
Micro-Distribution High Density Fiber Optic Cable, Single Mode 9/125 OS2 24 Strand Plenum OFNP

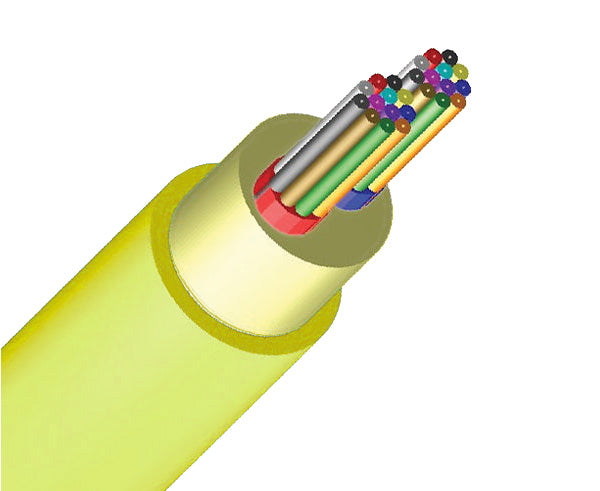

High Density Micro Distribution Cable is composed is composed of two contrasting color bound bundles of 12 colored glass optical fibers, aramid yarn, and a PVDF outer jacket. All component materials meet the EU RoHS and REACH Directive standards. High Density Micro Distribution Cable is available in 12 TIA standard colors or special-order colors. UL Listed OFNP cables are available, unrated cables may be supplied to accommodate special needs. Standard surface print denotes construction, NEC rating and fiber type, and includes footage markers. Custom print may also be accommodated.
- 250μm colored bare fibers
- Small O.D. for tight spaces
- Available in all fiber types
- Meets the application requirement of National Electric Code (NEC) Article 770
- Plenum Data centers.
Single Mode Fiber Information
Single mode fiber cable (Synonyms mono-mode optical fiber, single-mode fiber, single-mode optical waveguide, uni-mode fiber) is a single strand of glass fiber with a diameter of 8.3 to 10 microns that has one mode of transmission. Single mode fiber has a relatively narrow diameter, through which only one mode will propagate typically 1310 or 1550nm wavelengths. Single mode fibers carry higher bandwidth than multimode fiber, but require a light source with a narrow spectral width. Single-mode fiber gives you a higher transmission rate and up to 50 times more distance than multimode. The small core and single light-wave virtually eliminate any distortion that could result from overlapping light pulses, providing the least signal attenuation and the highest transmission speeds of any fiber cable type.
