Description

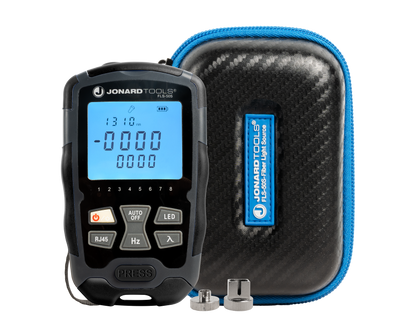

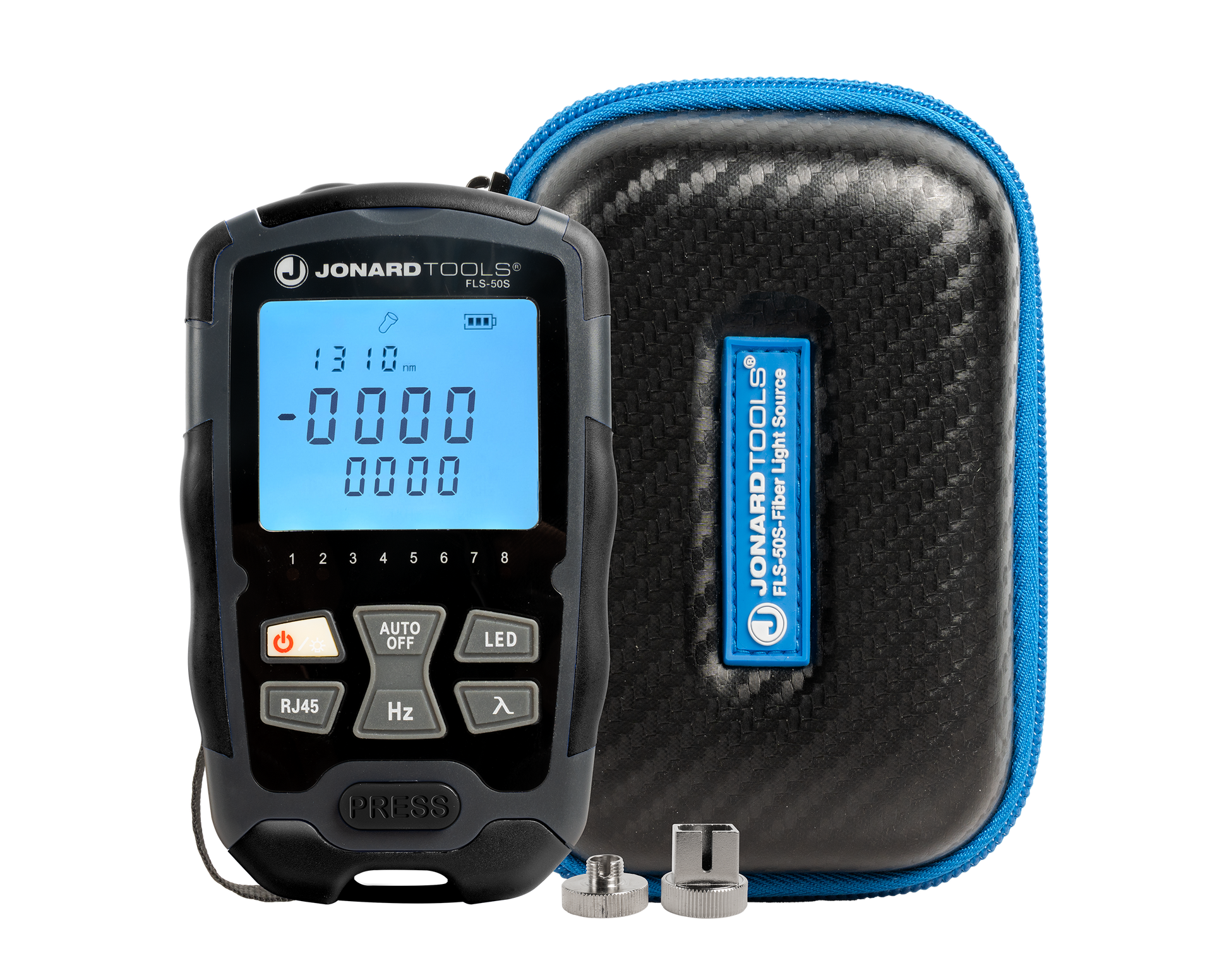

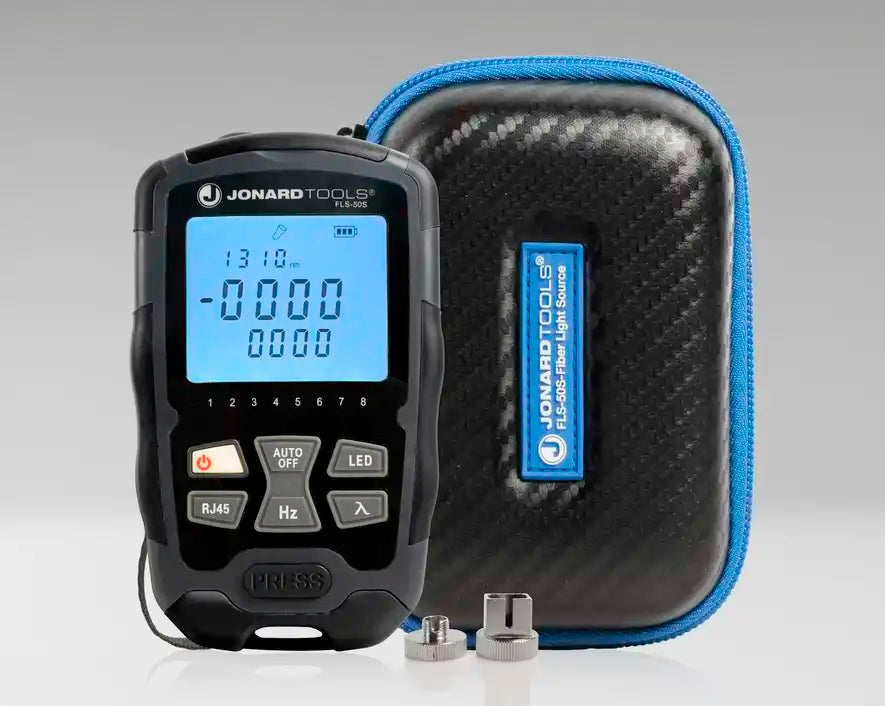

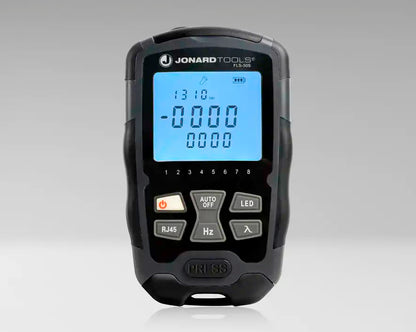

Mini Optical Light Source with FC/LC/SC Adapters for PC/UPC Connectors
Designed to provide either 1310 nm or 1550 nm wavelengths, this optical light source is the perfect tool for providing a stable light source for single-mode fiber measurements. It also features a built-in visual fault locator, network cable tester, and remote.

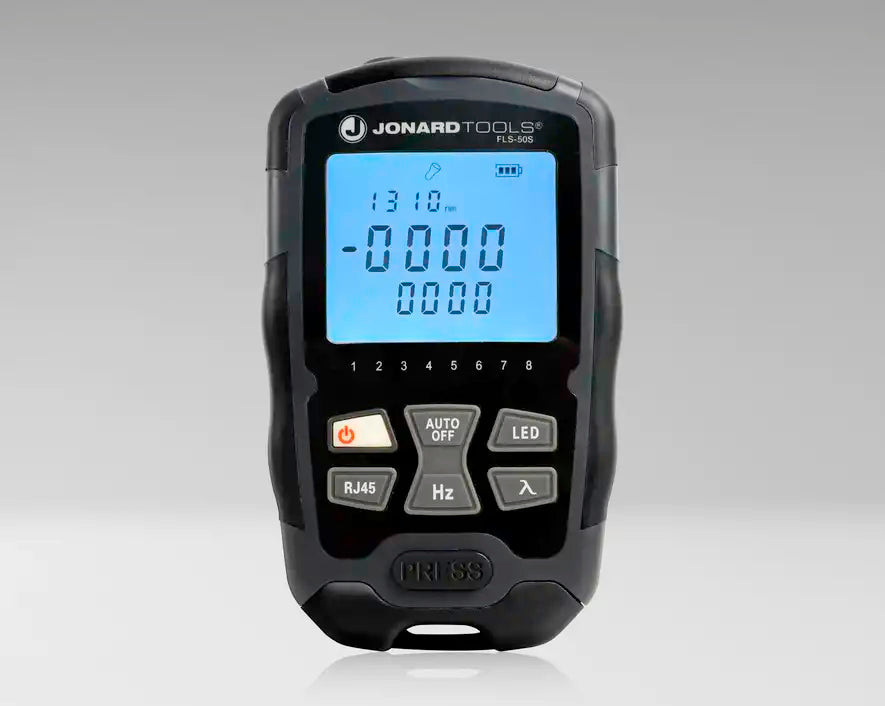

LED screen is backlit for viewing in low-light locations and a 10-minute auto-off helps preserve battery life Includes:
- Fiber Optic Light Source FC Adapter SC Singlemode Adapter FC-LC
- Singlemode Adapter (2) AAA Batteries (required for operation)
- Hard Case Includes FC, SC, and FC-LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors.
- Highly stable output power and wavelengths.
- Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 N-m and 1550 nm wavelengths.

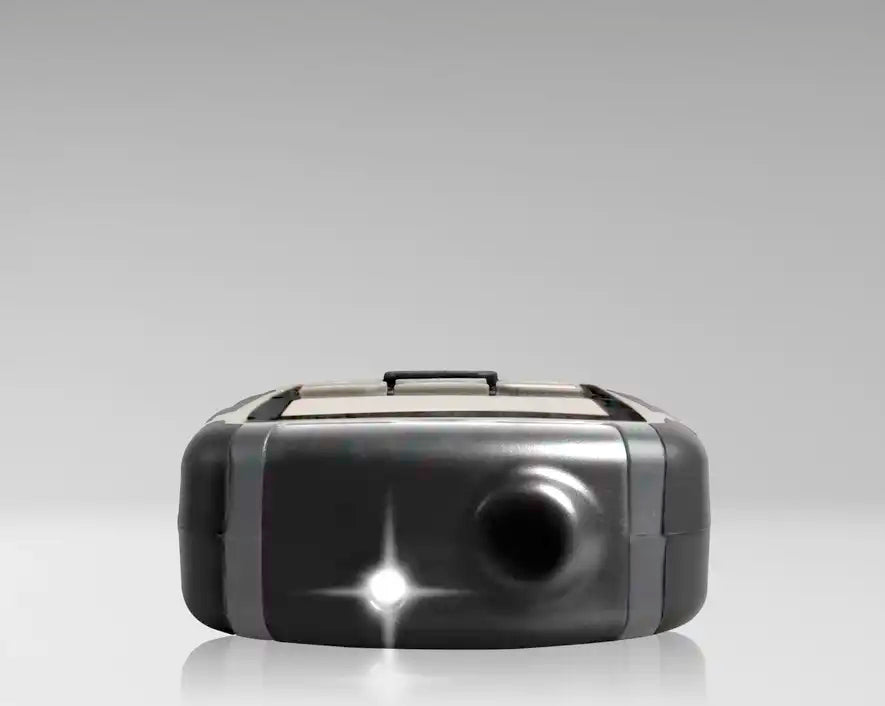

- Built-in 2 mW visual fault locator (VFL) identifies faults in fiber cable in a pinch.
Features
Features

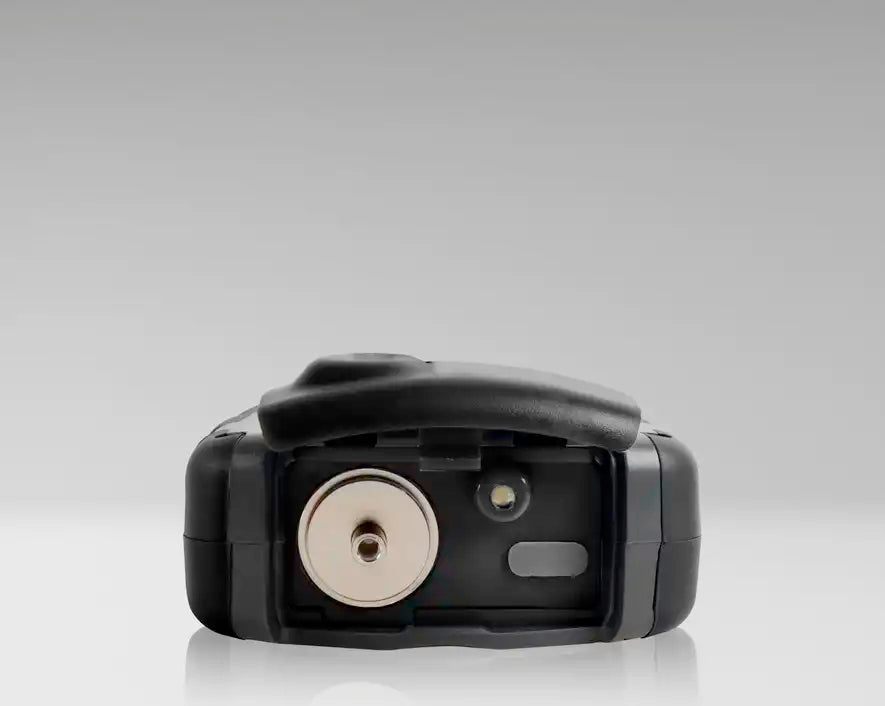

- Includes FC, SC, and FC-LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors.
- Highly stable output power and wavelengths.
- Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 N-m and 1550 nm wavelengths.
- Built-in 2 mW visual fault locator (VFL) identifies faults in fiber cable in a pinch.

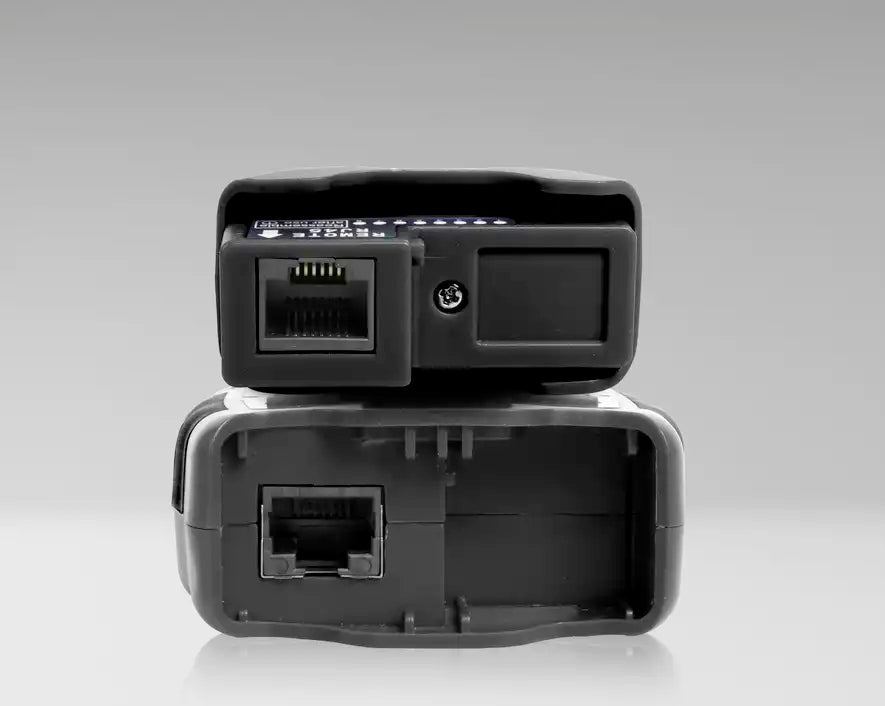

- Tests RJ45 connectorized network cables using built-in remote.
Specifications
| Specification | Description | |
|---|---|---|
| Connector Types | 1.25 mm LC and 2.5 mm FC/SC | |
| Wavelengths (nm) | 1310, 1550 | |
| Typical Output Power | -5 dBm | |
| Output Stability | ± 0.05 dB / 15 min or ± 0.1 dB / 8 hr | |
| Operating Temperature | -10 ± 60°C | |
| Spectral Width | ≤ 10 nm | |
| Modulation Frequencies | CW / 270 Hz / 1 kHz / 2 kHz | |
| Battery Type | (2) AAA 1.5V alkaline batteries | |
| Storage Temperature | -25 ± 70°C | |
| Dimensions | 4.5” x 2.63” x 1” (11.43 cm x 6.68 cm x 2.54 cm) | |
| Weight | 0.28 lb (127 g) | |
| UPC # | 810132438189 | |
Additional Information
| Product Videos | |
|---|---|
JONARD TOOLS MINI OPTICAL LIGHT SOURCE (FLS-50S) PRODUCT VIDEO |
What's In The Box?
What's In The Box?
- Qty 1 – FLS-50S Optical Light Source
- Qty 1 – User Manual

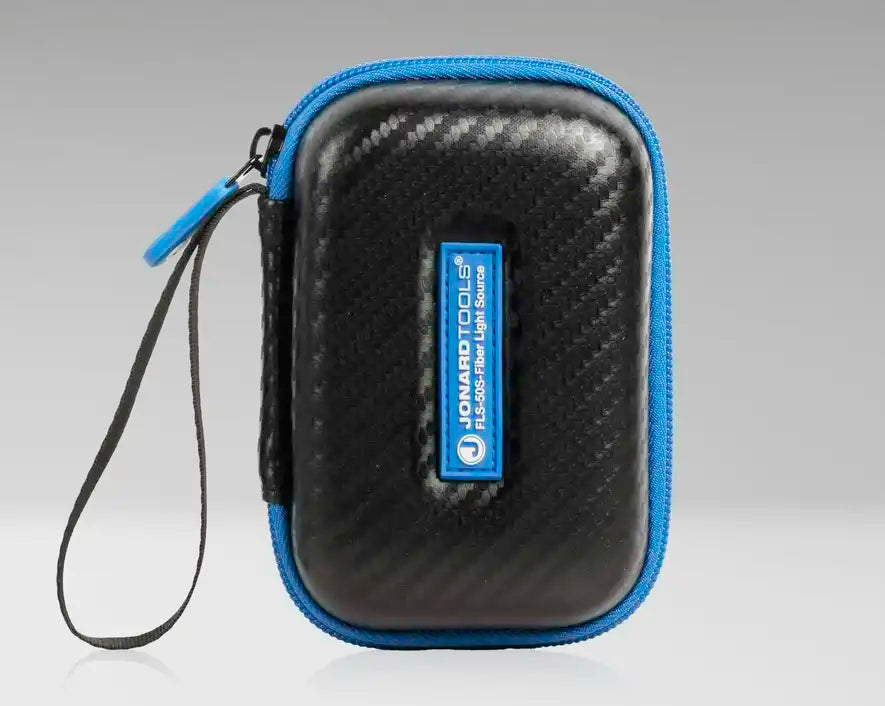

- Qty 1 – Storage Pouch
- Qty 1 – Set of Adapters (FC/SC/LC)
