MTP® Elite Cassette - 1x12 Fiber MTP/PC Elite-Male (With Pins), LC/UPC 12 Fiber, MM, 50/125um, OM3, Aqua Adapters, LGX Compatible, A-Polarity

Description

MTP ® Elite Cassette - 1x12 Fiber MTP/PC Elite-Male (With Pins), LC/UPC 12 Fiber, MM, 50/125um, OM3, Aqua Adapters, LGX Compatible, A-Polarity

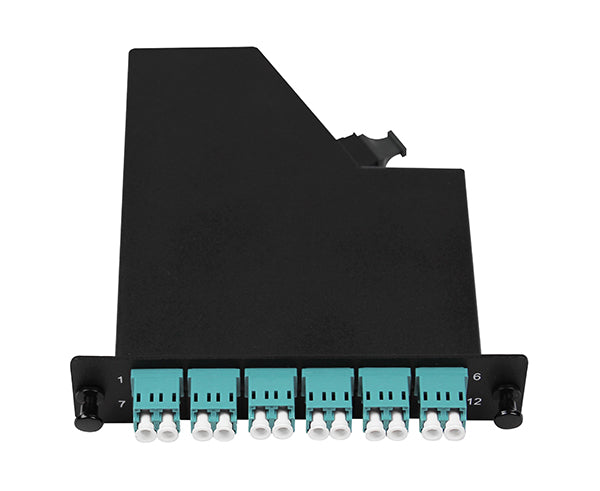

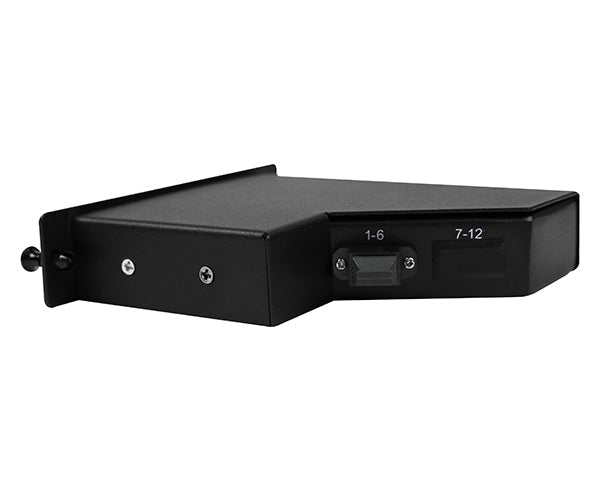

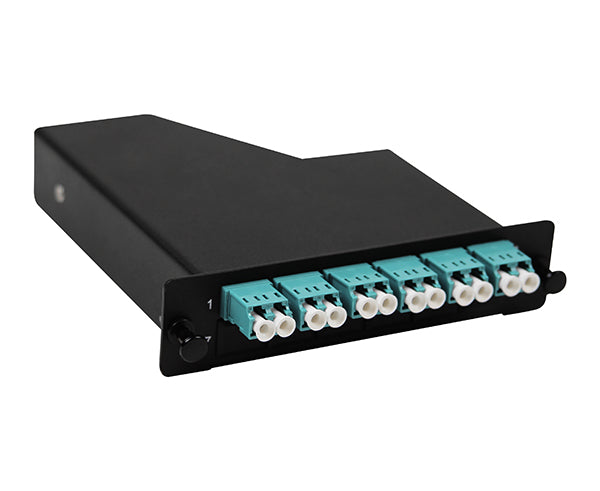

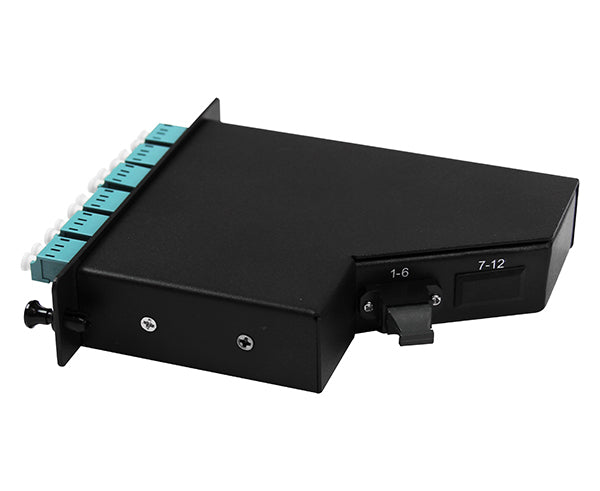

This 12 fiber MTP® Elite-to-LC Cassette is built specifically for High Density Fiber Cable Data solutions. This MTP® Elite Cassette comes pre-terminated with (1) 12 Fiber Male MTP® Elite connector on the back side, and 12 separate LC connectors on the front panel. Inside the MTP® Elite cassette there is fan out (or breakout) cable assembly from the LC connector in the front, to the MTP® Elite connector in the back, giving a quick and easy plug-and-play data solution. This cassette uses a physical contact connector with ultra low insertion loss (MTP®  Elite Cables reduce the amount of insertion loss by up to 50% when compared to standard MTP® Elite connectors and traditional MPO connectors).

From the front of your cassette you may patch out with standard duplex (or simplex) fiber optic patch cables to your equipment such as an SFP module or fiber optic media converter. The cassette can be installed in either a vertical or a horizontal MPO cassette holder.

The use of our MTP® Elite cassettes in the data center offers the advantage of greater manageability and amiability with a modular infrastructure. It also allows for rapid deployment of fiber optic cabling in data centers, corporate campuses, or any high density installation. As future connectivity requirements change, cassettes can be easily exchanged to meet those needs, while leaving the existing trunk cable infrastructure in place. These cassettes are designed to fit our standard LGX termination box enclosures.

Applications:

• Data Centers
• Server Connectivity
• Link Aggregation
• Fiber Optic Network Infrastructure

Benefits

• Rapid Deployment of High Density Fiber
• MTP® Elite Components Feature Superior Optical and Mechanical Properties
• Reliability - 100% tested - a combination of high-quality components and manufacturing quality control guarantees the product to the highest standards.

Features

Features

• MTP® Elite to Duplex LC Connections

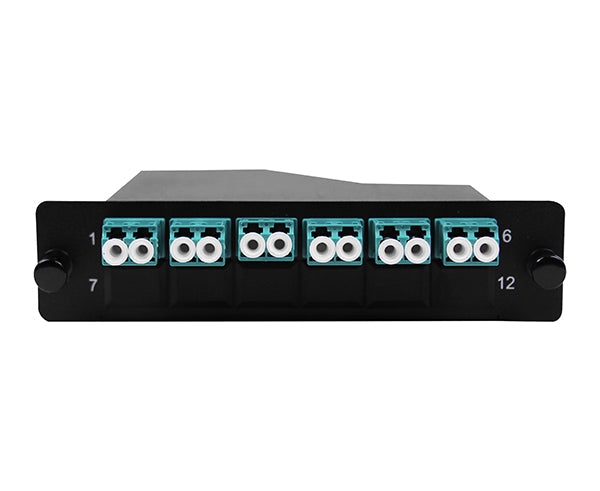

• 12 LC (6 Duplex) Port on the Front

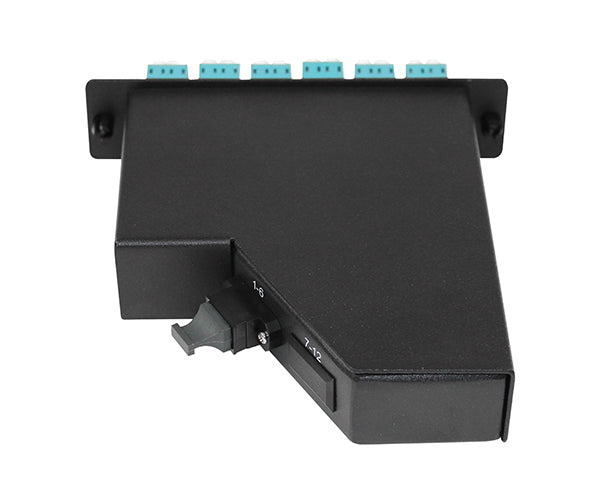

• (1) 12 Fiber Male MTP® Elite Connector on the Back
• MTP® Elite: Ultra Low Insertion Loss
• LGX footprints
• LGX Pin Spacing
• MTP® Elite Gender: Male
• Method A Type Polarity
• Multimode OM3 50/125 Fiber Type
• PC Polish Type
• Quick and Easy Plug-and-play Data Solution
• RoHS Compliant

Specifications

Specifications

Width: 5.12" (130mm)
Height: 1.14" (29mm)
Depth: 5.06" (128.6mm)

	FB36-6153R3	FB36-6260R6	FB36-6386R12
Unit Size	1U	2U	4U
Dimension	1.75” x 17” x 14”	3.50” x 17” x 14”	6.93” x 17” x 14”
Panel Material	16 Gauge Steel	16 Gauge Steel	16 Gauge SPCC Steel
Panel Capacity	3 LGX Adaptor Panels	6 LGX Adaptor Panels	12 LGX Adaptor Panels
Max. Fiber Count	72 Fibers	144 Fibers	288 Fibers
Accessibility	Slide out tray	Slide out tray	Slide out tray
Integrated Cable Management	✓	✓	✓
Slack Management Spool	—	✓	✓
Pre-Termination Option	✓	✓	✓
Compatible With	FB24 adapter panel inserts FB25-6196STP36 splice tray FB43-1300-12FSM MTP® Elite Cassette FB43-1301-12FMM MTP® Elite Cassette	FB24 adapter panel inserts FB25-6196STP36 splice tray FB43-1300-12FSM MTP® Elite Cassette FB43-1301-12FMM MTP® Elite Cassette	FB24 adapter panel inserts FB25-6196STP36 splice tray FB43-1300-12FSM MTP® Elite Cassette FB43-1301-12FMM MTP® Elite Cassette

Additional Information

MTP® Elite High-Density Cassettes

A cassette is a packaged, pre-terminated cabling assembly that transitions from multi-fiber cables and array connectors to traditional single-fiber connectors. Our cassettes are fitted with 12 or 24 LC Connections on the front and one or two 12-fiber MTP® Elite/MPO adapters on the back depending on if they are 12 or 24 fiber. The type of adapter mounted at the rear of a cassette defines it as either a Type A or Type B MTP® Elite/MPO modular cassette.

Type A Cassette

Type A MTP® Elite/MPO cassette uses a “key up to key down” adapter connection between the internal MPO/MTP® Elite Elite connector and the MPO/MTP® Elite array cable connector.

Type B Cassette

Type B MTP® Elite/MPO cassette uses a “key up to key up” adapter connection between the internal MPO/MTP® Elite connector and the MPO/MTP® Elite array cable connector.

Note: Method A cassette works for both single-mode and multimode channels, while there is a limitation of Method B cassette: it doesn’t allow the use of an angled polished (APC) single-mode connector.
