This is a custom cable and is non-cancellable and non-returnable.
Custom MTP® breakout cables including polarity, custom lengths, jacket colors and other options are available upon request. To find out more information, please call us or email us.
Description
Description

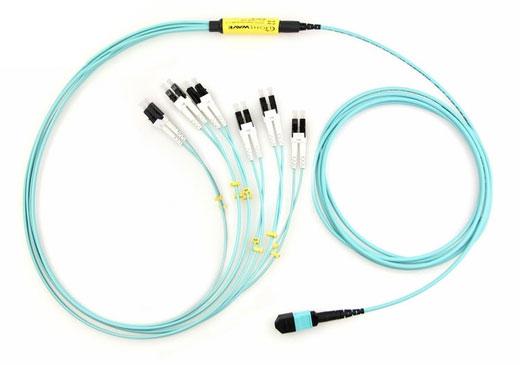

MTP® Breakout Harness Cable, MTP® to LC, Multimode 50/125 10 Gig OM3, 12 Fiber, Plenum, Type A
These high speed multimode 50/125um OM3 MTP® breakout cables are terminated with female MTP® fiber optic connectors on one end that breaks out to 12 fiber LC connectors on the other end. The MTP® ("Multifiber Termination Push-on") connector is a multifiber connector developed by USConec that contains up to twelve optical fibers within a single ferrule.
Each one of the MTP® cables contain 12 fibers or 6 duplex channels in a connector smaller than most duplex connections in use today. MTP® fiber cables are designed as a high-performance version of the MPO style cable and will interconnect with MPO connectors.
Called Lucent Connectors, Little Connectors or Local Connectors, these LC snap-in connectors are typically used for high density connections and are compatible with plug-and-play devices such as SFP modules and XFP transceivers.
Features
Features
- OM3 Multimode 50/125 type Fiber
- Single 12 fiber female MTP® to 6 duplex (12 fibers) LC Connectors
- Standard Polarity is Type A (Type B is available upon request)
- 24" breakout length (Custom lengths are available upon request)
- Plenum OFNP Rated
What's in the Box
What’s in the Box
- Qty 1 - Female MTP 12 Fiber Breakout Cable, Multimode OM3 50/125, Plenum OFNP Rated
- Qty 12 - LC Simplex Male Fiber Optic Connectors
- Qty 1 - Plenum OFNP Rated Aqua Jacketed Cable with 12 individual simplex breakout cords
- Qty 1 - Packaging (box or bag)
