Description

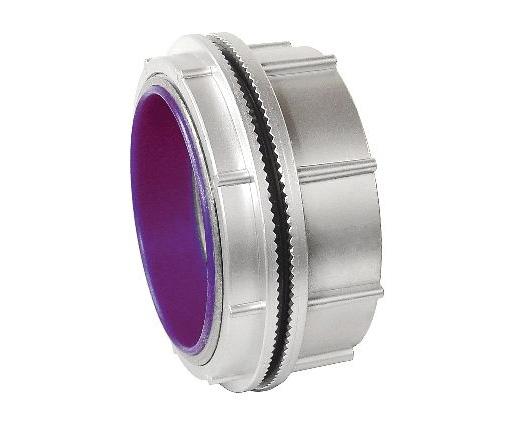

Myers Hub, Die Cast Zinc

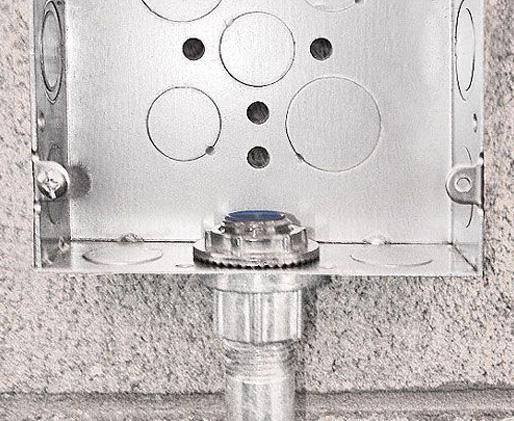

Standard watertight hubs are used with threaded rigid or IMC conduits to connect and bond them to threaded openings in boxes or enclosures. Primus Cables’ die cast zinc watertight hubs may be used in both wet and dry locations. Primus Cables’ watertight hubs have a rugged metallic construction to ensure mechanical protection and durability. The watertight hubs also have an insulated throat to protect wires and reduce the effort of pulling wires. Primus Cables’ watertight hubs also feature an O-ring to provide a rain-tight seal on electrical boxes or enclosures.
Features
Features
- Used in both wet and dry locations
- Material: 316 stainless steel
- Insulated throat to protect wires and reduce the effort of pulling wires (Insuliner)
- Feature an O-ring to provide a rain-tight seal on electrical boxes or enclosures
Specifications
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| PART # | UNINSULATED OR INSULATED | SIZE |
| WH50-SS | INSULATED | 1/2" |
| WH75-SS | 3/4" | |
| WH100-SS | 1" | |
| WH125-SS | 1-1/4" | |
| WH150-SS | 1-1/2" | |
| WH200-SS | 2" | |
| WH250-SS | 2-1/2" | |
| WH300-SS | 3" | |
| WH350-SS | 3-1/2" | |
| WH400-SS | 4" | |
What's in the Box
What’s in the Box
- Qty 1 - Myers Hub (die-cast zinc construction)
- Qty 1 - O-ring gasket (for rain-tight seal)
- Qty 1 - Locknut (for securing the hub to enclosures)
