Description

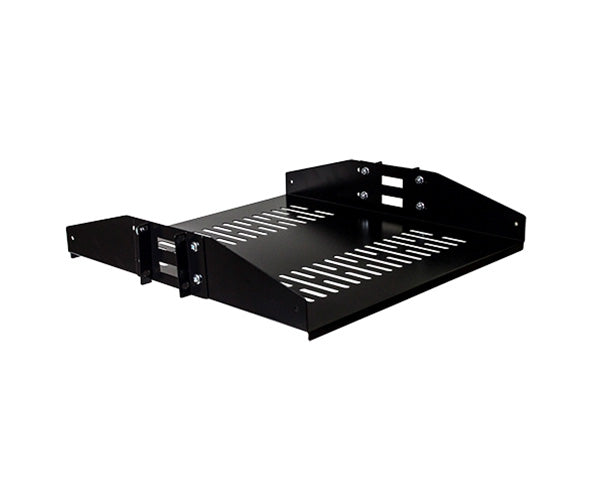

Network Rack, 22" Sliding Shelf, 1U
This 1U shelf conveniently slides out of the cabinet or rack for easy access to non-rack mountable equipment. The durable construction and 16 gauge cold rolled steel provide 66 lbs of loading capacity, while the vented design promotes airflow to keep equipment running cool.
- Compatible with Primus Cable network and server cabinets
- Mounting depth adjustable from 24” to 34”
- Locking slide rails prevent the shelf from sliding completely out of the cabinet
- 13.5” of sliding travel
- 22” deep shelf surface
- Includes mounting hardware (8 sets of 10-32 screws and washers)
Features
Features
- Compatible with all Primus Cable network and server cabinets
- Mounting depth adjustable from 24” to 34”
- Locking slide rails prevent the shelf from sliding completely out of the cabinet
- 13.5” of sliding travel
- 22” deep shelf surface
- Includes mounting hardware (8 sets of 10-32 screws and washers)
Specifications
Specifications
| Product Type | Sliding Shelf |
| Material | 16 Gauge Cold Rolled Steel |
| Finish | Black Powder Coated |
| Loading Capacity | 66 lbs |
| Dimensions (HxWxD) | 2" x 19" x 22" |
| Rack Unit Qty | 1U |
| Mounting Hardware | Included |
| Compliance & Standards | RoHs Compliant |
| Quantity Per Package | Sold Individually |
What's in the box?
What's in the box?
- Qty 1 - 22" Sliding Shelf, 1U Network Rack
