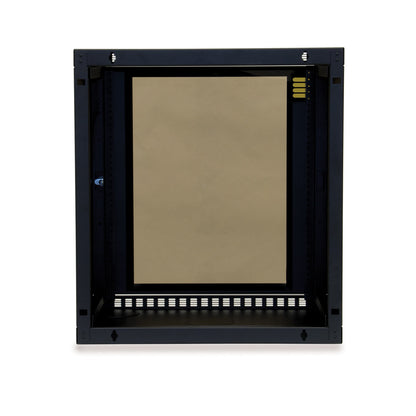

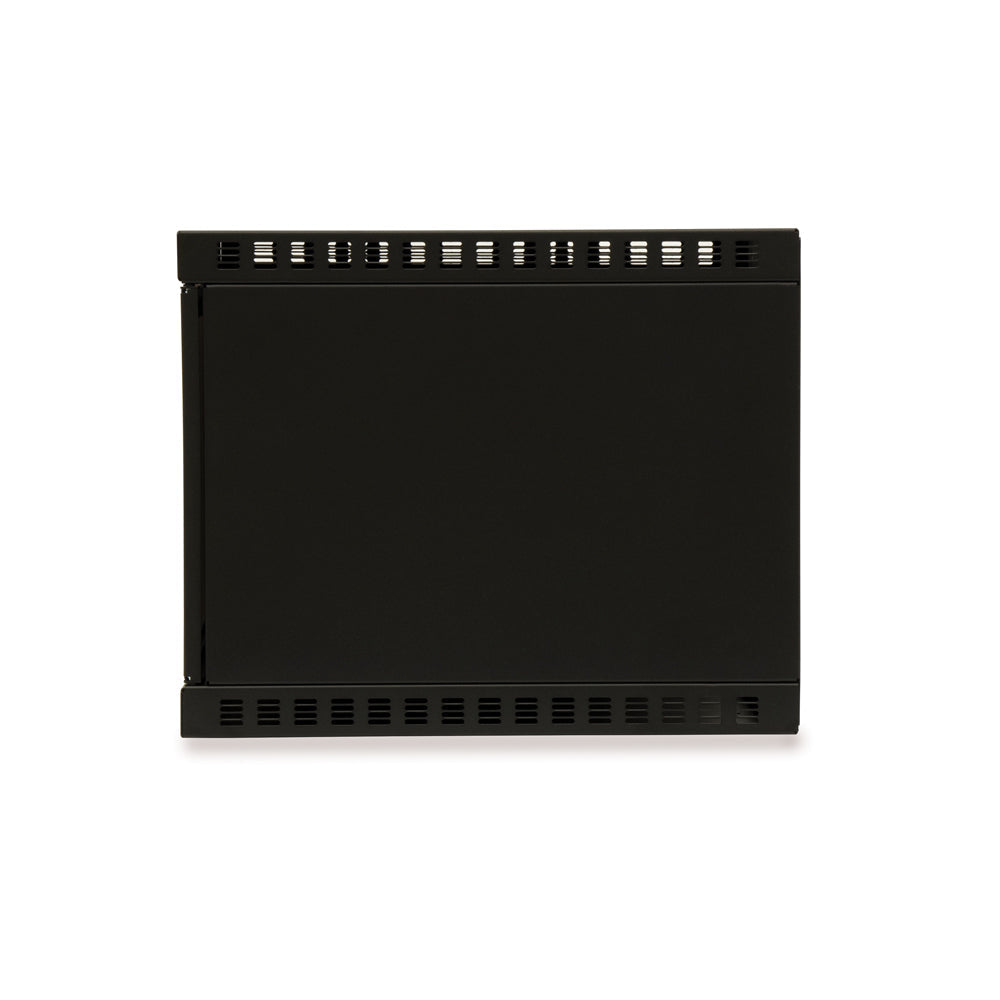

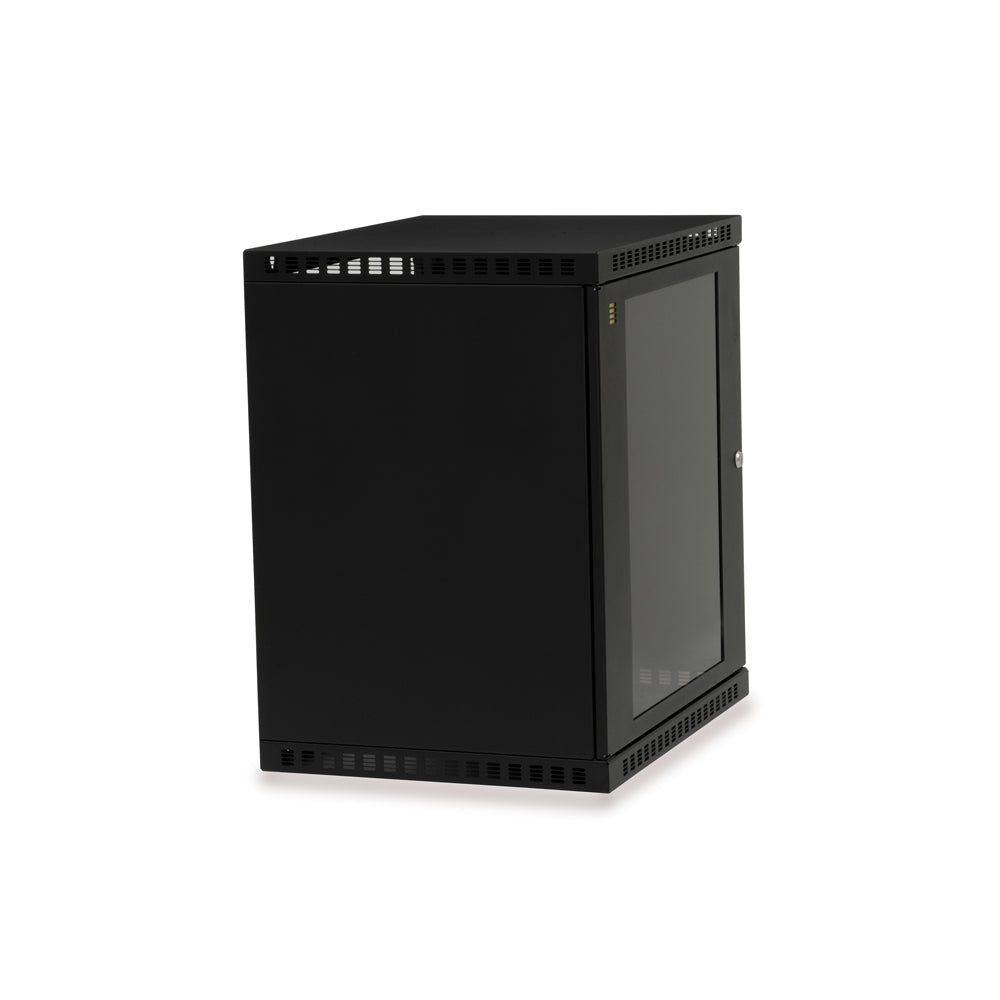

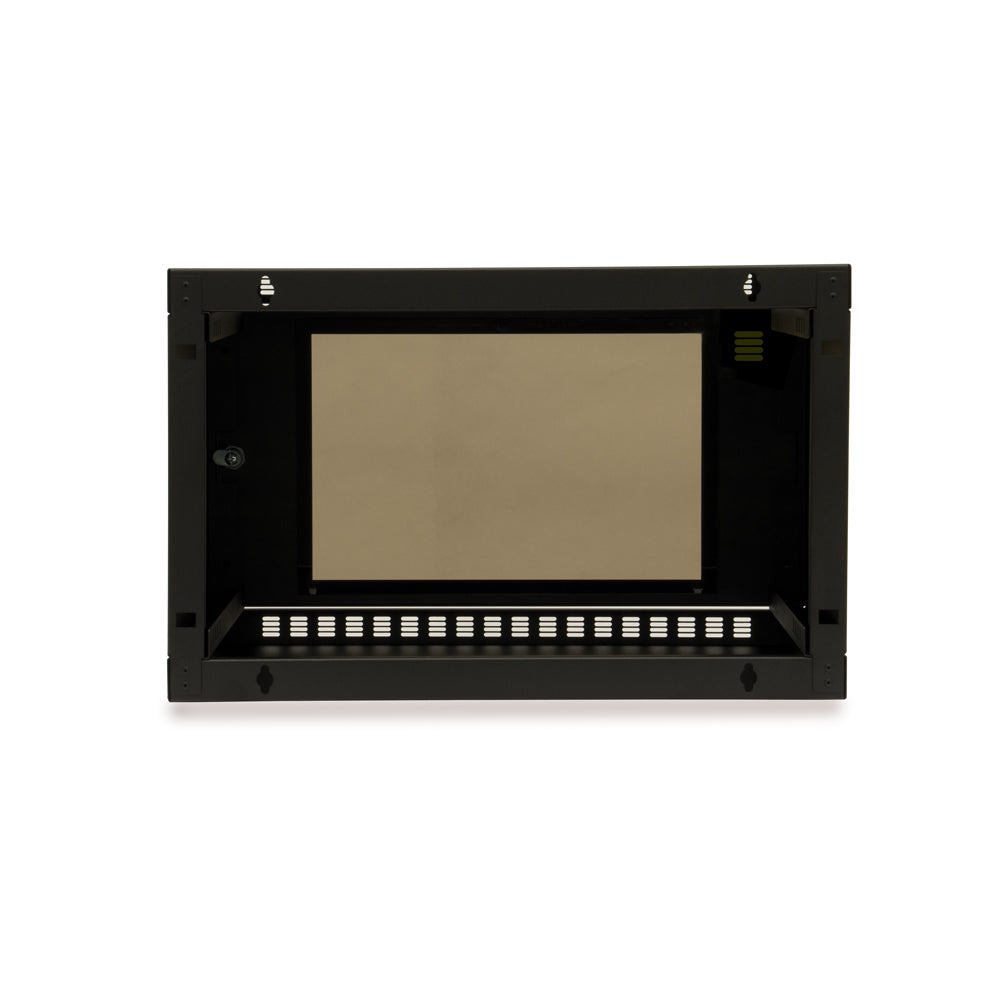

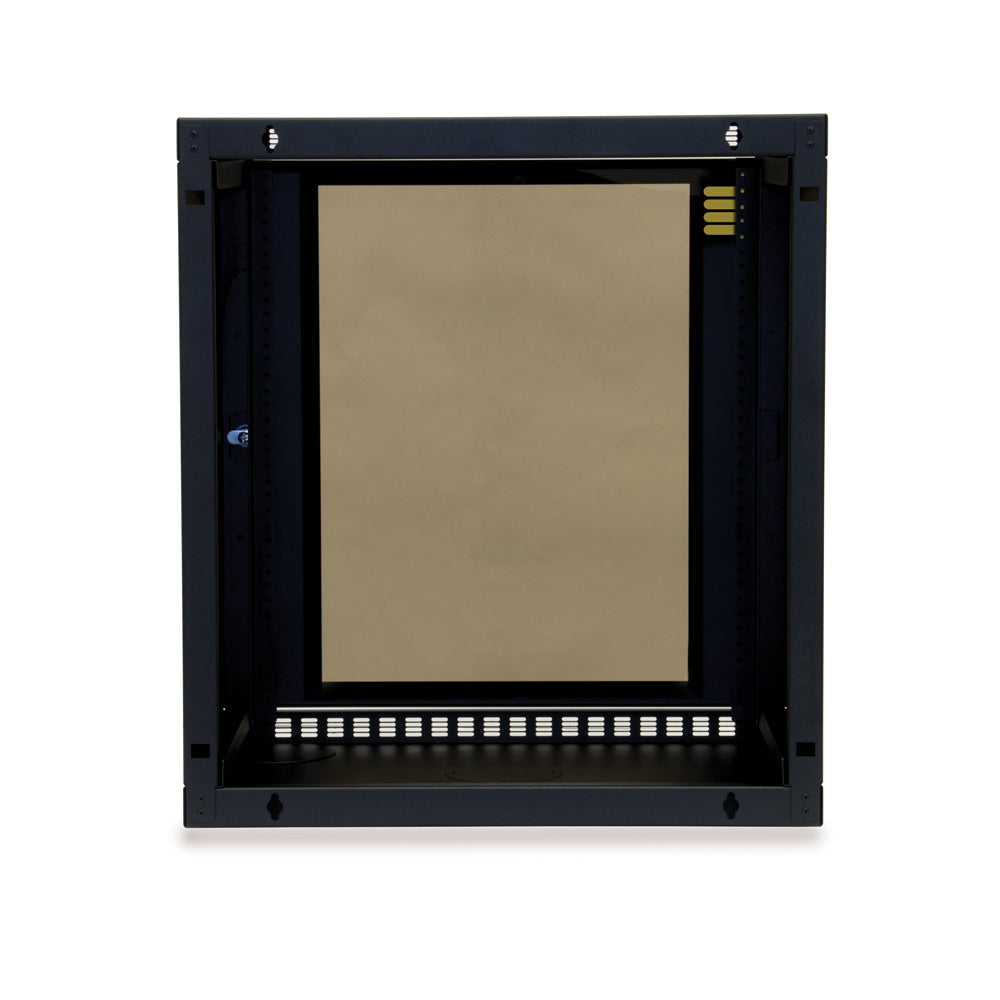

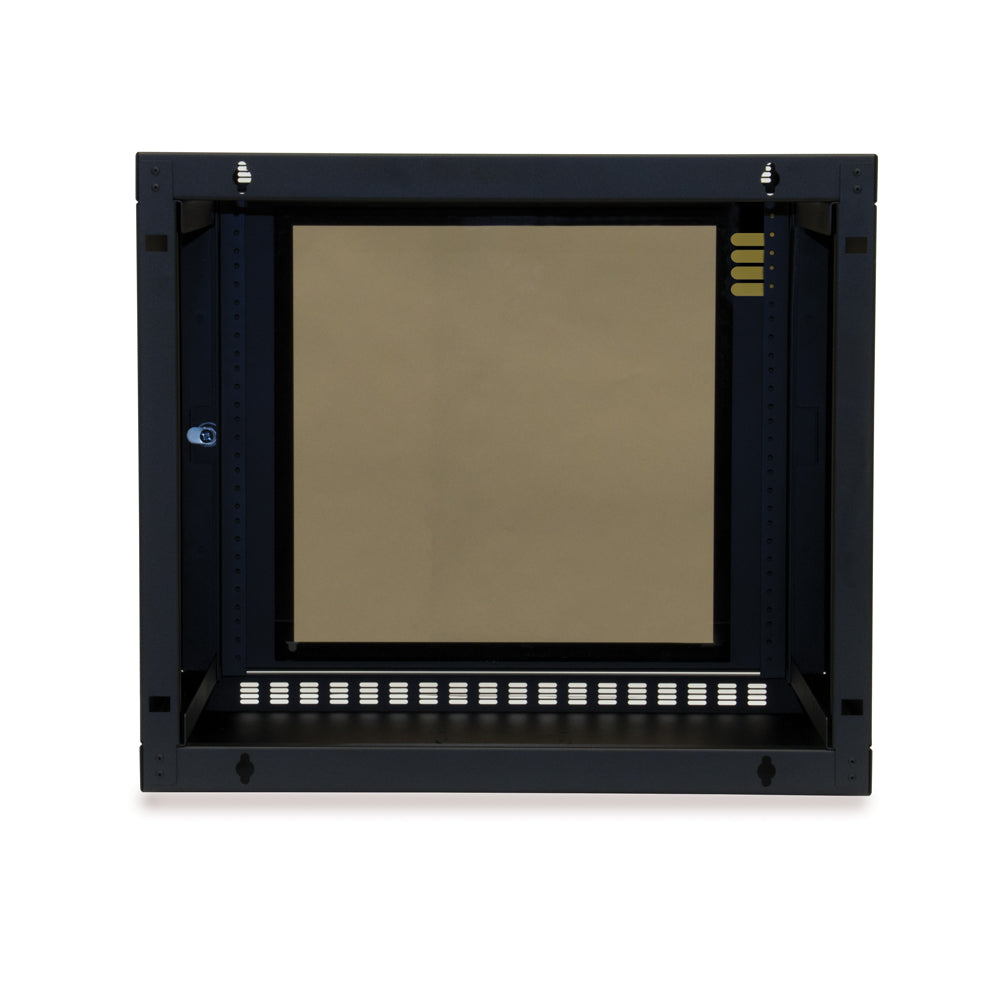

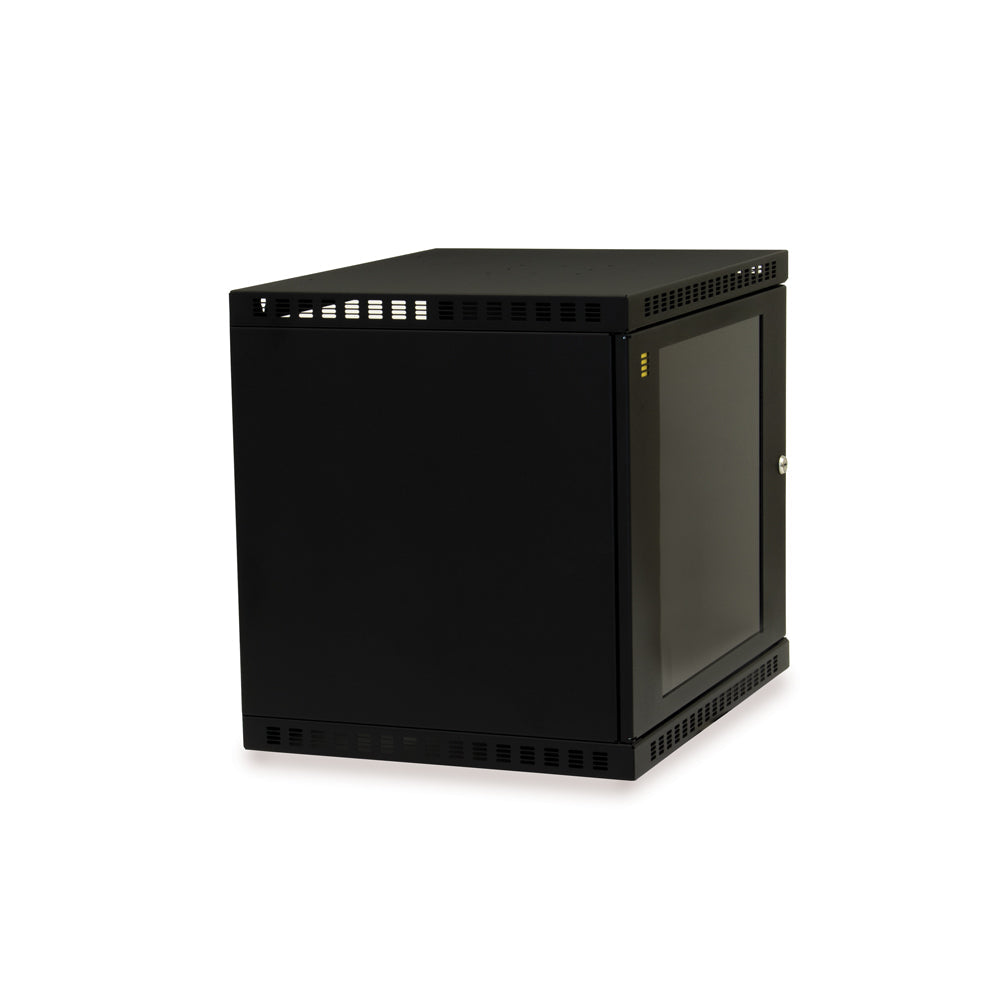

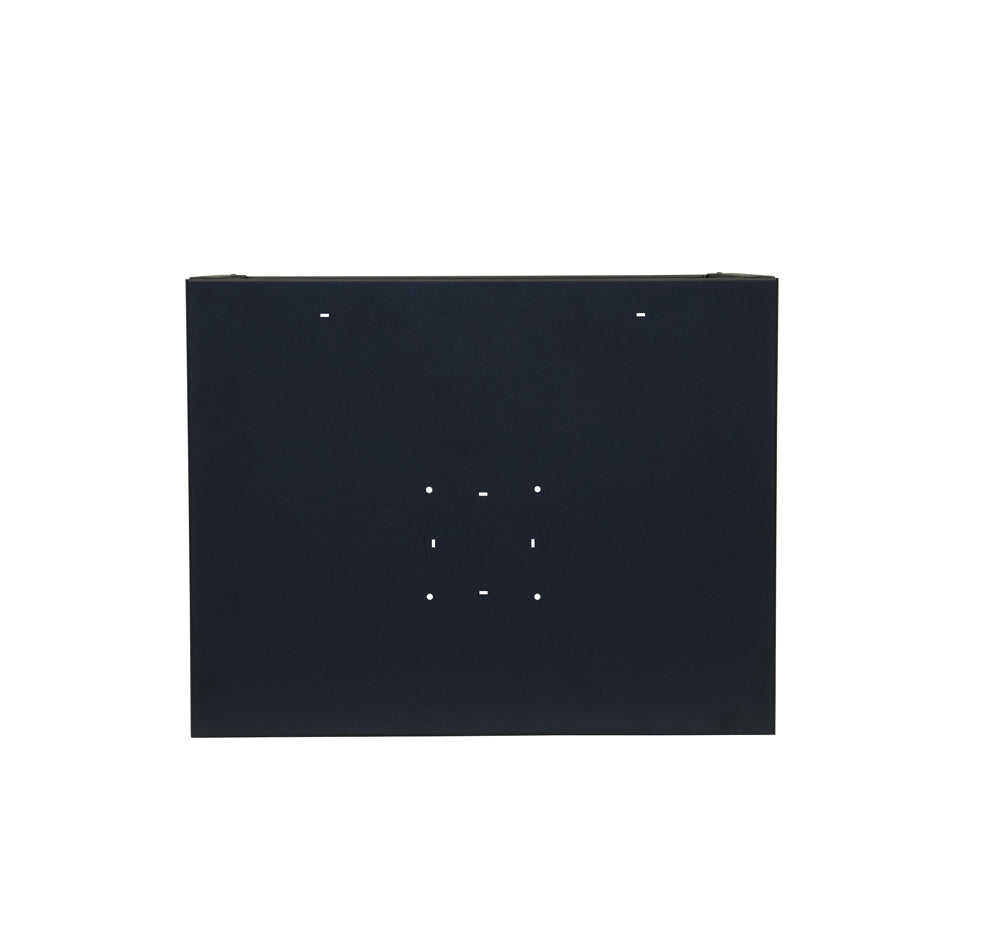

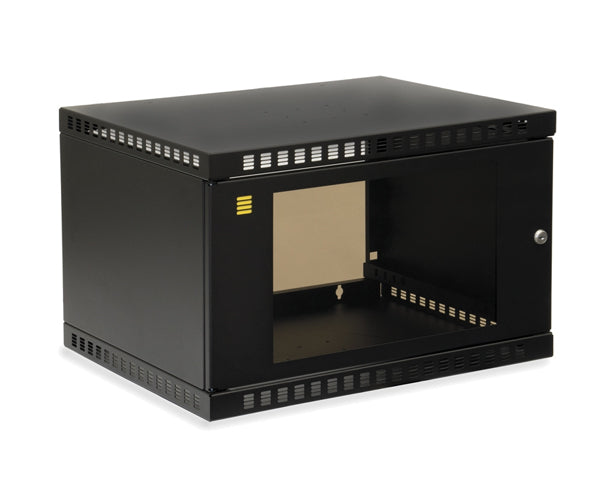

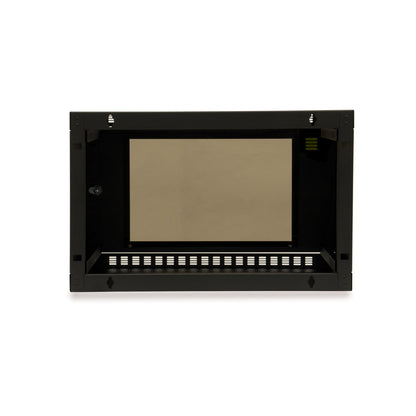

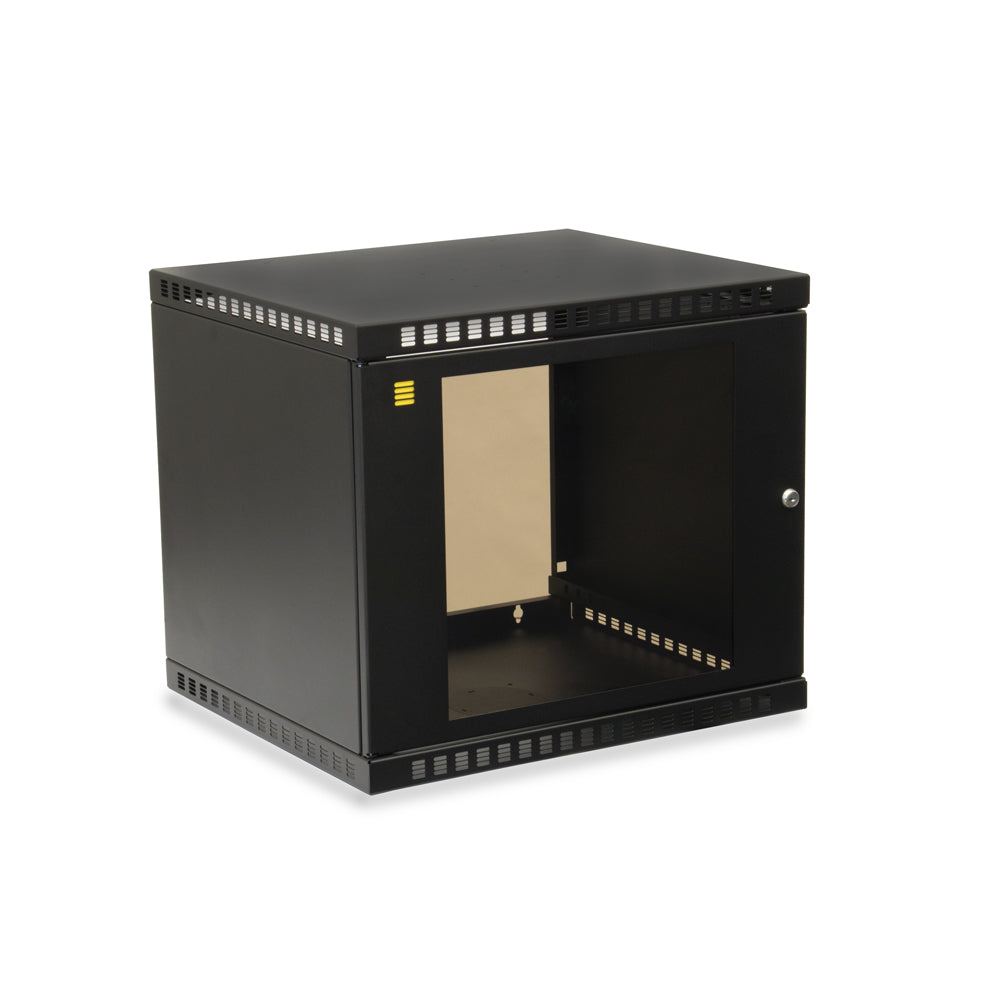

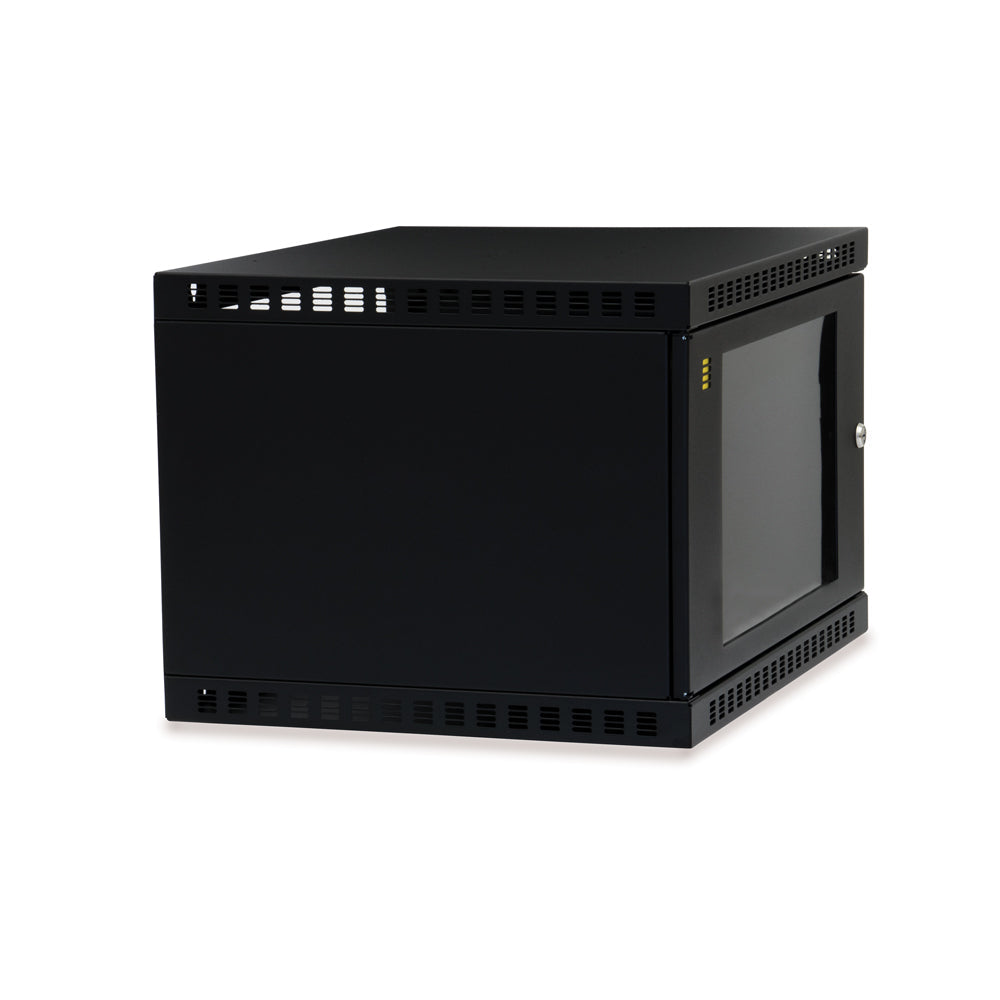

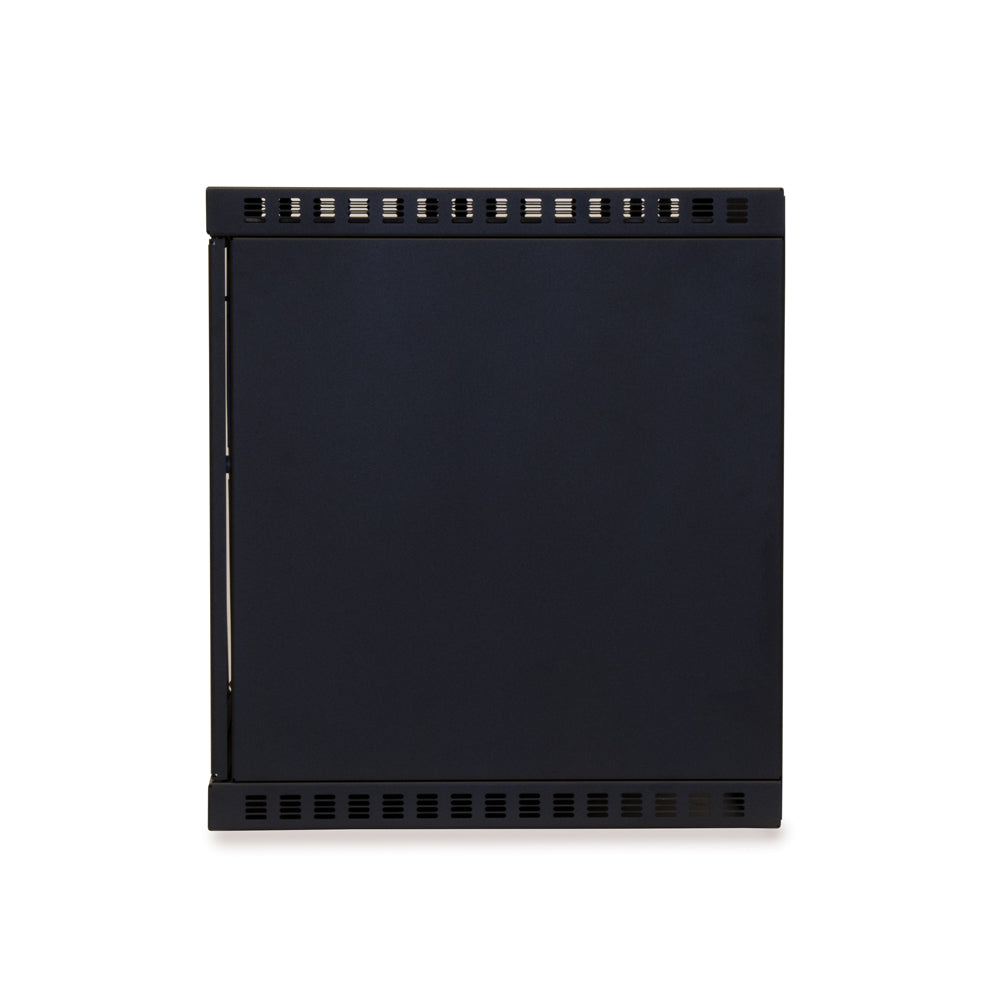

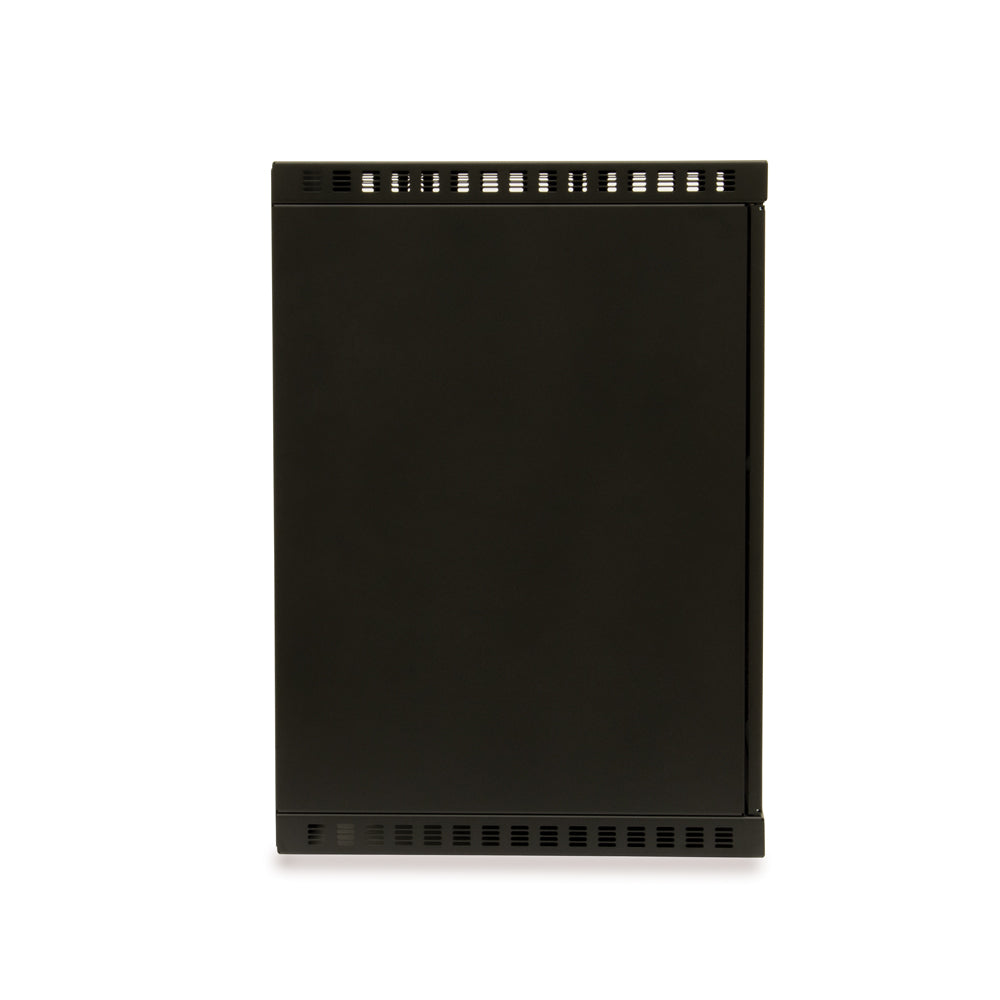

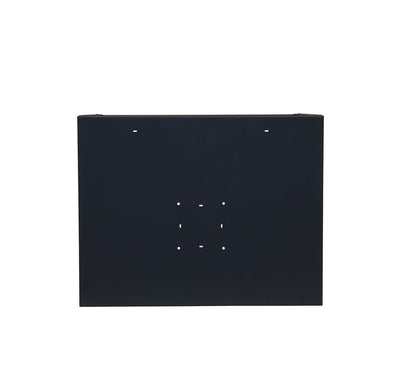

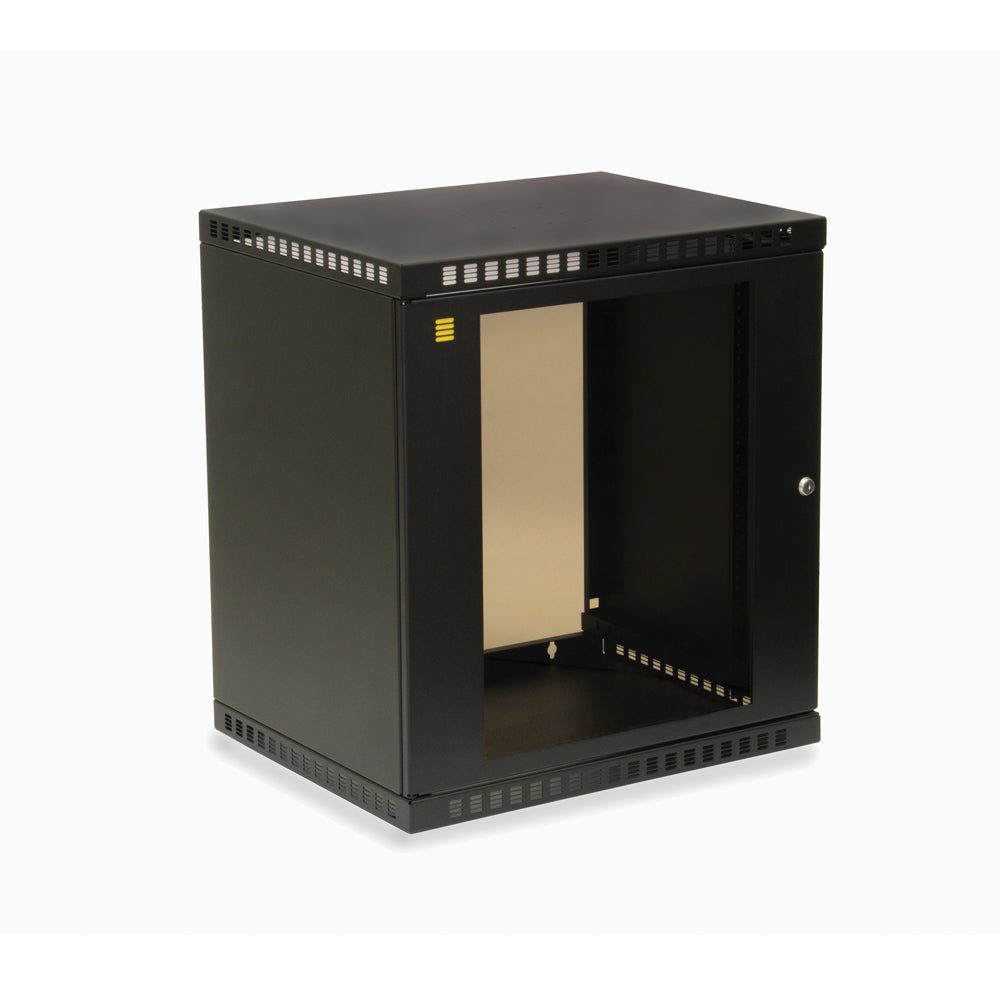

Shallow Depth Wall Enclosure
The Kendall Howard Shallow Depth Wall Mount Cabinets are the perfect solution for network and security installations of equipment at or under 16" deep. The Shallow Depth Line of Wall Mount Cabinets provide a heightened level of security in a robust welded frame and is offered in three sizes (6U, 9U, & 12U). Keep your valuable networking and security equipment under lock and key in a Kendall Howard Shallow Depth Cabinet.
- 150 lbs. weight capacity
- Adjustable 10-32 tapped rails
- 16.82" maximum usable mounting depth
- Locking acrylic door
- Solid sides
- Hanging bracket for ease of installation
- Welded frame construction
- 19" EIA Compliant
- Made in the USA
- Limited Lifetime Warranty
- Solid, Secure Enclosure - Made of Cold Rolled Steel and has a welded frame. Solid side panel and a locking front door.
- Cable Knockouts - Two cable knockouts on top and two cable knockouts on the bottom panel.
- Fan Knockout - Knockouts on top and bottom to accommodate a 120 MM fan.
- Adjustable Tapped Rails - 1 set of adjustable tapped rails. Adjust in 1" increments. Max usable depth, 16.82".
- Easy to Hang on the Wall - Hanging bracket included making it easy for a one person install. Hanging bracket is to help assist mounting to the wall. See instruction manual.
|Height||14.35" (6U), 19.60" (9U), 24.85" (12U),|
|Weight||32.00 lbs. (6U), 38.00 lbs. (9U), 43.00 lbs. (12U),|
|Material(s)||CRS (Cold Rolled Steel)|
|Color/Finish||Black Powder Coated Finish|
Fixed Wall Mount Enclosure Accessories
Wall mount racks and enclosures are a cost effective solution for protecting your server equipment from physical damage, as well as protecting it from tampering. We offer a variety of fixed wall mount racks and adjustable rail kits to help you protect and organize your data network.
To learn more about our Fixed Wall Mount Enclosures please visit our overview page. Kendall Howard's Server Enclosures can be combined with a wide array of products such as:
What's in the box?
What's in the box?
- Qty 1 - Shallow Depth Wall Mount Cabinet
- Qty 1 - Hanging Bracket Kit
- Qty 24 - 10-32 Rack Screws
