Neutral Connectors 225A 600 VAC

Neutral Connectors 225A 600 VAC

Primus Cable

NPNB-1012

Connector
Price: $33.69
Price: $33.69
*Shipping calculated at checkout
Sale Sold out
View full details

Description

Neutral Connectors 225A 600 VAC

Primus Cables’ Connectors are stacked neutral assemblies offer the ultimate in compact design and performance. Wire holes are stacked to minimize width. One-piece construction provides superior mechanical performance.

Features

  • These stacked neutral assemblies offer the ultimate in compact design and performance.
  • Wire holes are stacked to minimize width. One-piece construction provides superior mechanical performance.
  • Made from high strength 6061T-6 aluminum alloy.
  • Options include a 350 mcm main lug and a high strength, glass-filled polyester mounting base for isolated mounting.
  • Available in 12 to 42 wire holes (4-14 awg).

        Specifications

        Part No. No. Of 4-14 AWG Circuits Main Lug Size Mounting Base Length (In.) Height (In.) Width (In.)

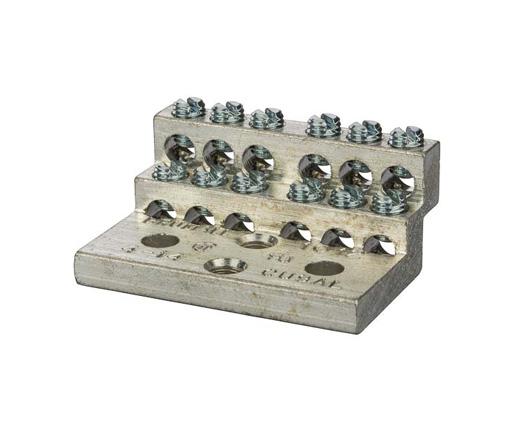

        NPNB-1012 12 None No 2.068 0.875 1.500

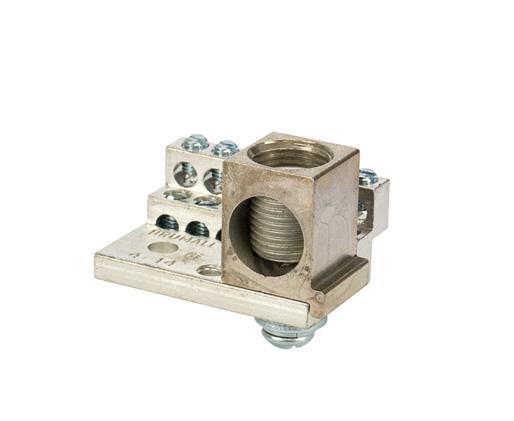

        NPNB-1012M 12 350-6 No 2.193 1.375 1.500

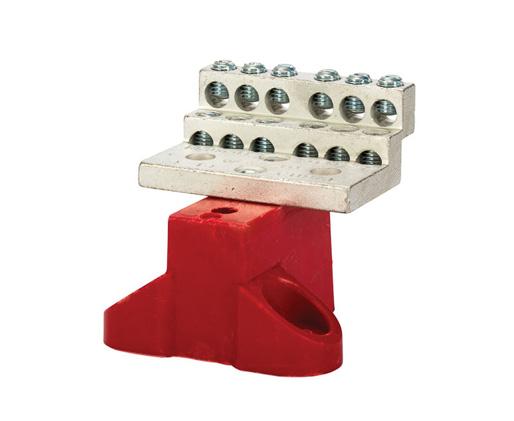

        NPNB-1012B 12 None Yes 2.068 2.250 2.250

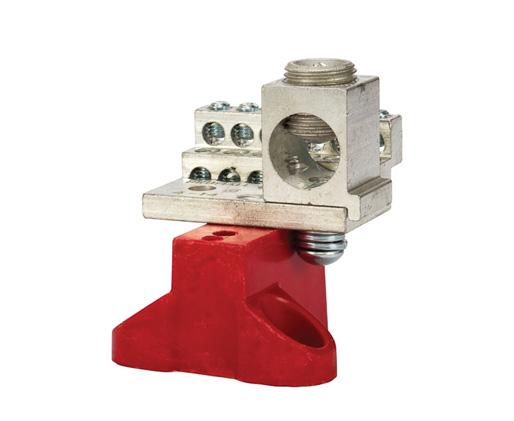

        NPNB-1012MB 12 350-6 Yes 2.193 2.750 2.250

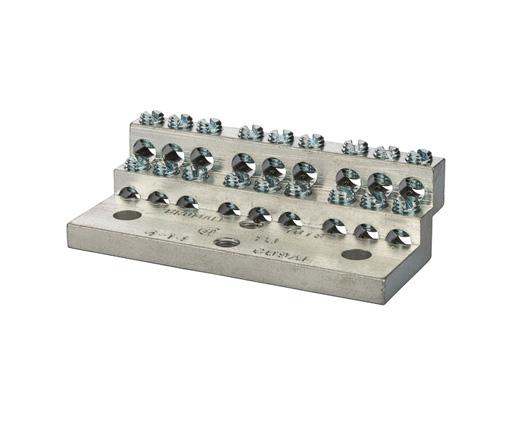

        NPNB-1018 18 None No 3.132 0.875 1.500

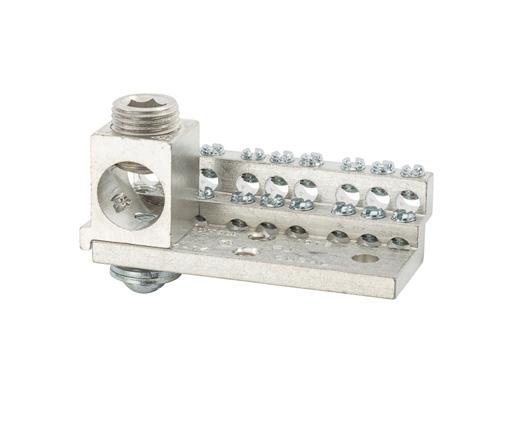

        NPNB-1018M 18 350-6 No 3.257 1.375 1.500

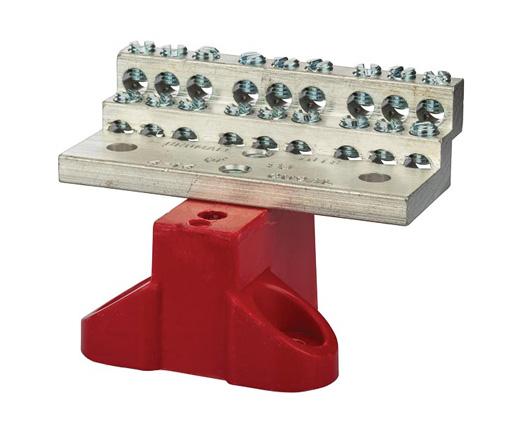

        NPNB-1018B 18 None Yes 3.132 2.250 2.250

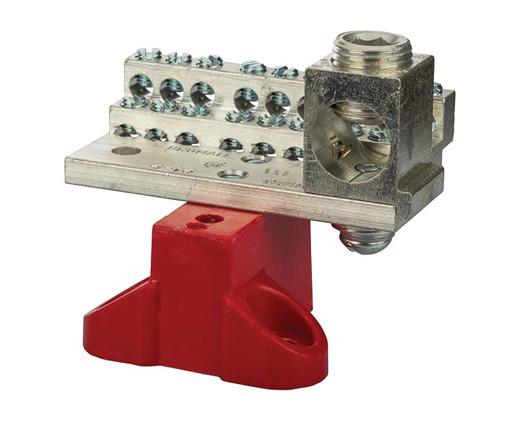

        NPNB-1018MB 18 350-6 Yes 3.257 2.750 2.250

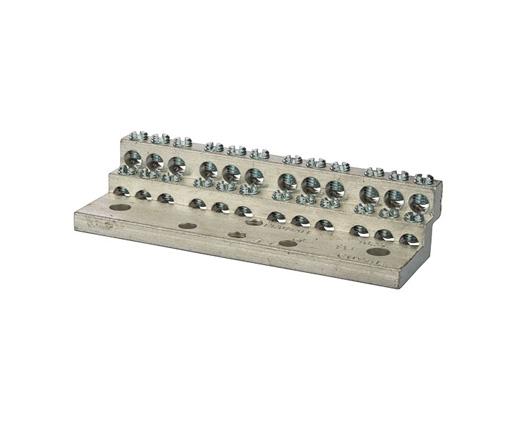

        NPNB-1024 24 None No 4.196 0.875 1.500

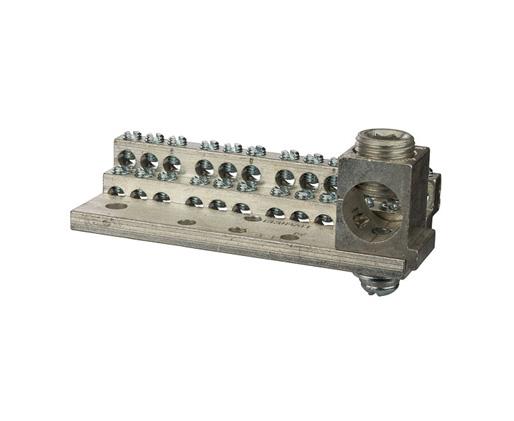

        NPNB-1024M 24 350-6 No 4.321 1.375 1.500

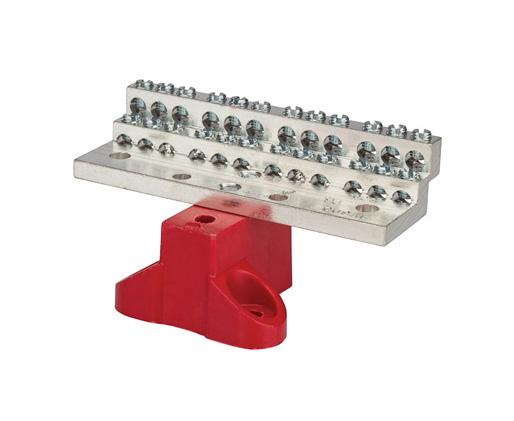

        NPNB-1024B 24 None Yes 4.196 2.250 2.250

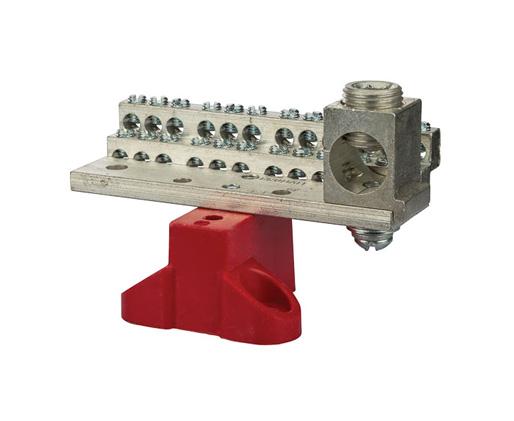

        NPNB-1024MB 24 350-6 Yes 4.321 2.750 2.250
        NPNB-1030 30 None No 5.260 0.875 1.500

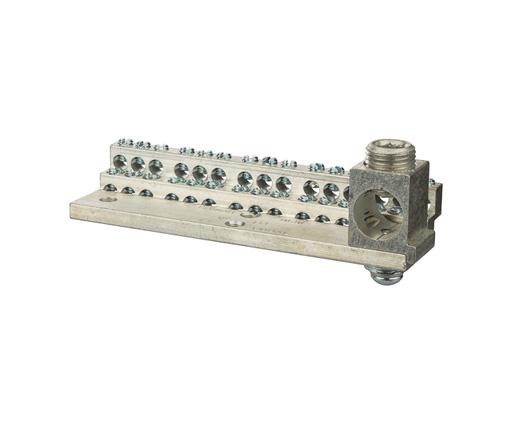

        NPNB-1030M 30 350-6 No 5.385 1.375 1.500

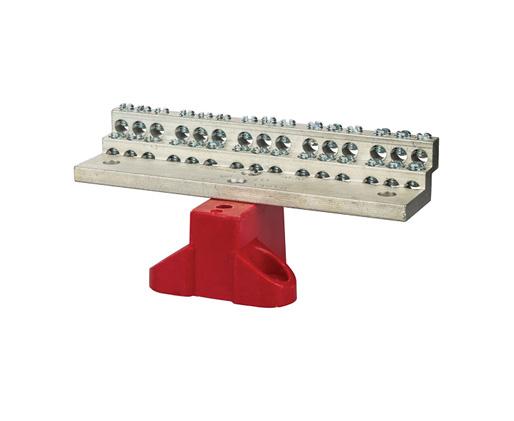

        NPNB-1030B 30 None Yes 5.260 2.250 2.250

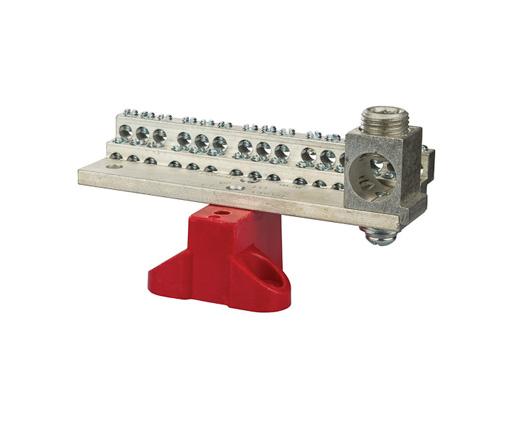

        NPNB-1030MB 30 350-6 Yes 5.385 2.750 2.250

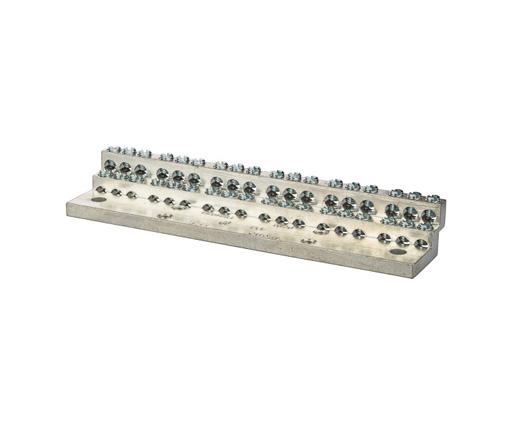

        NPNB-1036 36 None No 6.324 0.875 1.500

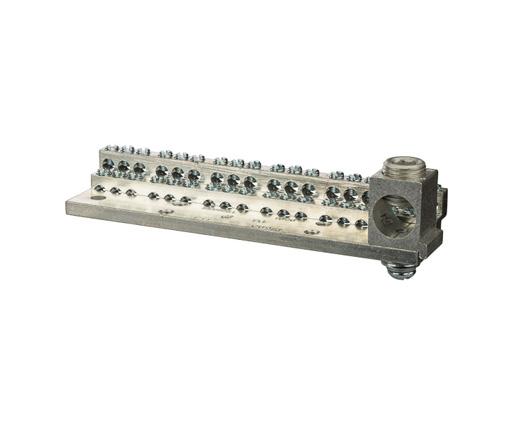

        NPNB-1036M 36 350-6 No 6.449 1.375 1.500

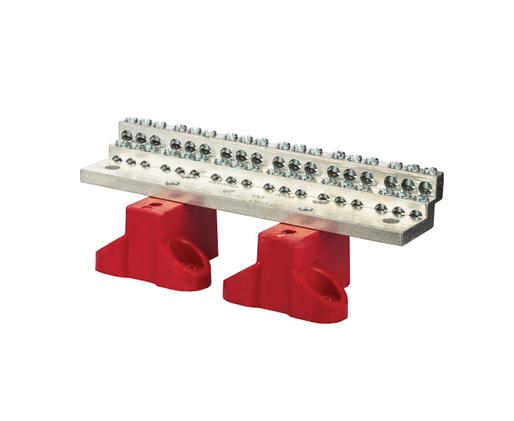

        NPNB-1036B 36 None Yes 6.324 2.250 2.250

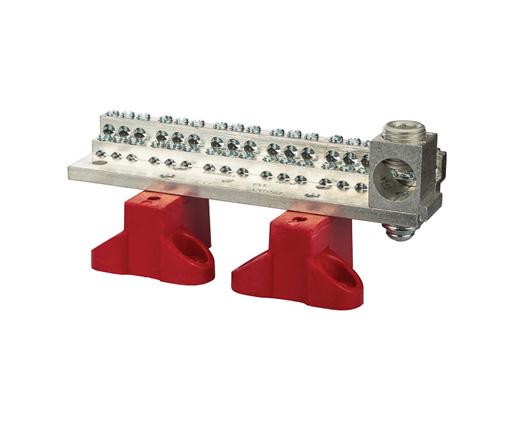

        NPNB-1036MB 36 350-6 Yes 6.449 2.750 2.250

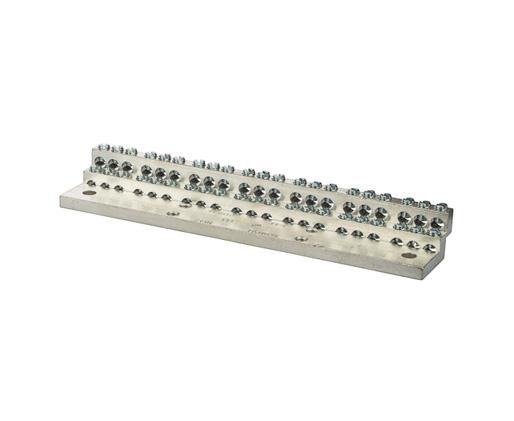

        NPNB-1042 42 None No 7.388 0.875 1.500

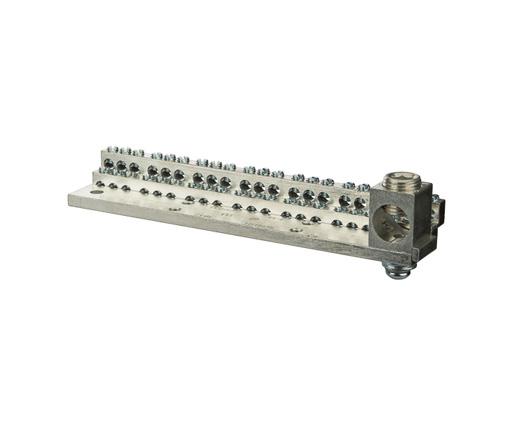

        NPNB-1042M 42 350-6 No 7.513 1.375 1.500

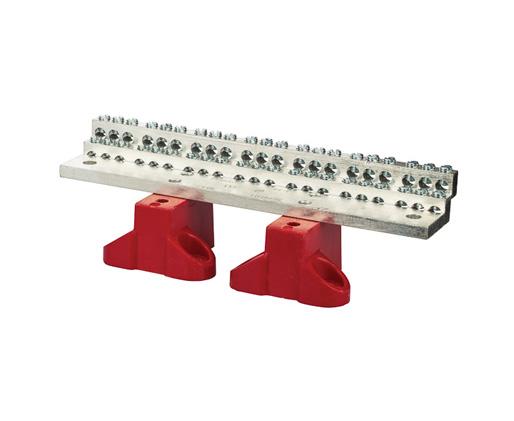

        NPNB-1042B 42 None Yes 7.388 2.250 2.250

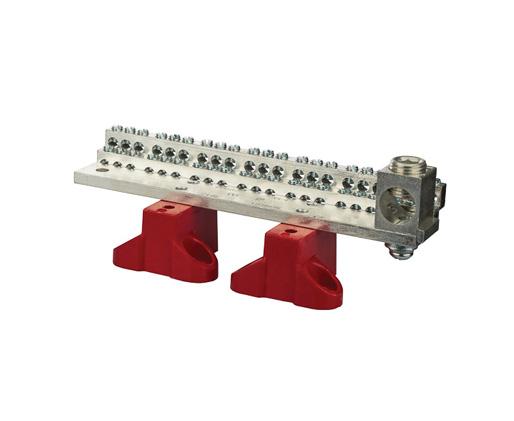

        NPNB-1042MB 42 350-6 Yes 7.513 2.750 2.250

            What's In The Box

            • Qty 1 Neutral Connector
