Description

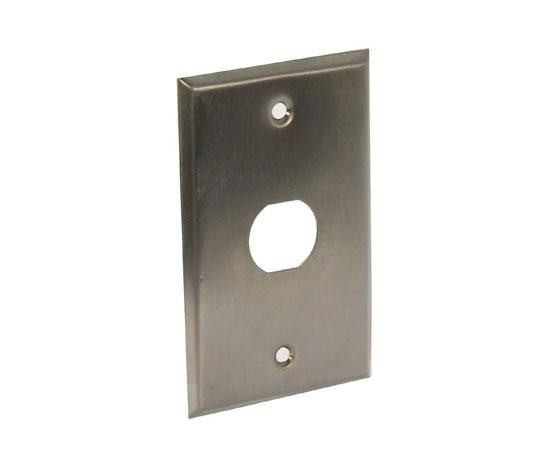

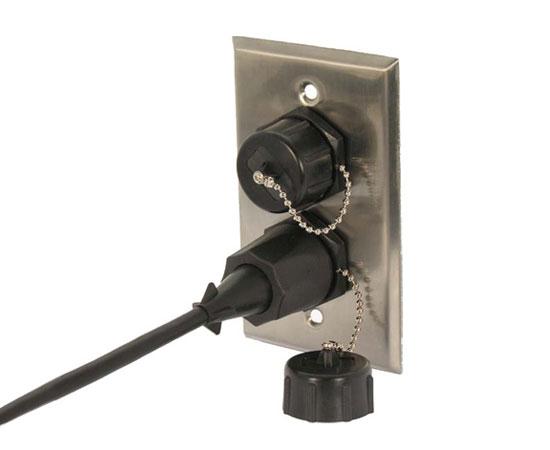

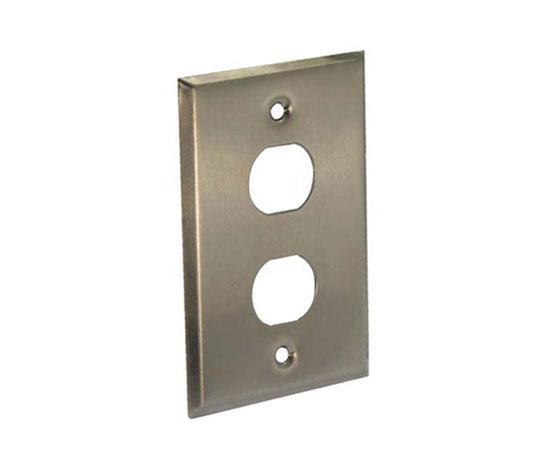

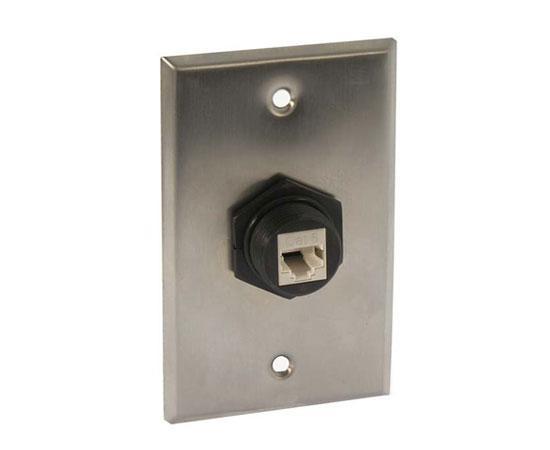

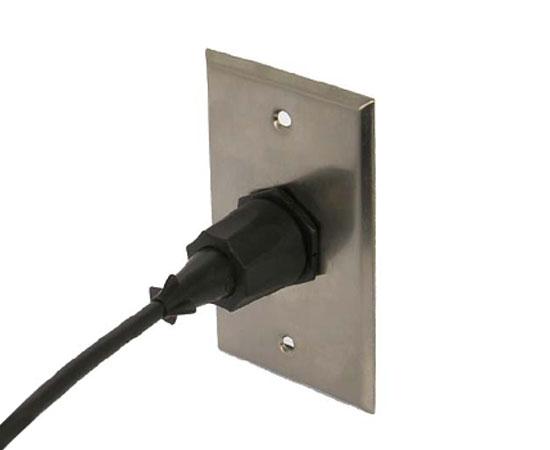

Outdoor Industrial Water Sealed Wall Plate
Our Industrial Grade Single Gang Outdoor Wall Plates are the perfect options for your networking applications that require equipment to be in wet or debris-filled environments. Our Outdoor Wall Plates mount flush against the wall creating a watertight seal and are ready to house bulkhead RJ45 keystone jacks. Our Industrial Outdoor Wall Plates offer a stainless steel finish and include mounting screws. Our Outdoor Wall Plates are ideal for protecting electrical equipment in the most messy of environments. These Single Gang Industrial Wall Plates are available in 1-Port and 2-Port configurations and are IP67 rated.
To complete your industrial outdoor CAT6 network we carry a full end to end solution including CAT6 outdoor bulk cables, CAT6 industrial patch cables, CAT6 industrial keystone jacks, and CAT6 industrial bulkhead couplers. We also have a large assortment of tools, testers and cable management accessories that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call.
Features
Features
- Single Gang
- Watertight Seal
- Industrial Grade - IP67 Rated
- Flush Mount

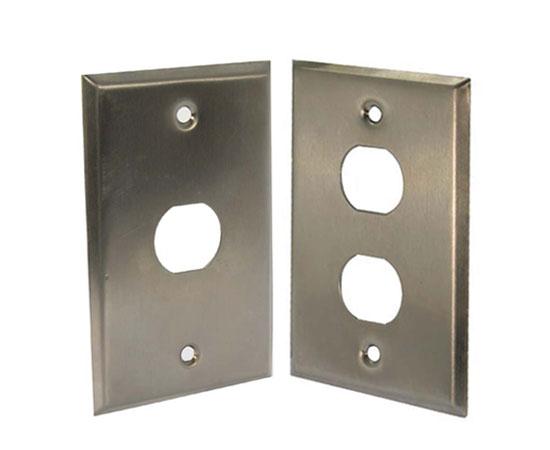

- 1-Port or 2-Port Configuration

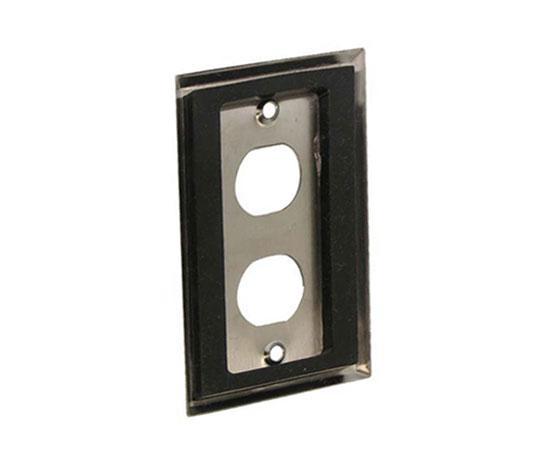

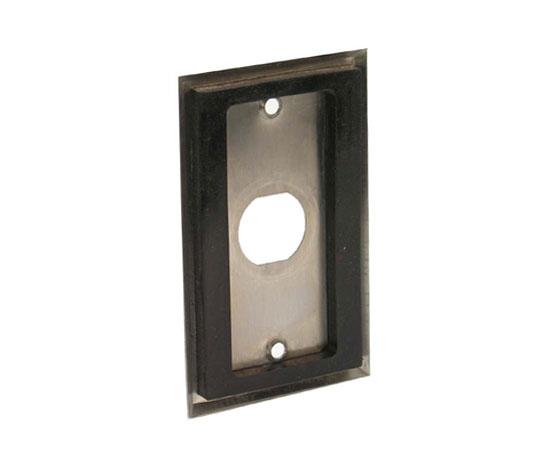

- 2 Mounting Screws and O-Ring Included
- Easy Installation
- Accommodates Bulkhead RJ45 Keystone Jacks
- RoHs Compliant
- Stainless Steel Finish
Specifications
Specifications
Wall Plate Configuration |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Configuration | A | B | C | D | E | F | G | H |
| WP10-3393/SG1P/SS | 1-Port | 2.8 in | 4.5 in | 0.9 in | Ø25.2 mm | 3.3 in | 0.2 in | Ø5.1 mm | n/a |
| WP10-1525/SG2P/SS | 2-Port | 2.8 in | 4.5 in | 0.9 in | Ø25.2 mm | 3.3 in | 0.2 in | Ø5.1 mm | 1.5 in |
Additional Information
Additional Information
IP Ratings:
The IP Code (or International Protection Rating) consists of the letters IP followed by two digits and an optional letter. This standardized rating system is designed to clarify misleading terms such as: "waterproof", "water resistant", etc. As defined in international standard IEC 60529, it classifies the degrees of protection provided against the intrusion of solid objects including: body parts, dust, accidental contact, and water in electrical enclosures.
First Digit: Solids
The first digit indicates the level of protection that the enclosure provides against access to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid foreign objects.
| IP Number | Protection Rating |
|---|---|
| 0 |
Not protected |
| 1 |
>50mm |
| 2 |
>12.5mm |
| 3 |
>2.5mm |
| 4 |
>1mm |
| 5 |
Dust Protected |
| 6 |
Dust Tight |
Second Digit: Liquids
The second digit indicates the level of protection of the equipment inside the enclosure against harmful ingress of water.
| IP Number | Protection Rating |
|---|---|
| 0 |
Not protected |
| 1 |
Dripping Water |
| 2 |
Dripping Water when tilted up to 15™ |
| 3 |
Spraying Water |
| 4 |
Splashing Water |
| 5 |
Water Jets |
| 6 |
Powerful Water Jets |
| 7 |
Immersion up to 1m |
| 8 |
Immersion beyond 1m |
What's in the Box
What's in the Box
- 1 Industrial Outdoor Stainless Steel Wall Plate
- 2 Mounting Screws
- 1 O-Ring
