These products are all Made to Order
Which means they are non-cancelable and non-refundable
Description

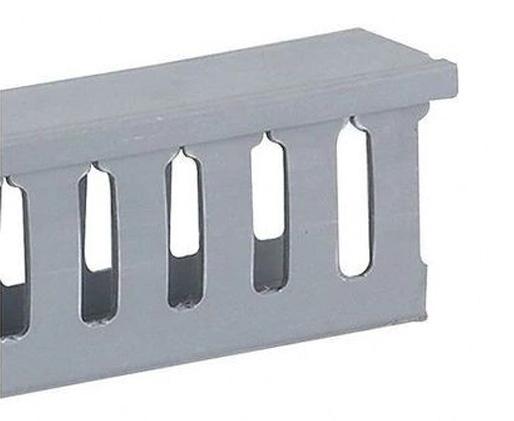

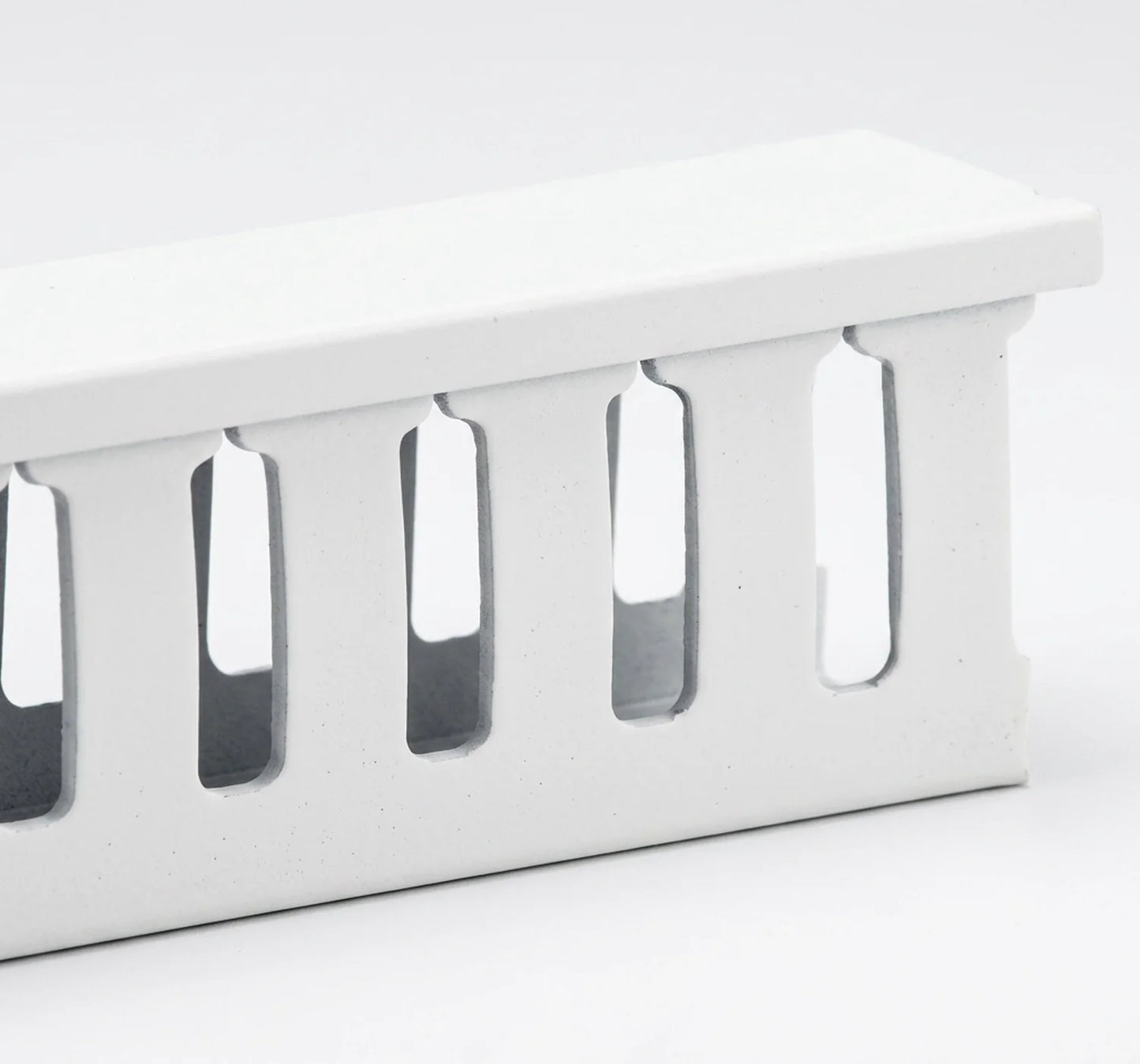

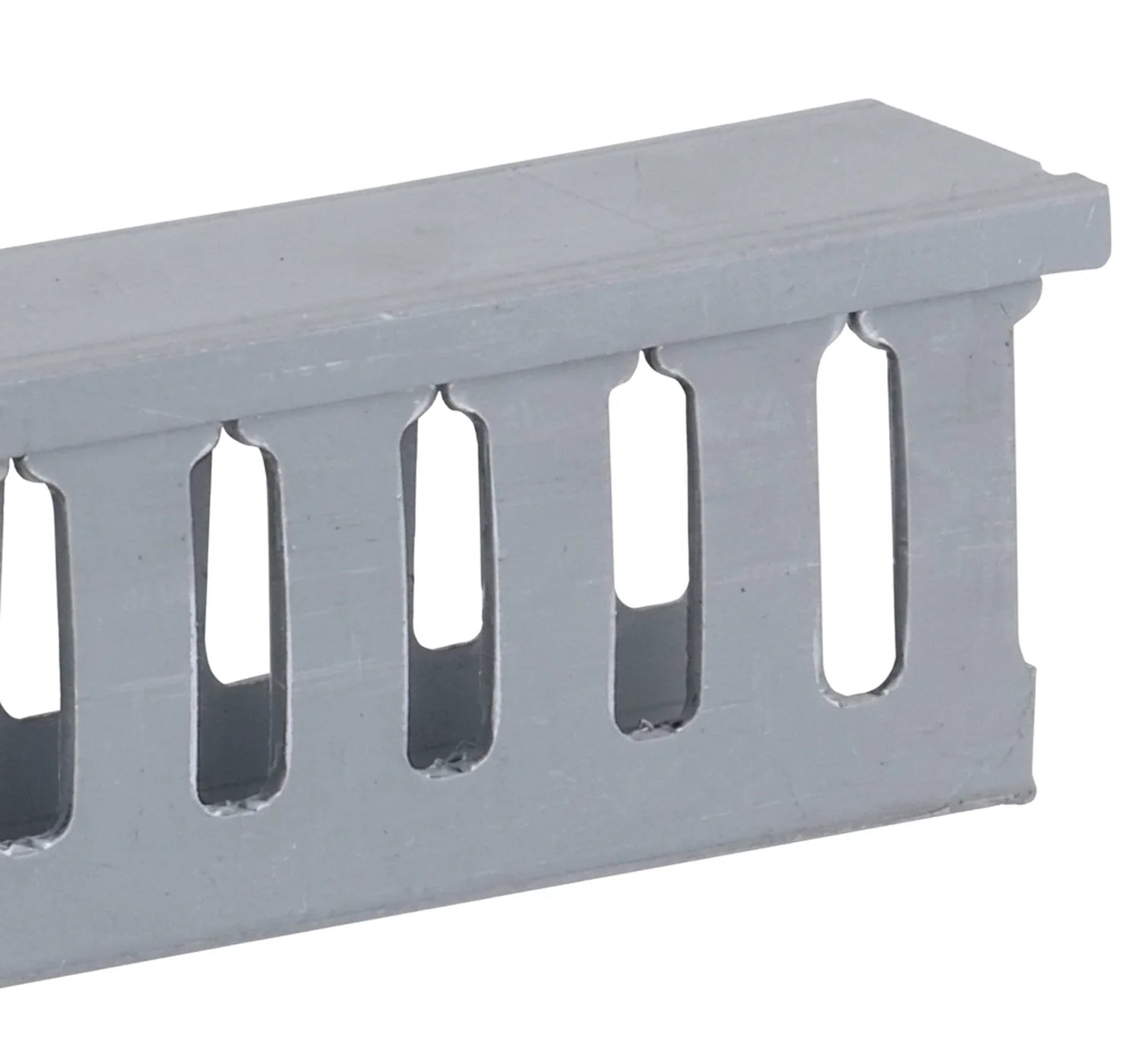

Standard Slot Panel Channel
Made from high-impact, self-extinguishing, warp-proof PVC for routing wires. Restricted slot opening is designed to retain wires and allow for breakout when required. Individual wires are easily traced and removed when necessary.
Features
Features
- Made from high-impact, self-extinguishing, warp-proof PVC for routing wires.
- Restricted slot opening is designed to retain wires and allow for breakout when required. Individual wires are easily traced and removed when necessary.
- Scored sidewalls allow for easy break-off of panel channel sections.
- All sizes are supplied with mounting holes and non-slip, snap-on and off covers.
- Optional adhesive backing is available.
Specifications
| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| CSA & UL RECOGNIZED | YES | ||
| MAXIMUM SERVICE TEMPERATURE | 85°C (185°F), TESTED TO UL FILE UP TO 50°C (122°F) | ||
| FLAME RATING | 94V-0 RATED | ||
| Part # | Color | Nominal Size | Length (ft.) |
| NPNB-PC1010LS | Grey | 1 x 1 | 6' |
| NPNB-PC1010LSW | White | 1 x 1 | 6' |
| NPNB-PC1015LS | Grey | 1 x 1 1/2 | 6' |
| NPNB-PC1020LS | Grey | 1 x 2 | 6' |
| NPNB-PC1020LSW | White | 1 x 2 | 6' |
| NPNB-PC1030LS | Grey | 1 x 3 | 6' |
| NPNB-PC1030LSW | White | 1 x 3 | 6' |
| NPNB-PC1040LS | Grey | 1 x 4 | 6' |
| NPNB-PC1515LS | Grey | 1 1/2 x 1 1/2 | 6' |
| NPNB-PC1515LSW | White | 1 1/2 x 1 1/2 | 6' |
| NPNB-PC1520LS | Grey | 1 1/2 x 2 | 6' |
| NPNB-PC1520LSW | White | 1 1/2 x 2 | 6' |
| NPNB-PC1530LS | Grey | 1 1/2 x 3 | 6' |
| NPNB-PC1530LSW | White | 1 1/2 x 3 | 6' |
| NPNB-PC2010LS | Grey | 2 x 1 | 6' |
| NPNB-PC2020LS | Grey | 2 x 2 | 6' |
What's In The Box
What's In The Box
- Qty 1 - Panel Channel Lok-Slot
