Create strong, watertight and airtight bonds with HDPE conduit glue.

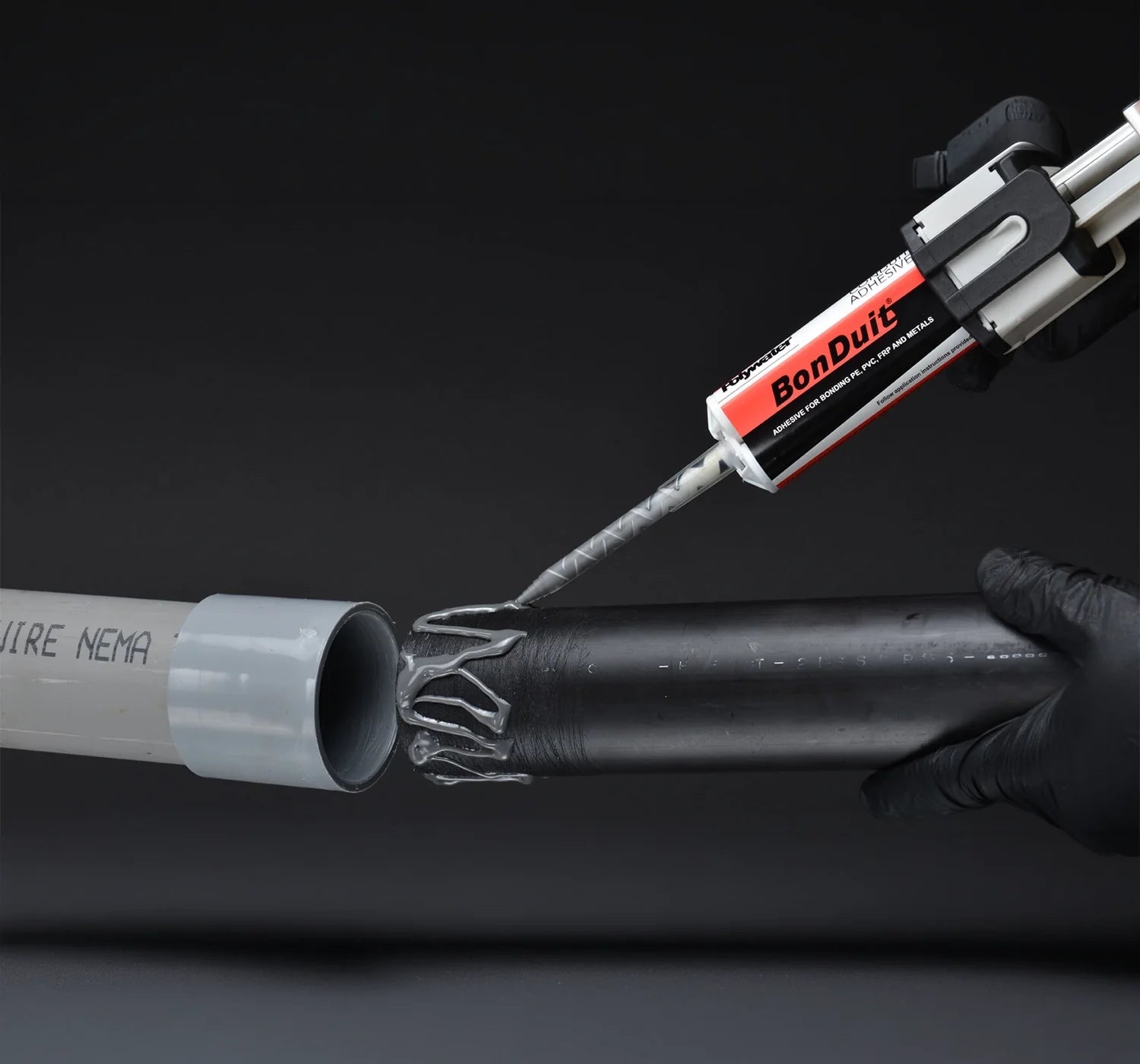

Polywater® BonDuit® conduit glue joins polyethylene duct (PE pipe) to PVC, fiberglass, or metal conduits. This HDPE adhesive offers a superior, easy-to-apply alternative to joining conduits using mechanical couplings. The rapid-cure, two-part resin adhesive forms a strong watertight and airtight seal. Polywater BonDuit® XL provides an excellent option for 3-inch (75 mm) conduits and larger and helps you to meet the NEC code for transitioning above ground and to PVC or galvanized rigid steel. This conduit glue can be used in indoor and outdoor projects. Both HDPE adhesive kit types deliver a durable bond that can withstand movement and vibration, and are ideal for installation along roadsides or near electrical equipment like transformers or switchgear.

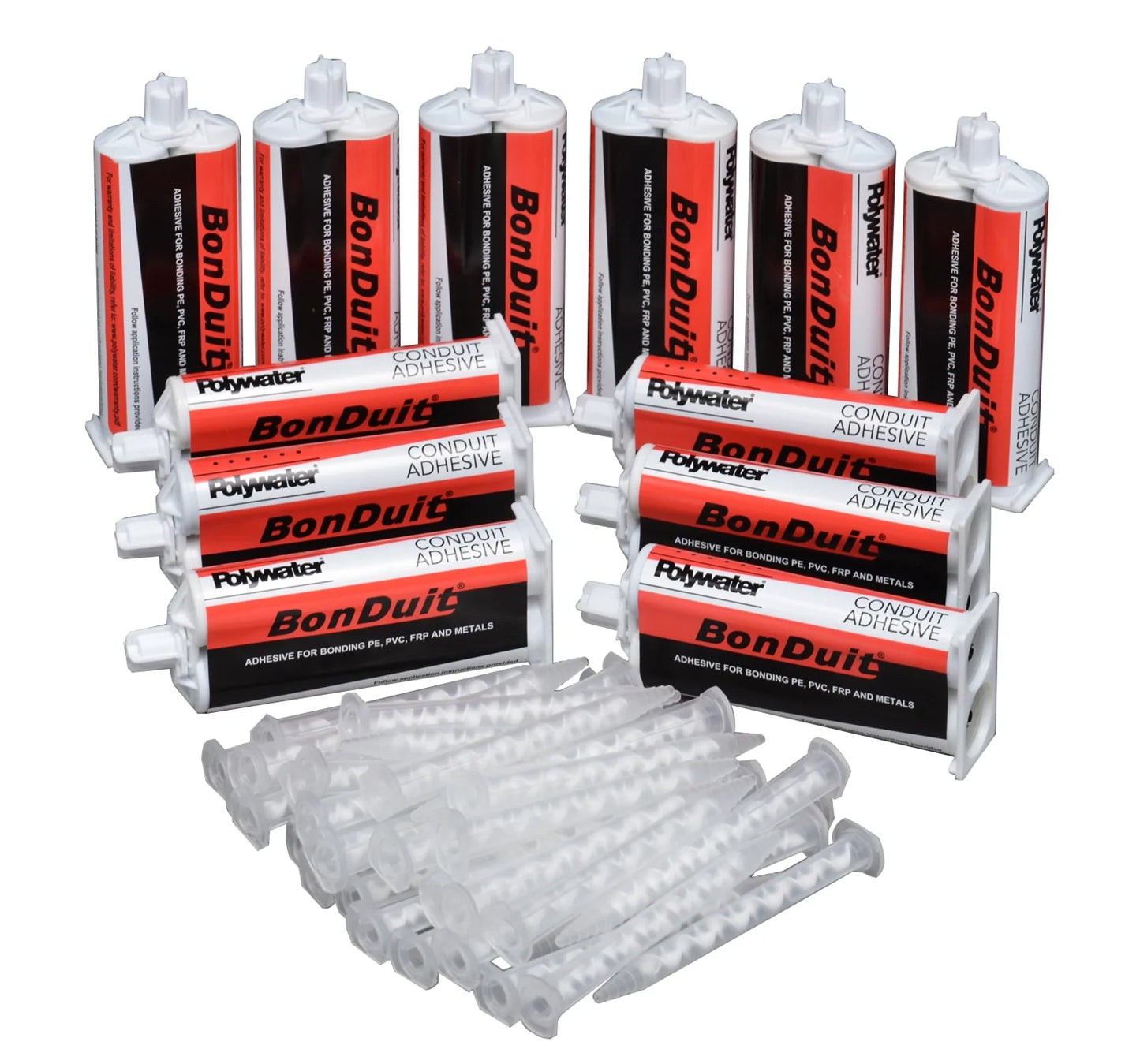

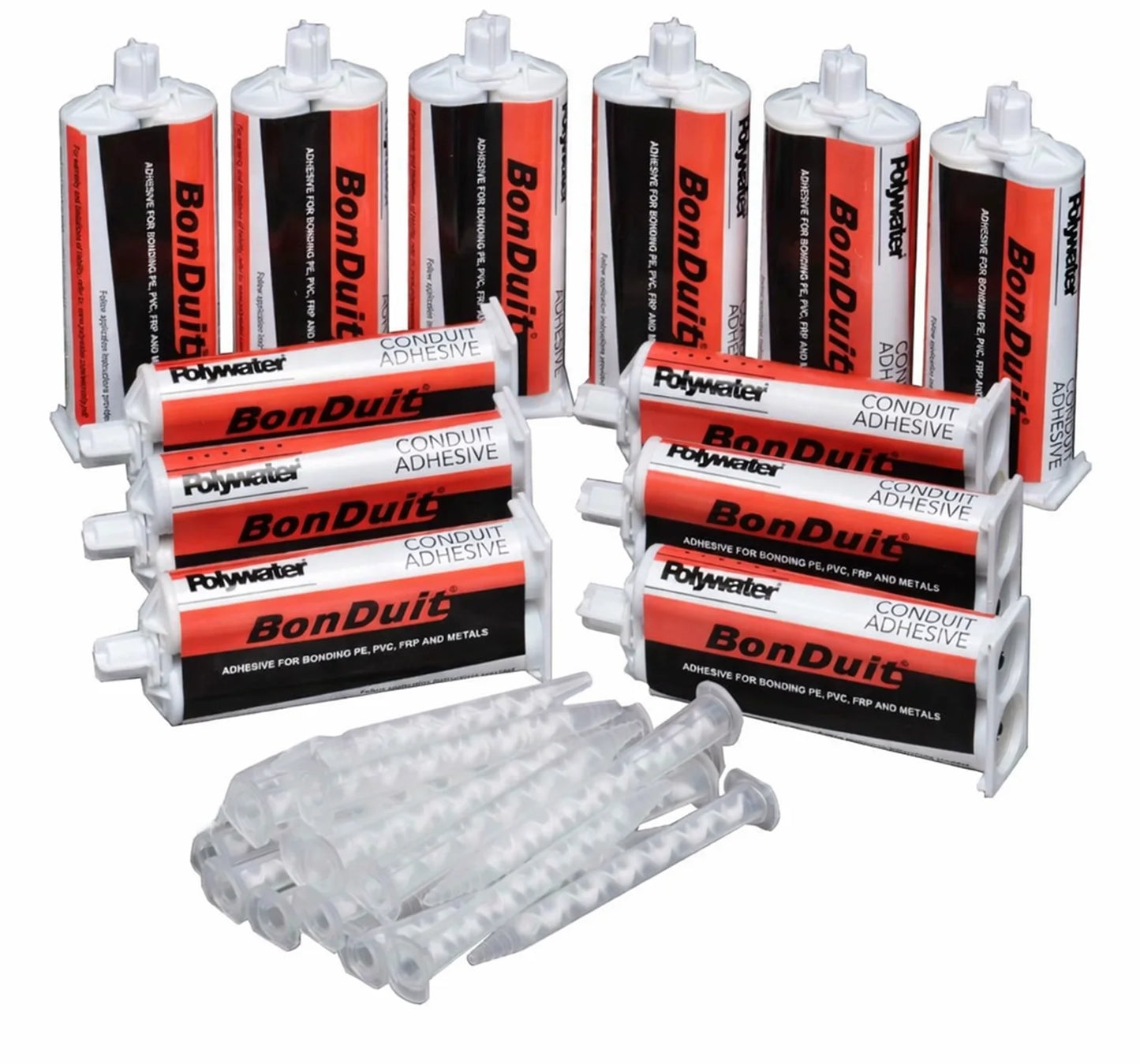

Polywater® BonDuit® and BonDuit® XL Conduit Adhesive
Bonds HDPE to PVC, rigid steel, fiberglass conduits and composites

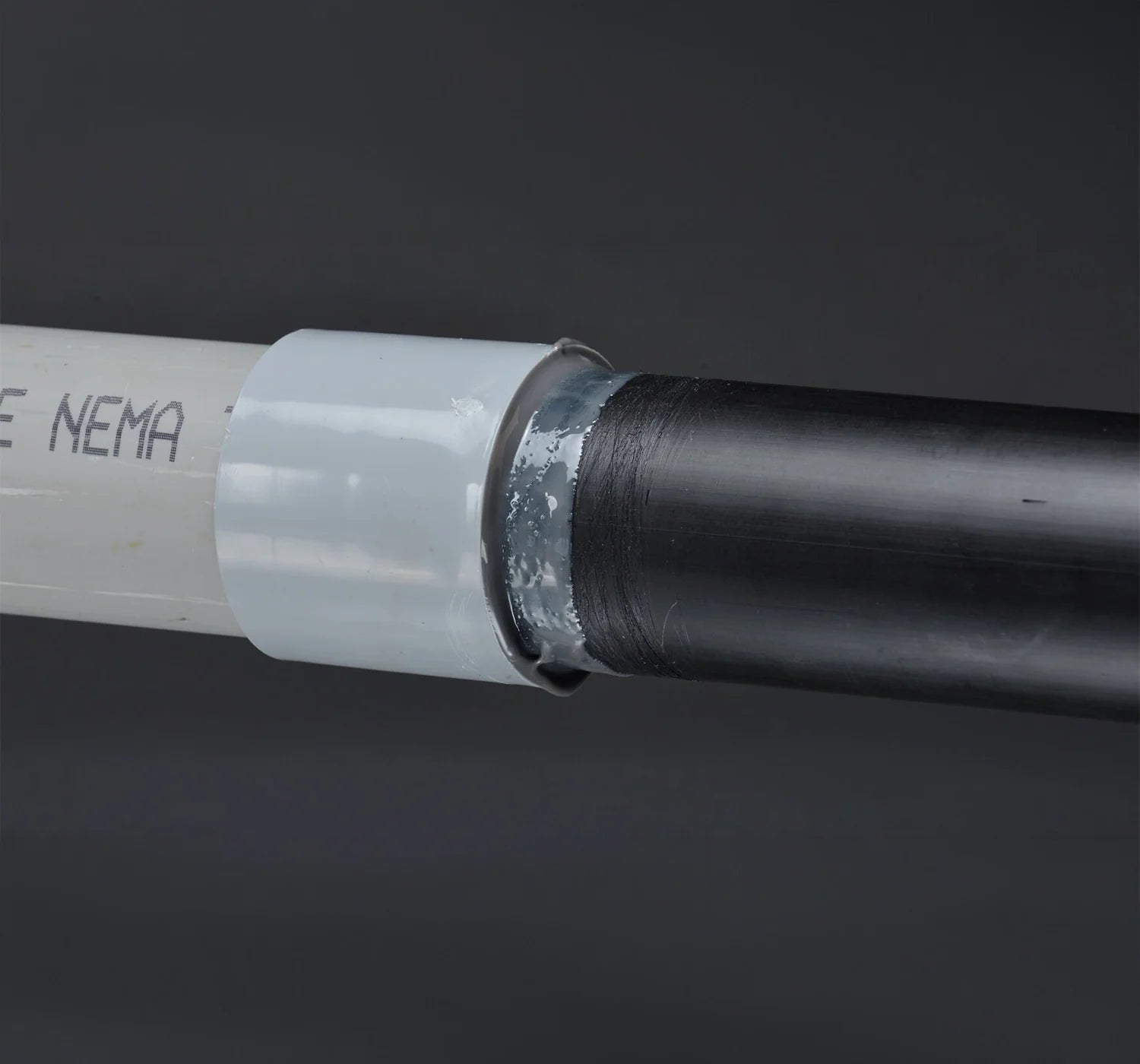

Creates airtight and watertight splices
Bonds are durable with high tensile strength
Suitable for cable blowing applications
Features
Features
VERSATILE Bonds HDPE to PVC, rigid steel, fiberglass conduits, and fittings and transition couplings
SUPERIOR Stronger pullout strength than most mechanical couplings
FAST, EASY, AND LONG-LASTING Bonds with high strength within an hour and requires no special training
COST EFFECTIVE Less expensive than mechanical couplings

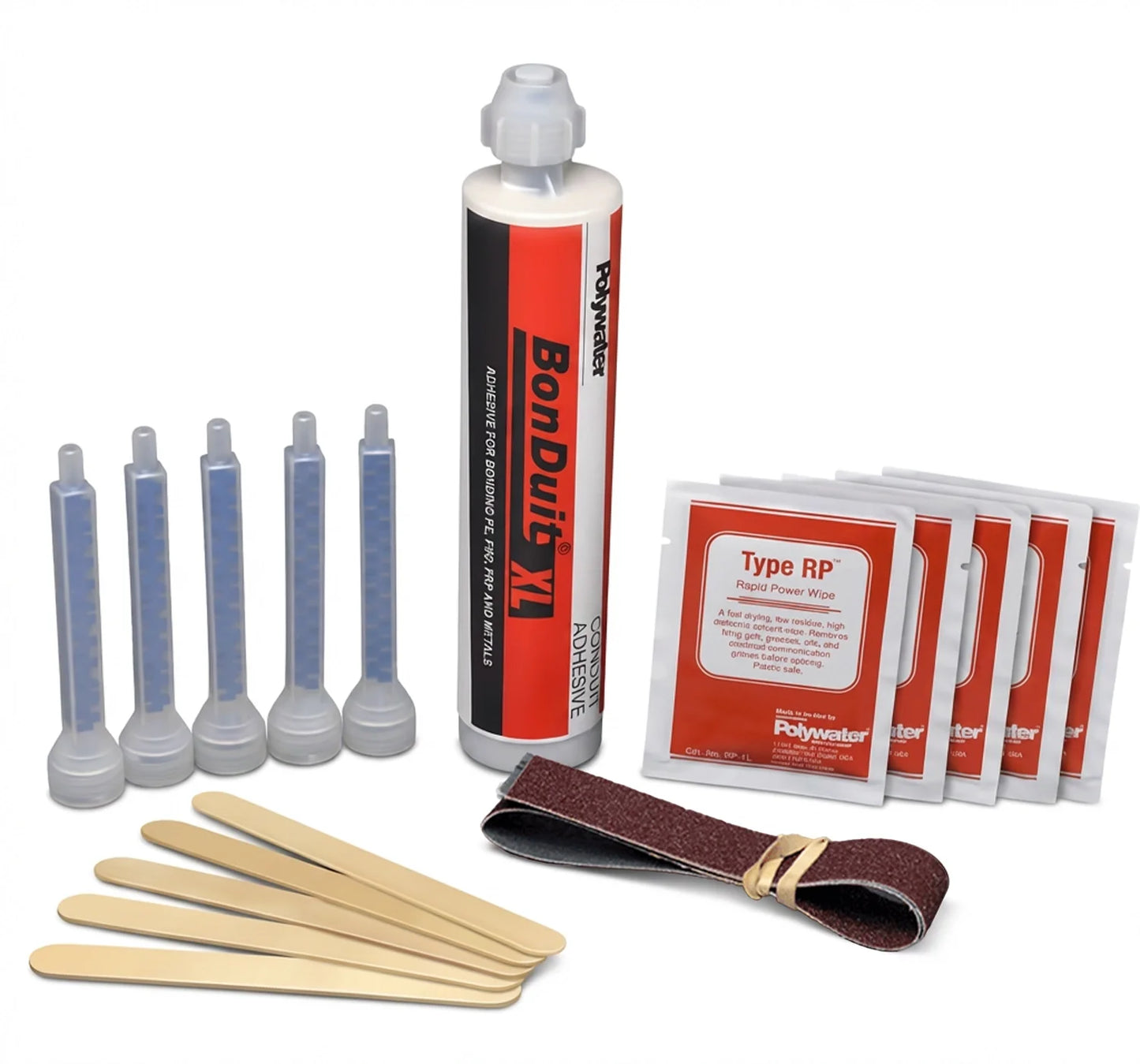

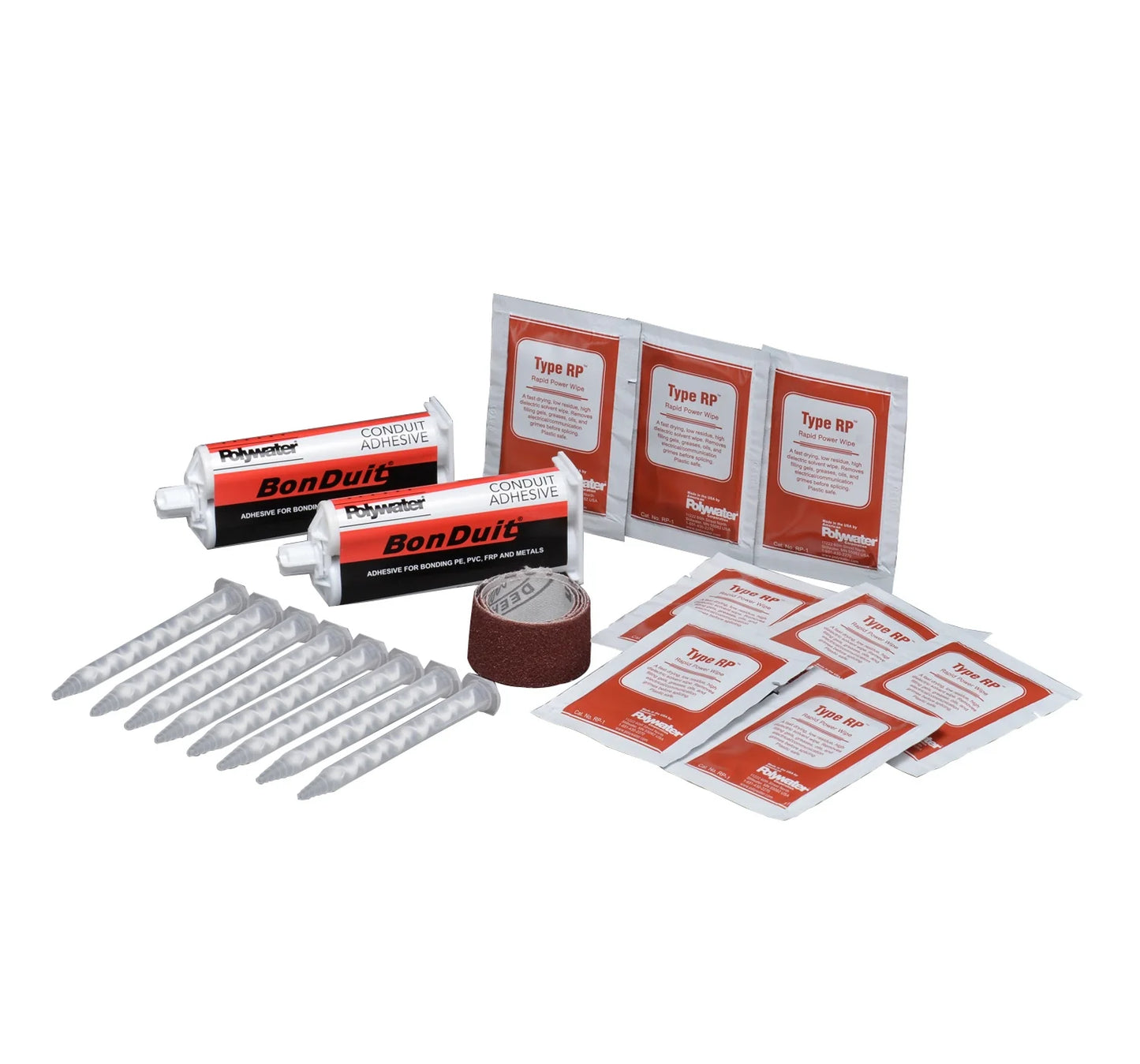

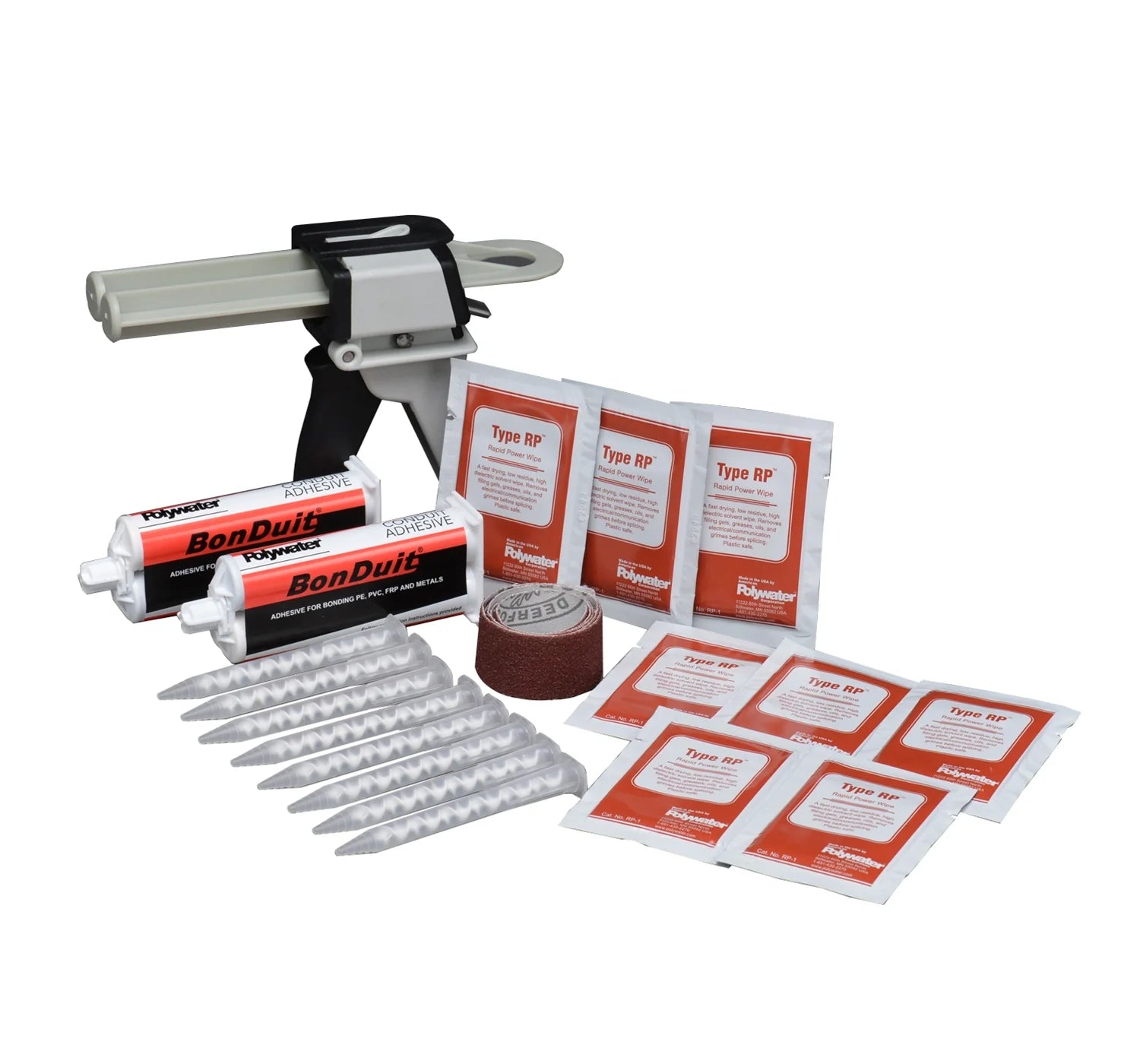

CONVENIENT Both HDPE adhesive kits contain all application components required for a quick installation
DURABLE Chemically resistant to salt water, alkaline soap solutions, mineral spirits, and oil
Product Notes
BonDuit and BonDuit XL are UL recognized conduit glues and pass UL Method 746, “Polymeric Adhesive System for Indoor and Outdoor Use with Electrical Equipment”.
BonDuit XL enables coupling of ducts measuring 3-inches (75 mm) and above providing an extremely economical choice. Can be used as a mechanical coupling for conduit diameters higher than 5-inches (125 mm).
BonDuit has a slightly longer set time versus BonDuit XL. Will withstand 120 psi (8.3 bar) continuous pressure.
Meets NEC 352.48, 353.48, and 355.48 for joining PVC, HDPE Polyethylene, and RTRC fiberglass conduit. Perfect products for the transition from underground HDPE pipe to aboveground connections. PVC pipe cement does not bond HDPE (NEC code 353.12.1)
Specifications
ADHESIVE SHEAR STRENGTH
CONDUIT DIAMETER
PULLOUT FORCE
1 inch (2.5 cm)
724 lbf (3.22 kN)
1½ inch (4 cm)
1,233 lbf (5.48 kN)
2 inch (5 cm)
2,025 lbf (9.01 kN)
4 inch (10 cm)
5,333 lbf (23.72 kN)
COMPONENT PHYSICAL PROPERTIES
PROPERTY
PART A
PART B
Color
Dark grey/black
White/light yellow
Form
Paste
Paste
Odor
No odor
Slight sulfur odor
VOC
0 g/L
0 g/L
Specific gravity
1.2
1.2
CURED RESIN PROPERTIES
PROPERTY (7 DAY CURE, 70°F)
RESULT
Color
Grey
Peak exotherm @ 70ºF (21°C)
<200ºF (<95°C)
Hardness (Shore D Durometer)
78–88
Flexibility (ASTM D790)
> 2%
Dielectric strength (ASTM D149)
450 Volts/Mil (nonconductive)
Airtight (continuous)
120 psi (8.3 bar)
ENVIRONMENTAL RESISTANCE
OPERATING TEMPERATURE
-31°F TO 140°F (-35°C TO 60°C)
CHEMICAL RESISTANCE
CHEMICAL EXPOSURE
% CONTROL
Salt water (4%)
85% (Pass)
Alkaline soap solution (pH 12)
100% (Pass)
Odorless mineral spirits
>100% (Pass)
CURE RATE
TEMPERATURE
WORK TIME
SET TIME
35°F (2°C)
40 min (XL 80 min)
7 hrs
52°F (11°C)
20 min (XL 40 min)
3½ hrs
60°F (16°C)
10 min (XL 20 min)
1½ hrs
70°F (21°C)
6 min (XL 12 min)
60 min
88°F (31°C)
4 min (XL 8 min)
40 min
Additional Information
Product Videos
POLYWATER® BONDUIT® CONDUIT ADHESIVE INSTRUCTIONS
POLYWATER® BONDUIT® CONDUIT ADHESIVE OVERVIEW VIDEO
POLYWATER® BONDUIT XL® INSTALLATION VIDEO
POLYWATER® BONDUIT® BT50 INSTALLATION VIDEO
