Description

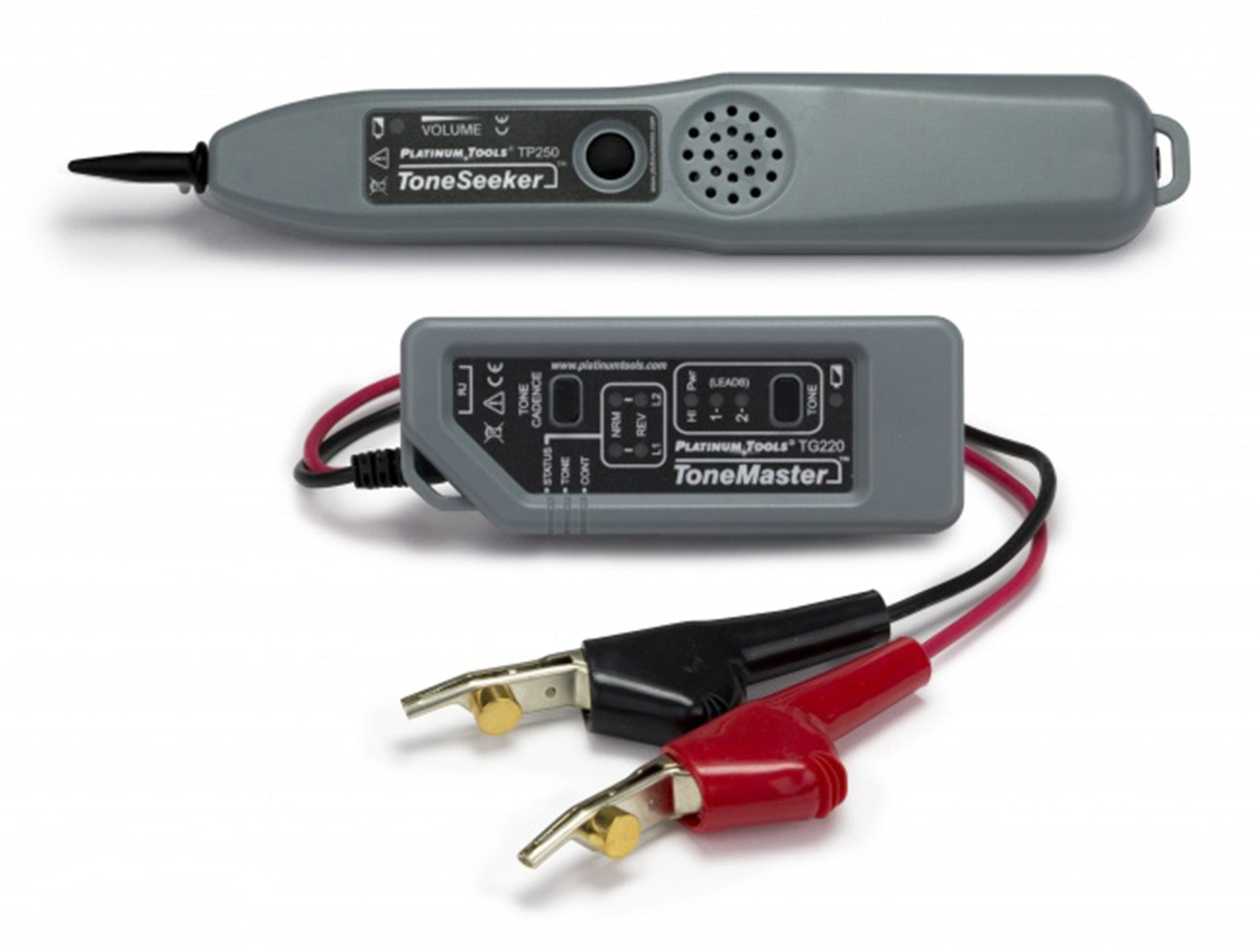

Professional Tone and Probe Kit
The Professional Tone and Probe Kit gives technicians a high-powered tone generator and tone tracing probe. The ToneMaster tone generator enables signal detection over 20 miles away and makes tracing through walls and enclosures easier. It has multiple tones and power levels for network, signal wire, coax, and telephone cable applications. Four tone amplitude levels include normal and half, high-powered normal and half, with the half amplitude unbalanced for a stronger signal effect on twisted pairs.
Depending on test requirements, three distinctly different tones can be selected from the front panel. Paired with the ToneSeeker tracer, the ToneMaster makes easy work of tracing and locating cables and cable ends. This kit also includes a No-Fault, RJ12 cable to connect your ToneMaster to either RJ11 or RJ45 jacks and a Tone and Probe Belt Pouch to easily store your ToneMaster and ToneSeeker.
Features
Features
ToneMaster
- 700% more power than standard tone generators
- Unbalanced tone mode supports longer distances on UTP cables
- Constant amplitude output ensures no signal decrease as the battery discharges
- Auto-off for battery conservation
- Full talk battery to power a dry line
- Tone may be added in any mode phone sets without a monitor feature, can pick up tone
- Models available with molded-in alligator clips or molded-in angled bed-of-nails (ABN) clips
ToneSeeker
- Comfortable ergonomic shape, balanced weight
- Volume control
- Recessed on the switch
- Tip replacement without opening the case
- Low battery indicator
- Slender profile to fit any tool pouch
- Lanyard attachment point
Specifications
| TONE SPECIFICATIONS | |
|---|---|
| Tone Frequencies | Dual 1,165 Hz and 874 Hz / Single 1,165 Hz and 874 Hz |
| Tone Power (Standard) | LO 3.6 dBm / HI 9.3 dBm (into 600Ω) |
| Tone Power (High Mode) | LO 12.3 dBm / HI 18.4 dBm |
| Voltage Protection | DC 60V (Status), AC 300V peak (Status), DC 52V (Continuity) |
| Tone Mode Protection | 250 DC or peak AC volts |
| Battery Life | 120 hrs typical (9V Alkaline, 540 mA-hr) |
| PROBE SPECIFICATIONS | |
|---|---|
| Input Impedance | 10MΩ (internal ground) |
| Probe Tip Resistance | 10KΩ/square min (bulk resistance) |
| Frequency Range | 340 Hz – 1.6K Hz |
| Battery Life | 15 hrs typical (9V Alkaline, 540 mA-hr) |
Additional Information
Instructional Video
What's In The Box
What's In The Box
- Qty 1 - ToneMaster Tone Generator
- Qty 1 - ToneSeeker Tone Tracer Probe
- Qty 1 - No Fault FJ12 Cable
- Qty 1 - Belt Pouch
- Qty 1 - Instructions
