PVC ENT CAP
Made of UV rated plastic for long outdoor life, Arlington’s entrance caps come with adapters that fit a range of sizes, so you’ll have fewer products to stock. Our new PVC1020 handles 1/2", 3/4" and 1" PVC, rigid and EMT – one product for all three sizes. Used for 1/2", PVC1020 costs less than a comparably sized aluminum cap. The savings is even greater on the 3/4" and 1" sizes.
Features
Features
- Works on Rigid, IMC and/or EMT conduits
- Durable metal housing with steel clamp
- Includes adapter sleeve for EMT
Specifications
| TECHNICAL SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| Part Number | Trade Size | Dim A | Dim B | Hole Sizes | Line Drawings |

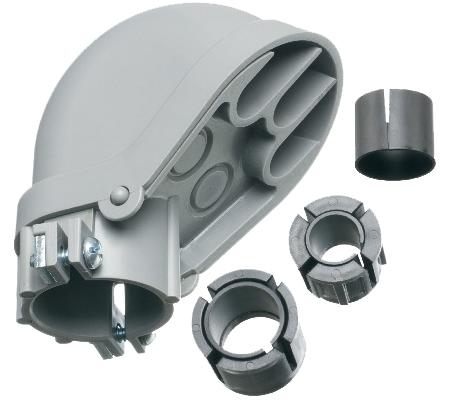

| PVC1020 | 1/2, 3/4, 1" | 3.575 | 3.438 | (2) 0.673 | |

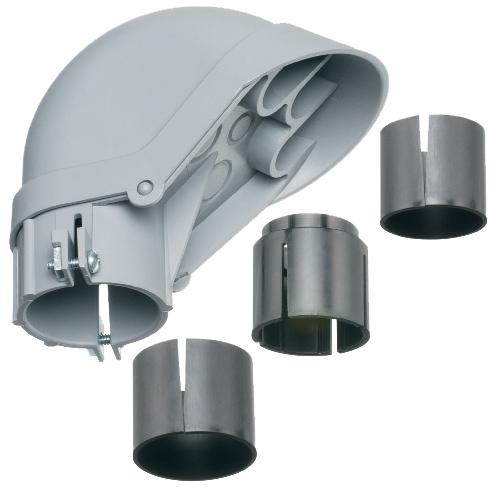

| PVC1040 | 1-1/4, 1-1/2" | 5.900 | 5.069 | (2) 0.823, (1) 0.635 | |

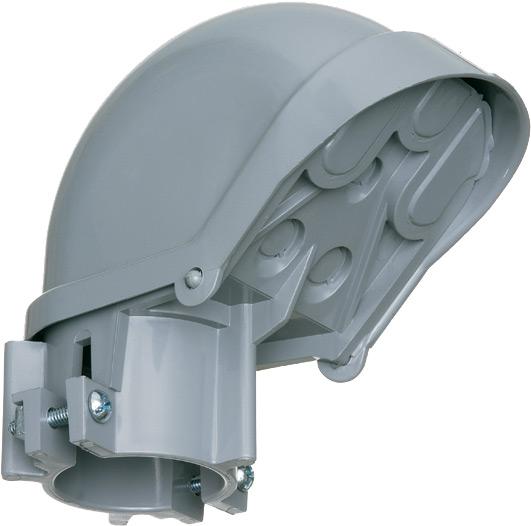

| PVC106 | 2" | 7.790 | 6.660 | (2) 0.750, (1) 0.562 | |
| PVC129 | 2-1/2" | 9.790 | 7.620 | (4) 0.875 | |

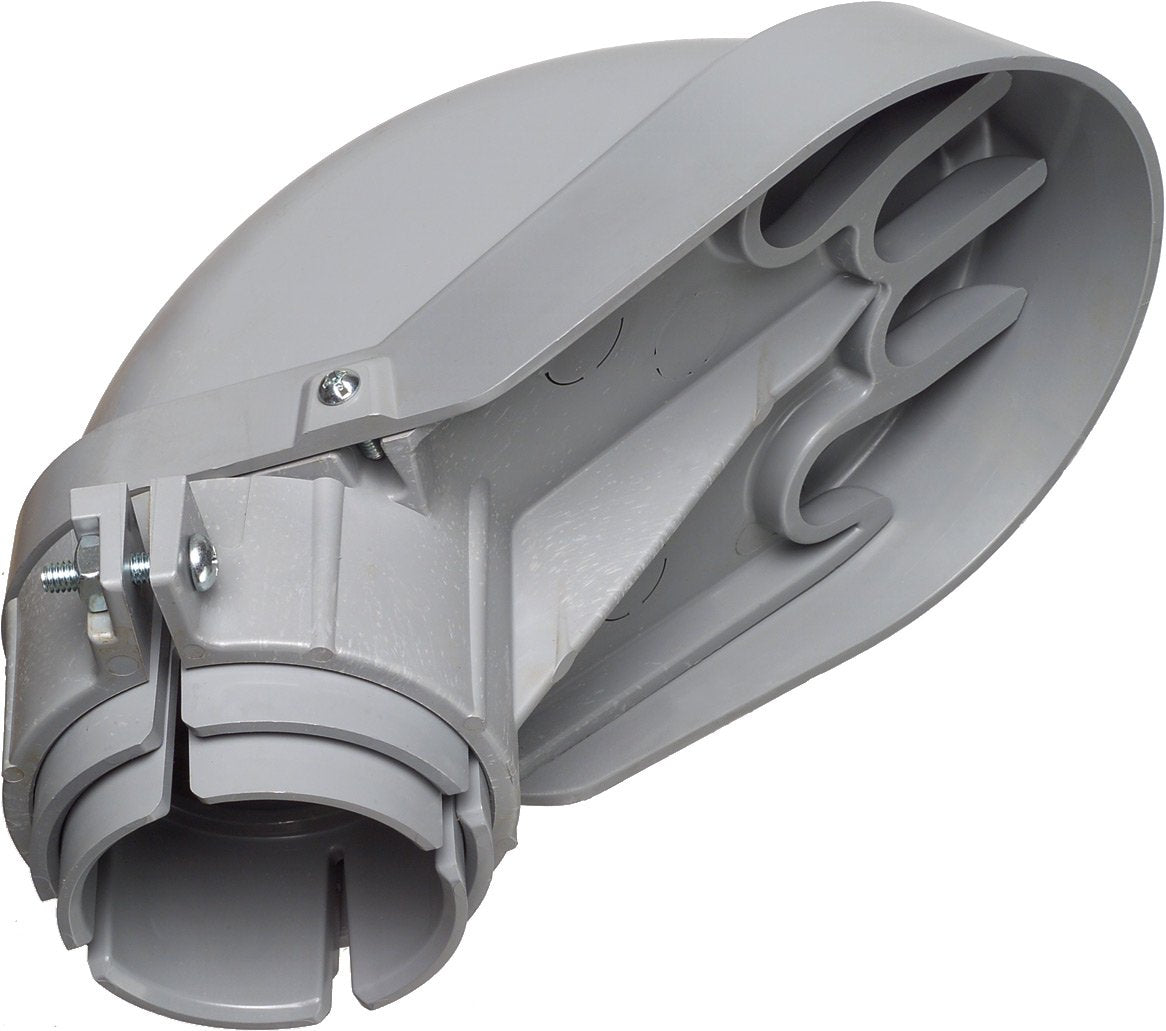

| PVC109 | 3, 3-1/2, 4" | 12.650 | 9.070 | (2) 1.500, (1) 1.250 | |
Additional Information
| Product Videos | |
|---|---|
PVC ENTRANCE CAPS |
What's In The Box
What's In The Box
- Qty 1 - PVC Entrance Caps for Rigid IMC and/or EMT
