Description

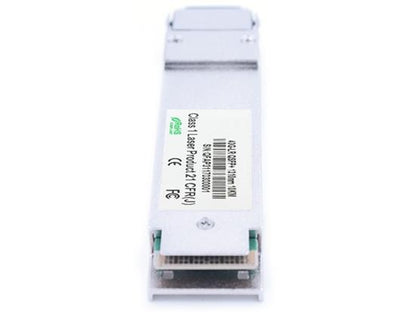

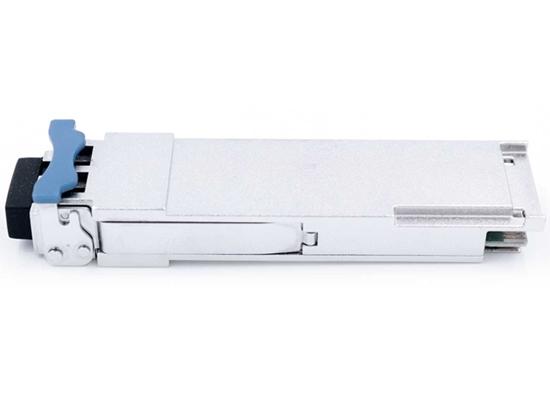

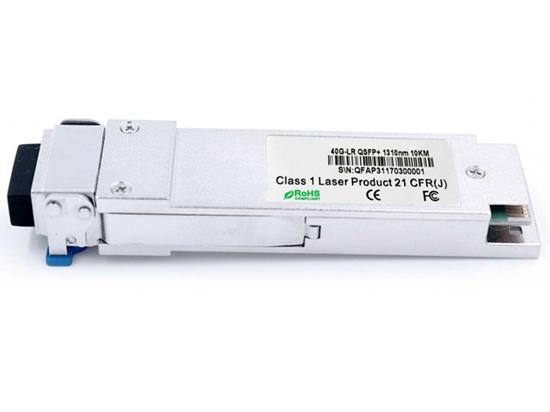

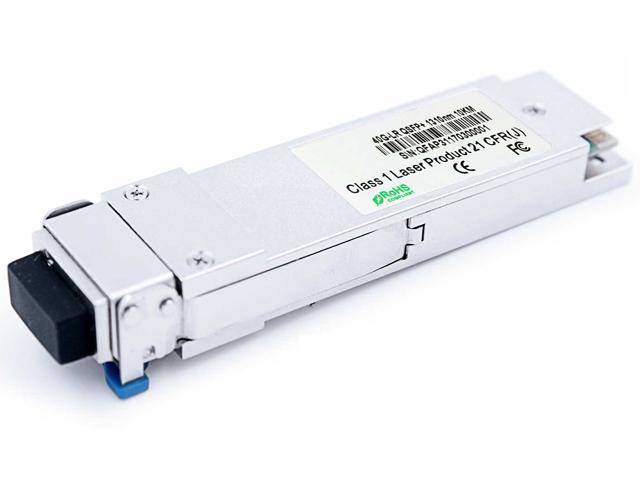

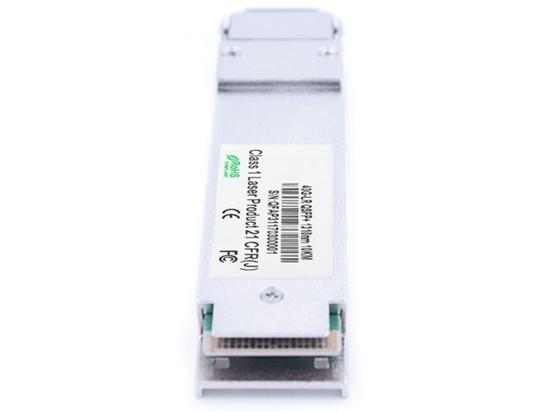

Cisco Compatible LC OM4 40G QSFP+ Transceiver Module
QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links and 4x10G OTN client interfaces over single mode fiber. They are compliant with the QSFP+ MSA, IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 requirements specified in ITU-T Recommendation G.695. Digital diagnostics functions are available via an I2C interface, as specified by the SFF-8636_SFF-8436. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. .
Features
- 4 CWDM lanes MUX/DEMUX design
- 4 independent full-duplex channels up to 11.3Gbps data rate per wavelength

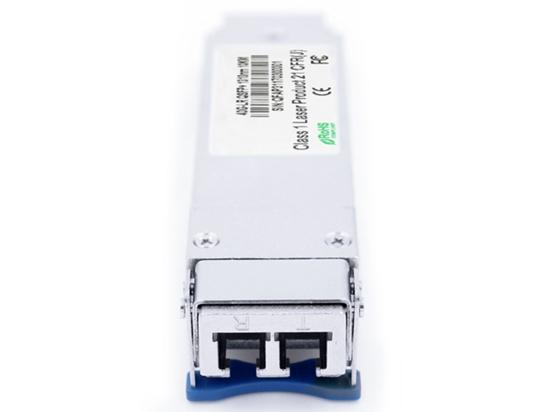

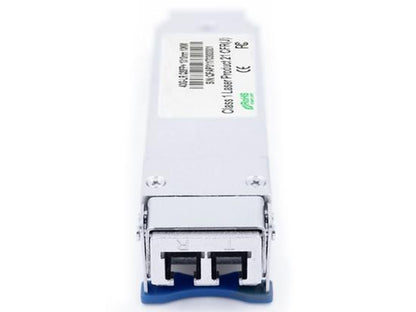

- LC optical connectors
- Operating temperature of 0ºC ~ 70ºC
- RoHS compliant and Lead Free
- Up to 10Km link length
- Power dissipation <3.5W (0~70_)
- Commercial operating temperature optional
- Compliant with IEEE802.3ba, SFF-8436
Standards & Compliance's
- QSFP+ MSA Compliant
- RoHs Compliant
- Compliant with IEEE802.3ba
- Compliant with QSFP+ MSA: SFF-8436
Applications
- 40G Ethernet
- Infiniband 4x SDR DDR QDR
- 40G Telecom Connections
Specifications
| Package | QSFP+ |
| Data Rate | Up to 4X11.3G |
| Wavelength | 1271nm/1291nm/1311nm/1331nm |
| Component | DFB/PIN |
| Output Power | -7~2.3dBm |
| Rec. Sens | -11.5dBm |
| Connector | LC |
| Case Temp | C |
| Reach | 10km |
| Multi-rate | Y |
