Fitting for Raceway Latch Duct:
✔️ ¾" W x ½" H x 6' L
✔️ 1¼" NW x ¾" H x 6' L
✔️ 1¾" NW x 1" H x 6' L
Description

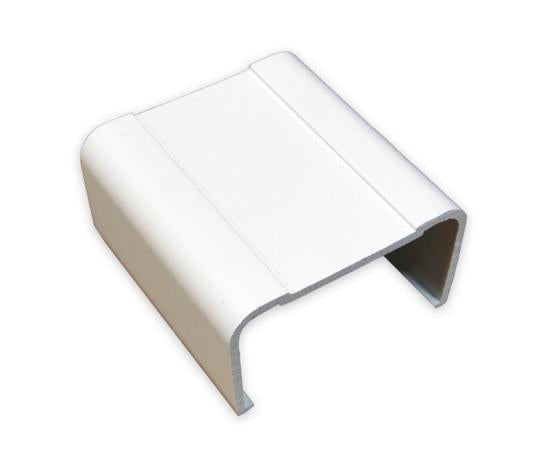

Raceway Duct Joint Cover Fitting
Our Raceway Joint Cover is used to connect two sections of raceway fittings together. With this raceway fitting, you can control, protect, and route low voltage cabling. This product is great for voice, video, and data cabling systems.
Durability & Strength
These Raceway Joint Covers made from durable Rigid Flexible PVC that is colored white to blend elegantly into any home or office decor for a sleek, professional installation. It snaps directly over a raceway ducts.
Specifications
| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| SKU | RWF-4544-JCW | RWF-4545-JCW | RWF-4546-JCW |
| DIMENSIONS | .75" | 1.25" | 1.75" |
| CHEMICAL RESISTANCE | Retains a minimum of 50% of tensile strength after 30 day exposure to 3% H2SO4, .2N NaOH, NH3, 90% Alcohol, Kerosene, 10% Igepal | ||
| FUNGUS RESISTANCE | ASTM G21 Zero Rating Per GR 3126 Requirement | ||
| CRUSH RESISTANCE | 300 lbs. per GR3126 Requirement | ||
| INSTALLATION TEMPERATURE RANGE | -18°C to 45°C (0°F to 113°F) | ||
| COLOR | WHITE | ||
| MATERIAL | RIGID FLEXIBLE PVC | ||
| OPERATING TEMPERATURE | -18°C to 58°C (0°F to 136°F) | ||
| SAFETY STANDARD | UL 2024:2014 Ed. 5 and CSA C22.2 #262:2004 Ed. 1 Optical Fiber Cable and Communication Cable Raceway Systems (Select Colors) | ||
Additional Information
| THIS FITTING IS COMPARABLE TO THE FOLLOWING PANDUIT, WIREMOLD, TYTON AND DEK PART NUMBERS | ||||
|---|---|---|---|---|
| SIZE | PANDUIT PART NUMBER | WIREMOLD | TYTON PART NUMBER | DEK PART NUMBER |
| 0.75" | CF32 | 706 | TSR1-14 | 043-0015 |
| 1.25" | CF52 | 806 | TSR2-14 | N/A |
| 1.75" | CF102 | 906 | TSR3-14 | 042-0015 |
What's in the Box
What’s in the Box
- Qty 1 - Raceway Duct Joint Cover Fitting
