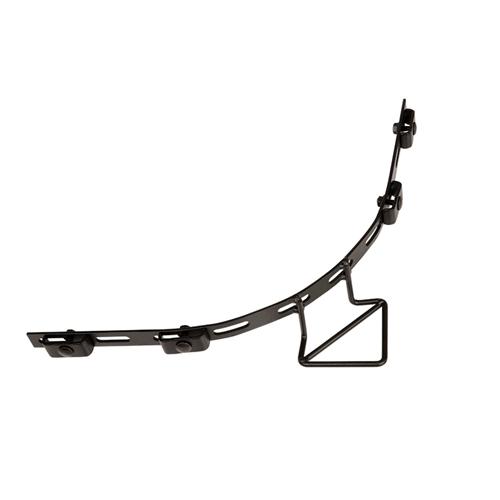

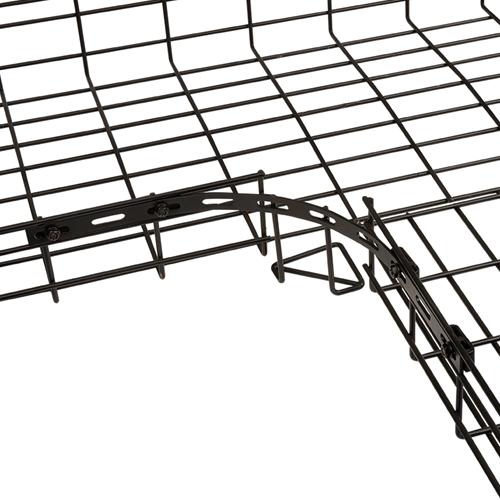

Radius Splices are a fast and easy solution for maintaining minimum cable bend radius at 90 degree bends, tees, and cross intersections. Each kit includes one radius bar and four sets of M6x20 carriage bolts, M6 nuts, and top splice washers.
Features
Features
Compatible with all tray sizes
Reduces field fabrication time
Provides a 5.5" radius at tee and cross intersections
Compatible with all tray widths
Available for 2", 4", and 6" tray depths
Black powder coat finish
Sold individually
Specifications
TECHNICAL SPECIFICATIONS
MATERIAL
HIGH-STRENGTH CARBON STEEL
FINISH
SEE TABLE BELOW
DIMENSIONS (L X W)
11.42" X 11.42"
COMPLIANCE & STANDARDS
IEC 61537
DESCRIPTION
DIMENSIONS (L x W x H)
WEIGHT
FINISH
Radius Splice for 2” Deep Tray
11.42” x 11.42” x 1.97”
0.53 lbs
Black powder coat Stocked
Radius Splice for 2” Deep Tray
11.42” x 11.42” x 1.97”
0.53 lbs
Electrogalvanized zinc
Radius Splice for 4” Deep Tray
11.42” x 11.42” x 3.94”
0.6 lbs
Black powder coat
Radius Splice for 6” Deep Tray
11.42” x 11.42” x 5.91”
0.67 lbs
Black powder coat
Additional Information
TECHNICAL ILLUSTRATIONS
What's in the Box
What's in the Box
Qty 1 - Radius Splice Kit
