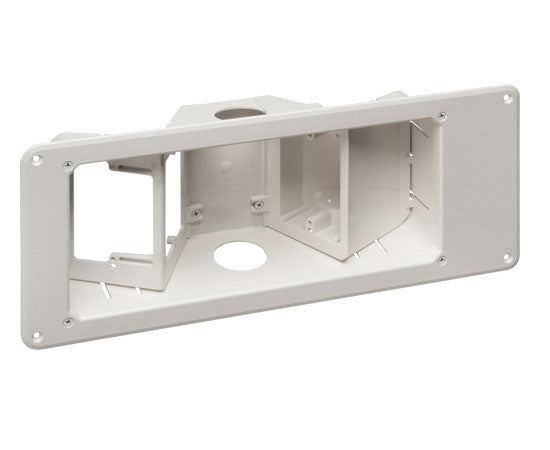

Recessed TV Box with Angled Openings

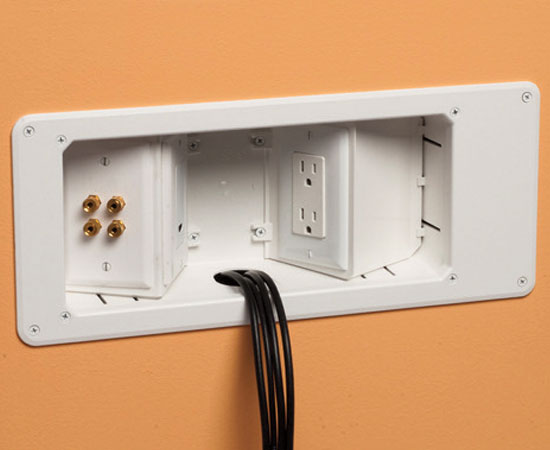

Our plastic recessed combination power and low voltage TV Box offers a secure, easy way to mount flat screen TVs flush against a wall. Designed for new or old work, this product has angled outlet boxes that take convenience to a new level.
Features
Features
- Non-metallic, paintable trim plate with angled outlet
- Available in two sizes: Standard, Large

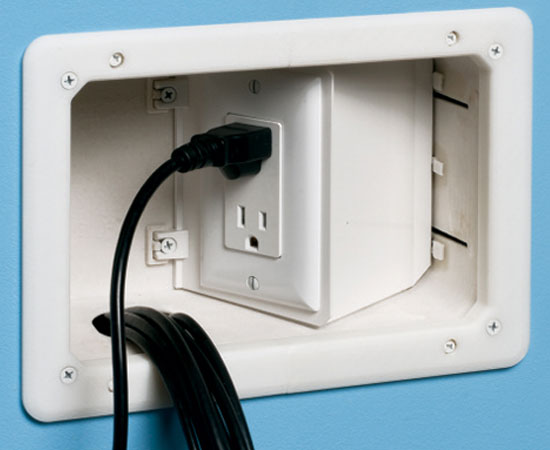

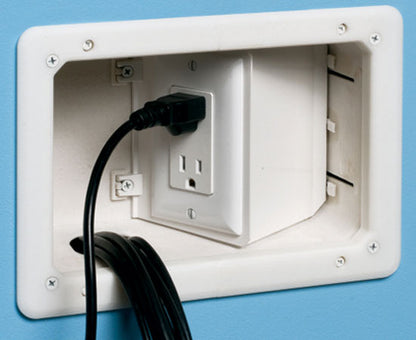

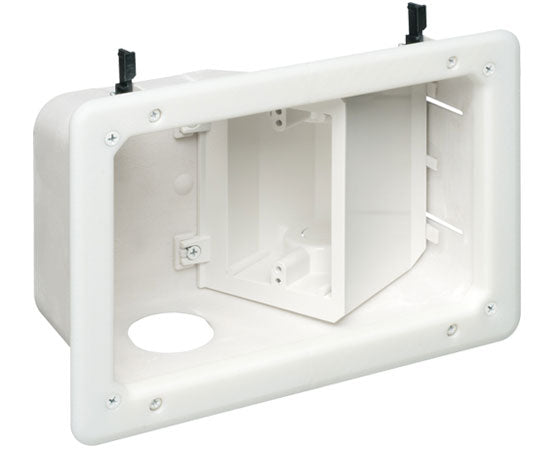

- The standard TVB712 offers power and/or low-voltage

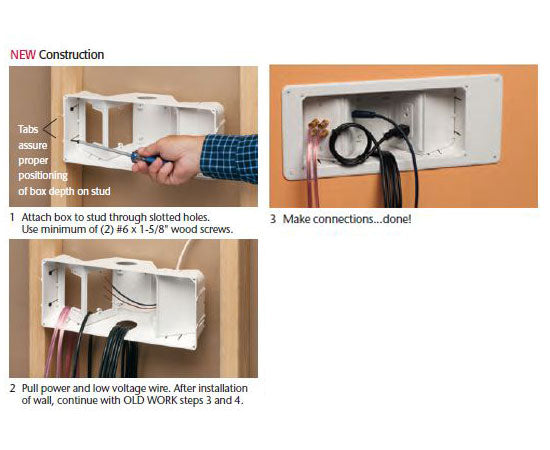

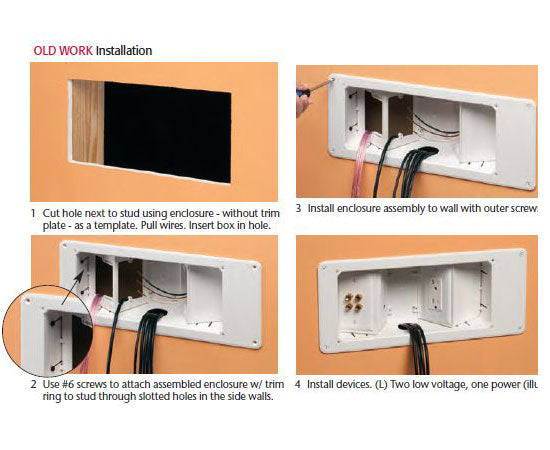

- For new or old work:- (a) Positioning tabs for 1/2" wall thickness that assure accurate placement on stud in new construction (b)For retrofit, use an enclosure (without the trim plate) as a template for the wall opening
Specifications
Specifications
| INFORMATION | TVB712 | TVB713 |
| Width | 10.210" | 17.000" |
| Height | 7.561" | 7.000" |
| Weight | 1.260 lbs | 1.606 lbs |
| Color | White | White |
| Material | Plastic | Plastic |
| UPC | 018997097125 | 018997097132 |
| Line Drawing | ||
| Specification | ||
| Instruction Sheet |
Additional Information
Additional Information
Plastic recessed TV BOX Instruction Video
What's In The Box
What's In The Box
- Qty 1 - Trim Plate
- Qty 1 - NM Cable Connector
- Qty 1 - Mounting Bracket
- Qty 1 - Low Voltage PLate
- Qty 1 - Line Voltage Box
- Qty 1 - Accessory tray
- Qty 4 - #8-32 x 1/2" Long Screws
- Qty 4 - #8 x 3/4" Long Screws
- Qty 4 - #8 x 1-1/2" Long Screws
