Description

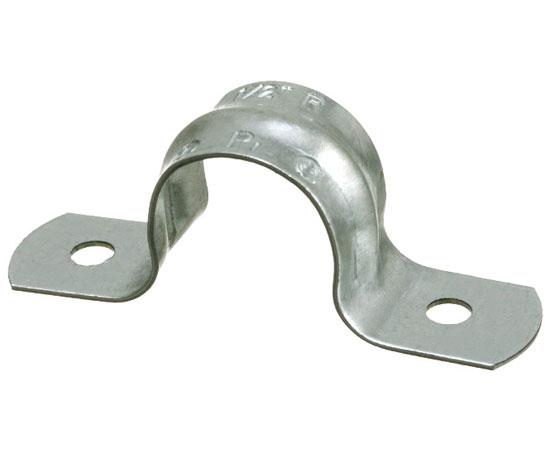

This Rigid Pipe Strap has two screw hole for easy quick mounting. This Pipe Strap can be used to secure piping to walls & ceilings.
Features
Features
- Works on Rigid conduits
- Snap-on Type
- Pated-Steel
- 2 mounting holes
Specifications

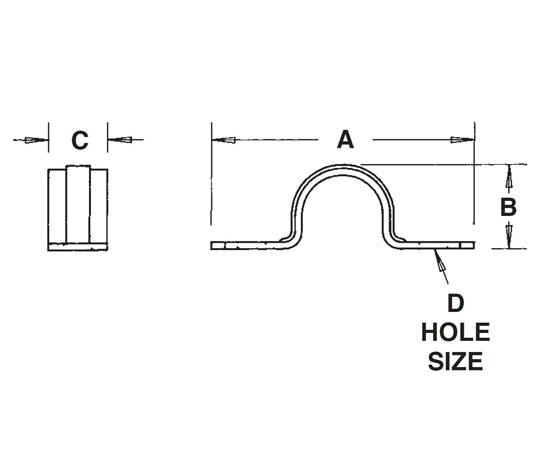

| Part Number | Hole Size | Dim A | Dim B | Dim C | Dim D |
|---|---|---|---|---|---|
| NPNB-350 | 1/2" | 2.623 | .900 | .508 | .180 |
| NPNB-351 | 3/4" | 2.850 | 1.089 | .561 | .180 |
| NPNB-352 | 1" | 3.386 | 1.365 | .750 | .250 |
| NPNB-353 | 1-1/4" | 4.205 | 1.711 | .873 | .260 |
| NPNB-354 | 1-1/2" | 4.316 | 1.901 | .943 | .265 |
| NPNB-355 | 2" | 5.105 | 2.459 | .995 | .325 |
| NPNB-356 | 2-1/2" | 5.980 | 2.855 | 1.000 | .374 |
| NPNB-357 | 3" | 6.664 | 3.559 | 1.000 | .374 |
| NPNB-358 | 3-1/2" | 7.436 | 4.030 | 1.000 | .374 |
| NPNB-359 | 4" | 7.982 | 4.647 | 1.000 | .429 |
What’s In The Box
What’s In The Box
350, 351
- Qty 50 - 2-Hole Plated Steel Rigid Straps Snap-on Type
352, 353, 354, 355, 356, 357
- Qty 25 - 2-Hole Plated Steel Rigid Straps Snap-on Type
358, 359
- Qty 10 - 2-Hole Plated Steel Rigid Straps Snap-on Type
