24" Server Cabinet, 24U/ 42U/ 45U/ 48U Standard

Description

24" Network Server Cabinet, 24U/ 42U/ 45U/ 48U Standard Configuration

The Server Cabinets are designed and built to U.S. industry standards and provide a customizable solution for data center build-outs, network rooms, or IT closets. The feature-rich, robust design can be shipped flat packed or as a custom-configured solution that is fully assembled with accessories pre-installed.

Available as an open frame or complete enclosure in multiple size combinations/colors and 5 available door options, these cabinets offer a variety of options and features to meet your specific needs.

Features

Pre-installed recessed casters combine convenient mobility with minimal added height to provide additional stability
Brush cable entry slots at front and back of top panel and sliding panels on bottom
3,000 lb. static load capacity
Ships fully assembled and can be configured with accessories to match your individual specifications

Security & Protection

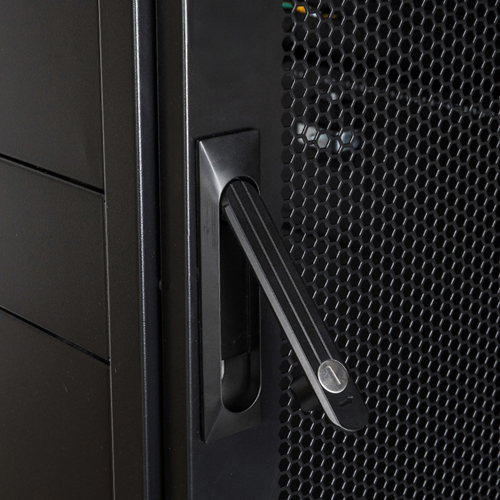

Locking Doors and side panels prevent unauthorized access to equipment
Two pairs of adjustable 19" EIA rails provide a stable mounting structure

Flexibility

Vertical cable management channel on each side features T-shaped fingers and various sizeholes/slots for organizing cables

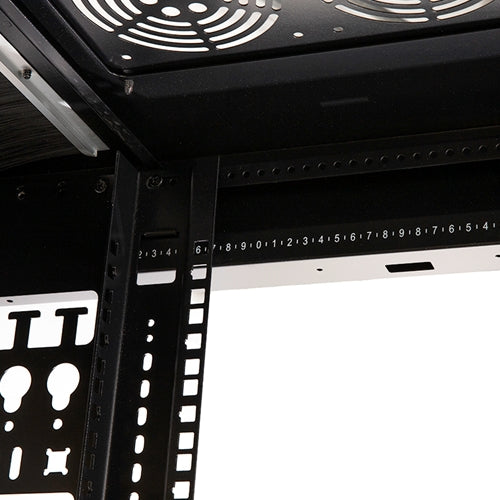

Rails and cable channels can be easily repositioned in labeled, 1 cm increments to accommodate various equipment depths

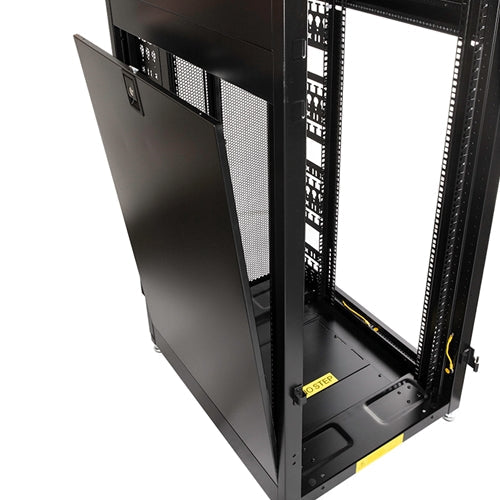

Removable and lockable half height side panels
Doors hinge on either side and swing open 180° to provide superior access for installation and maintenance of equipment

Multi-Use

Available in multiple size combinations to fit in a variety of environments
Adaptable for use in data center build outs, computer rooms or data closets

Specifications

TECHNICAL SPECIFICATIONS
Product Type	Server Cabinet
Frame Material	Heavy Gauge Cold Rolled Steel
Finish	Black Or White Powder Coat
Dimensions (H x W x D)	Varies By Size
Rack Unit Quantity	24U*, 42U,45U, 48U or 52U

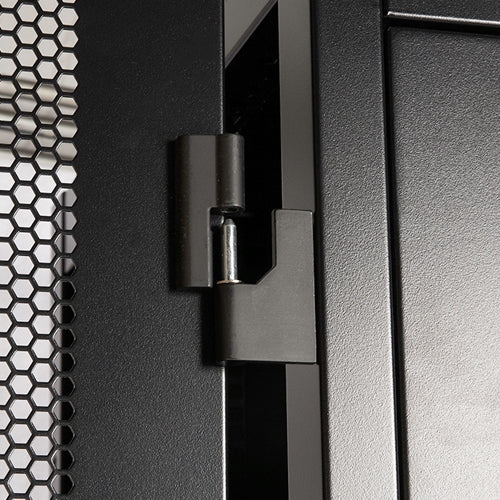

Standard Configuration Front Door	Removable, Reversible & Lockable Mesh, Opens Full 180°, 2 Point Latch, Quick Release Hinges
Standard Configuration Rear Doors	Removable, & Lockable Split Mesh, Opens Full 180°, 2 Point Latch, Quick Release Hinges
Side Panels	(2 Per Side) Half Height, Removable & Lockable
Top Panel	10.5” x 13.5” Removable Vented Panel For Optional Fans, (2) 3.5” x 18” Brush Cable Managers
Bottom Panel	(2) 4” x 15” Sliding / Removable Panels, (2) 10” x 15” Sliding / Removable Panels
Equipment Support	Two Pairs Of 14 Gauge Mounting Rails, 1.75” RU Spacing, Marked & Numbered On Rails; 19” W, EIA-310-D Universal Vertical Hole Spacing
Grounding	14 AWG Ground Wire Connects Doors & Side Panels To Cabinet Frame
Static Loading Capacity	3,000 lbs.
Included Accessories	(4) Adjustable Leveling Feet, (4) Casters, (8) Grounding Kits, (2) Lacing Channels, (2) Keys
Compliance & amp; Standards	ANSI/EIA RS-310D, IEC60297-2, DIN41194; Part 1, DIN41494; Part 7
