Description
Description

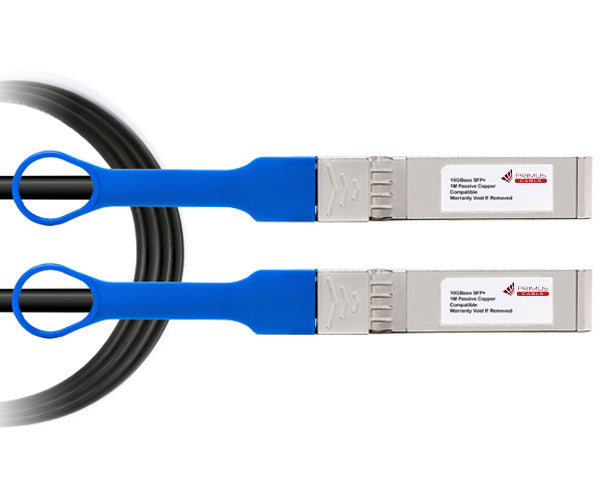

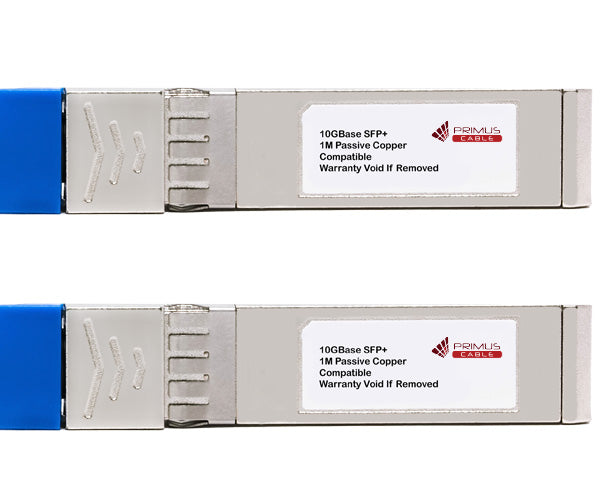

SFP+ 10GbE Copper Twinax Direct Attach Cable
The direct-attach copper cables are based on the 10G Ethernet IEEE 802.3ae standard and are programmed to be fully compatible and functional with its brand's own designated switching devices. The active transmitter can be configured to compensate for different cable lengths. The active SFP+ cable is a low-cost alternative for short-reach applications.
Features
Features
- Up to 11 GBd bi-directional data links
- Hot-pluggable SFP+ footprint
- AC coupled inputs and outputs
- 100 Ohm differential impedance
- Enhanced EMI design
- Single power supply 3.3V
- Operating Temperature Range 0°C to 70°C
Compliance
- Meets MSA SFF-8431
- 10G FC
- RoHS Compliant
Applications
- 10GBASE Ethernet
- 10GB Fiber Channel
- Serial Data Transmission
Specifications
Specifications
| Connector Type | SFP+ to SFP+ |
| Max Data Rate | 10GB |
| Wire AWG | 30 AWG Twinax |
| Cable Type | Active |
| Power Supply | 3.3v |
| Operational Temperature Range | 0°C to +70°C |
