Side Drops

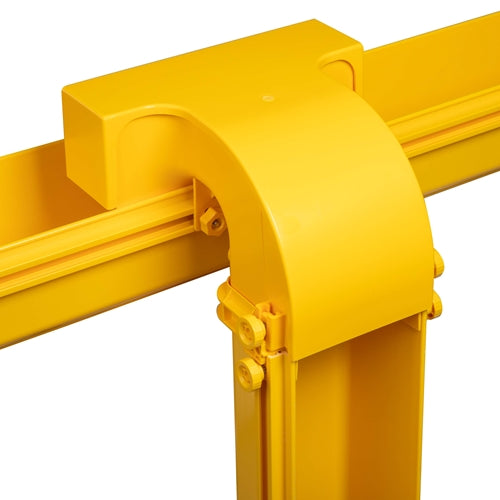

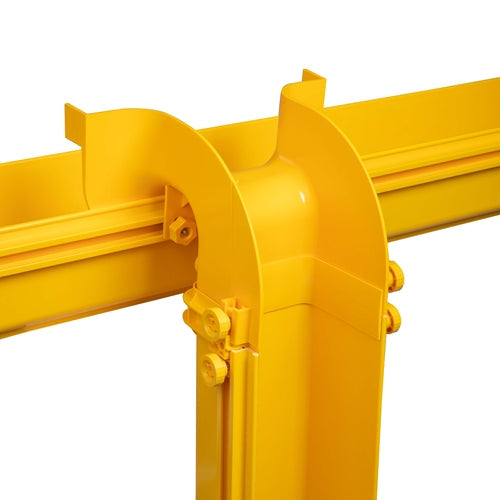

This Side Drop enables a clean, vertical cable exit from a horizontal fiber tray run to a 5" vertical channel. Designed for flexibility, it allows tool-free, snap-in installation anywhere along a straight channel. The included snap-on cover ensures cable protection while maintaining minimum bend radius requirements. Compliant with UL2024 and UL94-V0 standards.
Features
Features
- Tool-free installation – Easily installs without tools for quick, hassle-free setup.

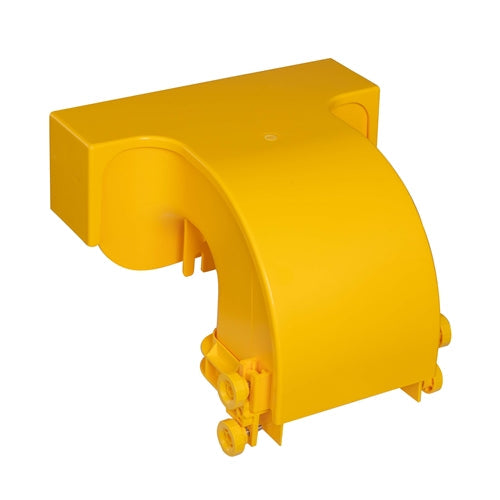

- Snap-on cover – Includes a secure cover to protect and manage fiber cables.
- UL2024 compliant – Meets UL standards for optical fiber cable routing systems.
- UL94-V0 rated – Fire-resistant material for enhanced safety in cable environments.
- Protects bend radius – Maintains minimum cable bend radius to ensure signal integrity.
Specifications
| Document | Description | Download |
|---|---|---|
| Spec Sheet | Product overview and specifications | |
| Fiber Cable Tray System | Installation Guide | |
| 5” Tech Drawing | Technical drawing for 5” Side Drop model |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| MATERIAL | LIGHTWEIGHT, FLAME-RETARDANT PVC (V-0 RATED) |
| COLOR | YELLOW |
| DIMENSIONS (L X W X H) | 10.3” X 10.2” X 5.9” |
| WEIGHT | 1.6 LBS |
| HARDWARE | 2 SETS OF T-BOLTS & HEX NUTS (INCLUDED) |
| COMPLIANCE & STANDARDS | UL2024 & UL94-V0 |
| SELLING UNIT | 1 PIECE |
Additional Information
Technical Illustration
What's in the Box
What's in the Box
-

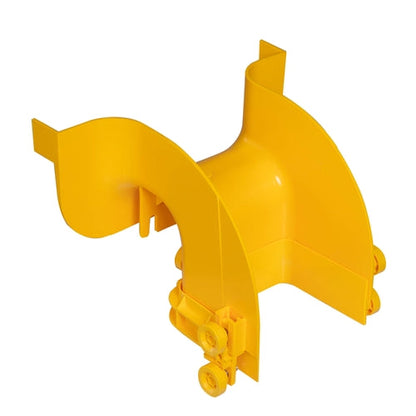

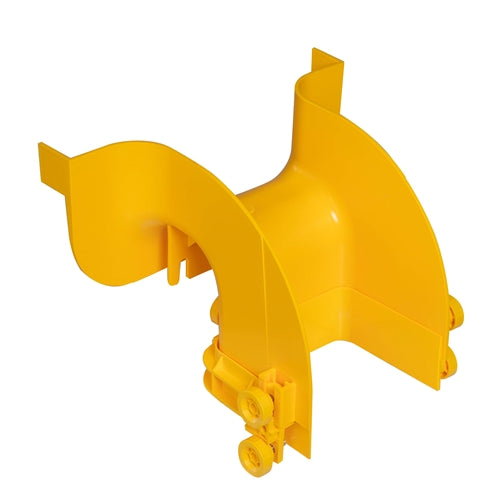

Qty 1 - Side Drop
- Qty 1 - Snap-on cover included
- Qty 2 - Sets of Plastic T-bolts and Hex Nuts
