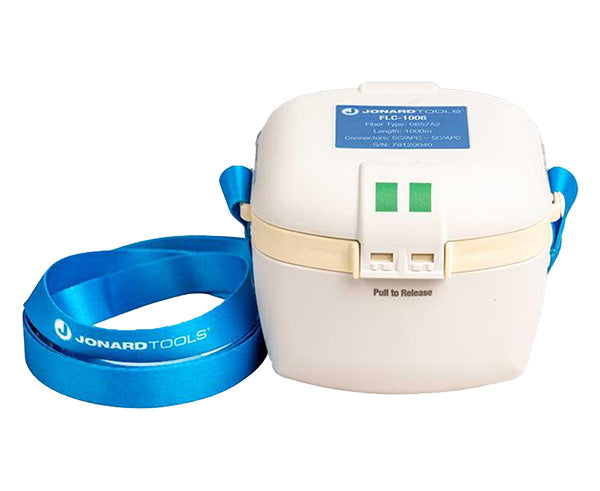

Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/APC

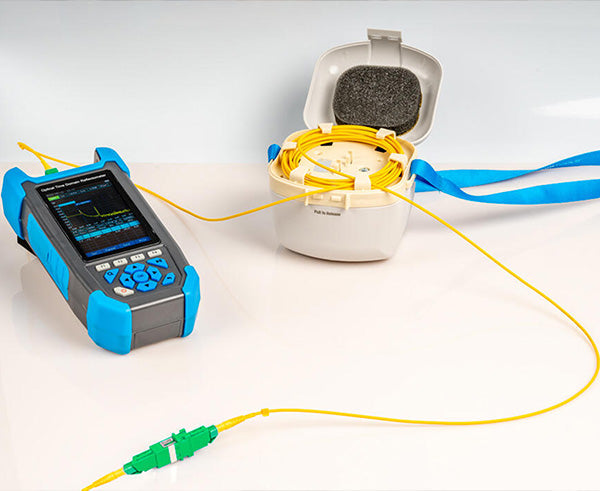

Designed with unique compact housing and 1000 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR.
Features
Features

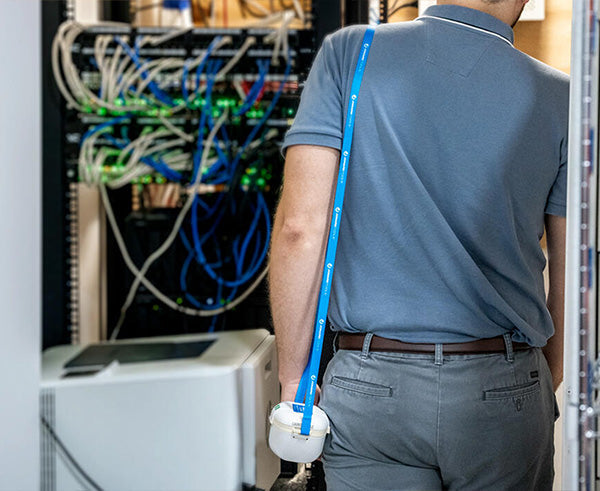

Compact housing and shoulder strap make this perfect for on-the-go use
Terminated with an SC/APC connectors for use on SC/APC ports

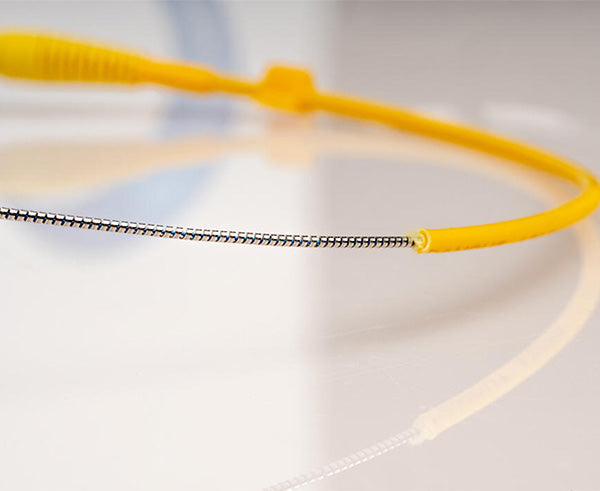

Steel, interlocked armor under the fiber jacket protects the fiber from accidental damage
Polishing types are color coded for quick and easy identification of the launch cable

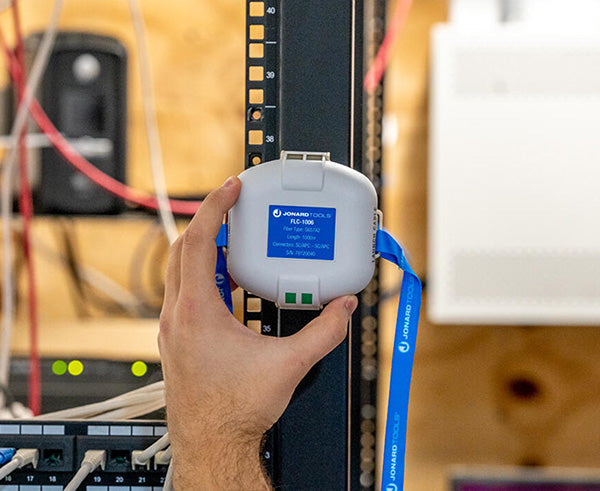

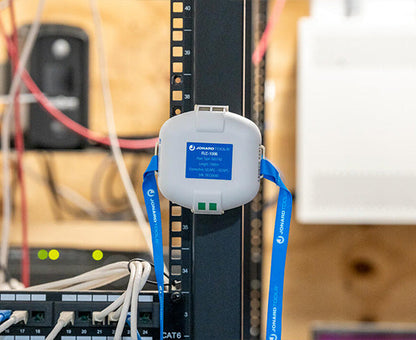

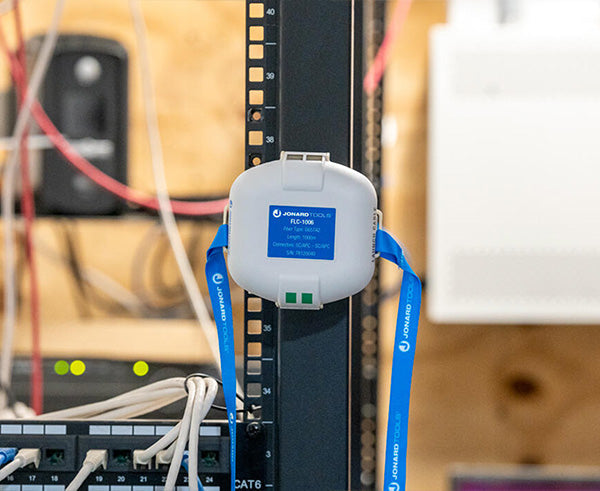

Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks
3281 ft (1000 m) length of fiber is perfect for most OTDR testing applications
Specifications
TECHNICAL SPECIFICATIONS
CABLE LENGTH
3280.24 FT (1000 M)
CONNECTOR TYPES
SC/APC, LC/UPC
INPUT/OUTPUT LENGTH
4.9 FT (1.5 M)
MAX INSERTION LOSS @ 1310 NM
≤ 0.35 DB/KM
MAX INSERTION LOSS @ 1550 NM
≤ 0.22 DB/KM
MAX INSERTION LOSS @ 800 NM
≤ 2.50 DB/KM
MAX INSERTION LOSS @ 1300 NM
≤ 0.70 DB/KM
SM CONNECTOR INSERTION LOSS
≤ 0.1 DB
MM CONNECTOR INSERTION LOSS
≤ 0.15 DB
RETURN LOSS
RL ≥ 65 DB (APC); RL ≥ 55 DB (UPC)
FIBER TYPE
G657A2
DIMENSIONS
4.25 IN X 4.15 IN X 3.4 IN (10.8 CM X 10.54 CM X 8.64 CM)
