Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/UPC

Name: Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/UPC
Brand: Jonard Tools
SKU: FLC-1005
Price: 274.95 USD
Availability: InStock

Jonard Tools

SKU:FLC-1005

Price: $274.95

*Shipping calculated at checkout

Sale Sold out

Quantity

⚠ Various lead times may apply to this product. Please contact us for more details. ⚠

View full details

Description

Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/UPC

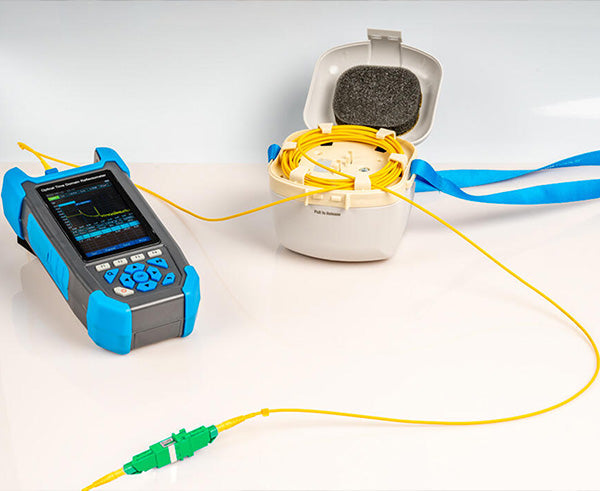

Designed with unique compact housing and 1000 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR.

Features

Compact housing and shoulder strap make this perfect for on-the-go use
6.56 ft (2 m) long pigtails are terminated with an SC/UPC connector on one side and an LC/UPC connector on the other side for versatility

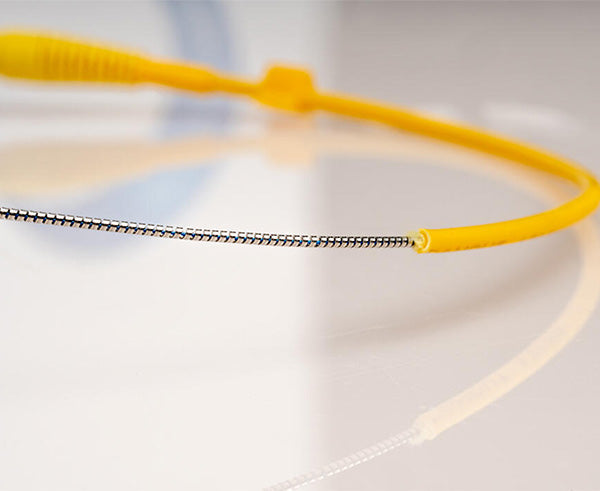

Steel, interlocked armor under the fiber jacket protects the fiber from accidental damage
Polishing types are color coded for quick and easy identification of the launch cable
Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks
3281 ft (1000 m) length of fiber is perfect for most OTDR testing applications

Specifications

TECHNICAL SPECIFICATIONS
CABLE LENGTH	3281 FT (1000 M)
CONNECTOR TYPES	SC/APC, LC/UPC
INPUT/OUTPUT LENGTH	4.9 FT (1.5 M)
MAX INSERTION LOSS @ 1310 NM	≤ 0.35 DB/KM
MAX INSERTION LOSS @ 1550 NM	≤ 0.22 DB/KM
MAX INSERTION LOSS @ 800 NM	≤ 2.50 DB/KM
MAX INSERTION LOSS @ 1300 NM	≤ 0.70 DB/KM
SM CONNECTOR INSERTION LOSS	≤ 0.1 DB
MM CONNECTOR INSERTION LOSS	≤ 0.15 DB
RETURN LOSS	RL ≥ 65 DB (APC); RL ≥ 55 DB (UPC)
FIBER TYPE	G657A2
LENGTH	3281 FT (8333.74 CM)
WEIGHT	0.78 LB (354.12 G)
UPC #	810053351888
