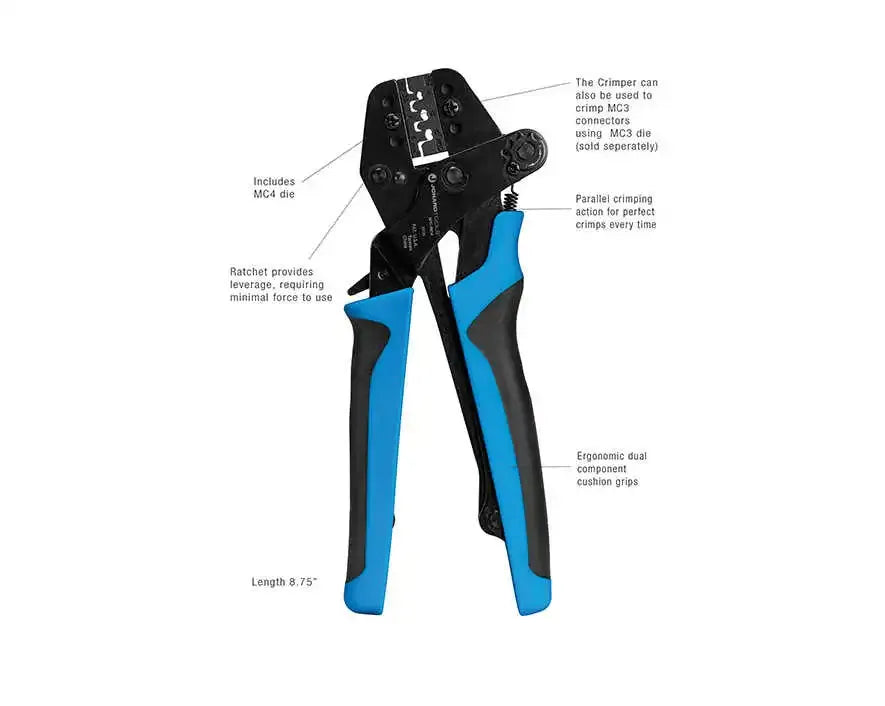

Designed to crimp MC4 connectors onto 14, 12, or 10 AWG (2.5 / 4.0 / 6 / 10 mm²) solar panel wire, this crimper is the perfect tool for installing and maintaining solar panel connectors. Able to crimp MC3 connectors using an MC3 die (SPD-MC3), sold separately and Lifetime Warranty.
Features
Features

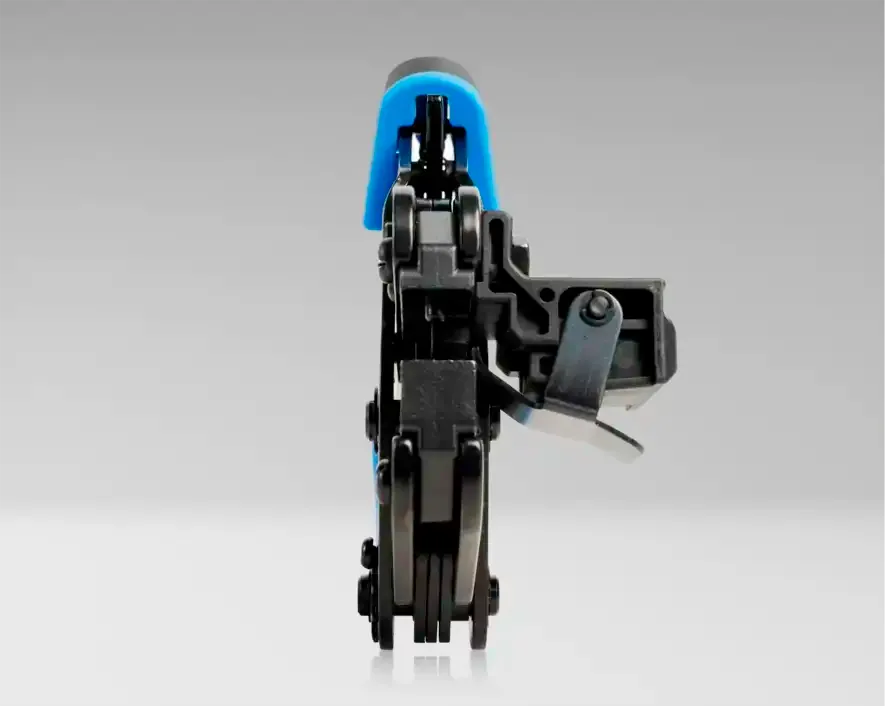

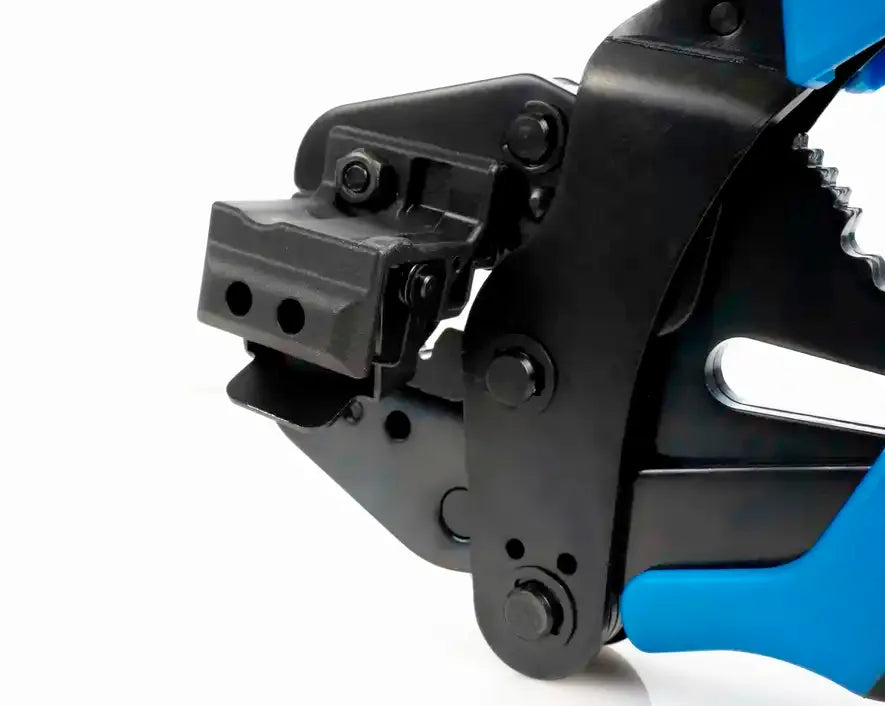

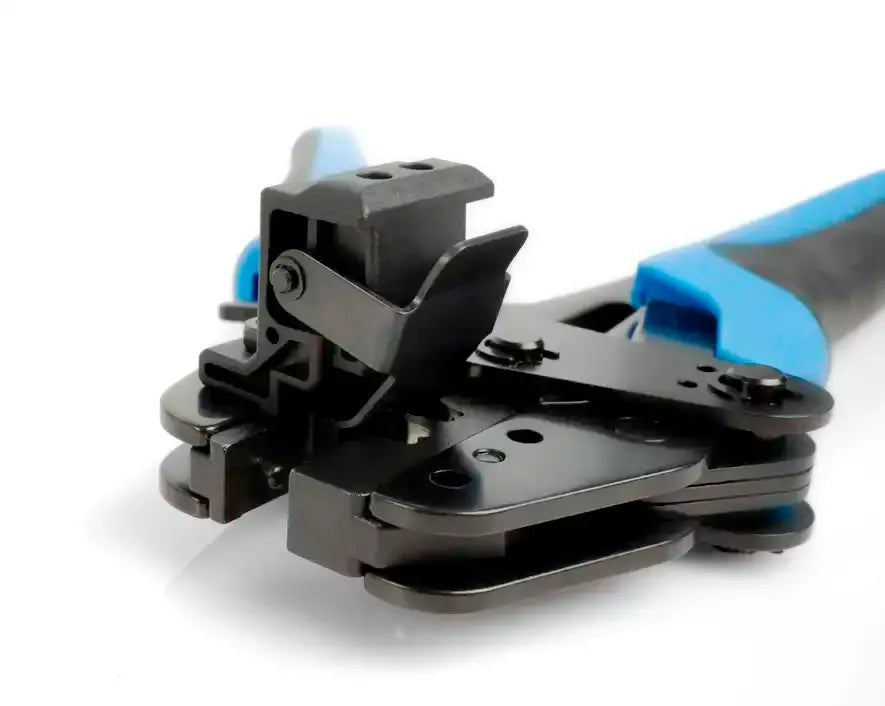

Included locator holds MC4 connectors in place for quick and easy crimping

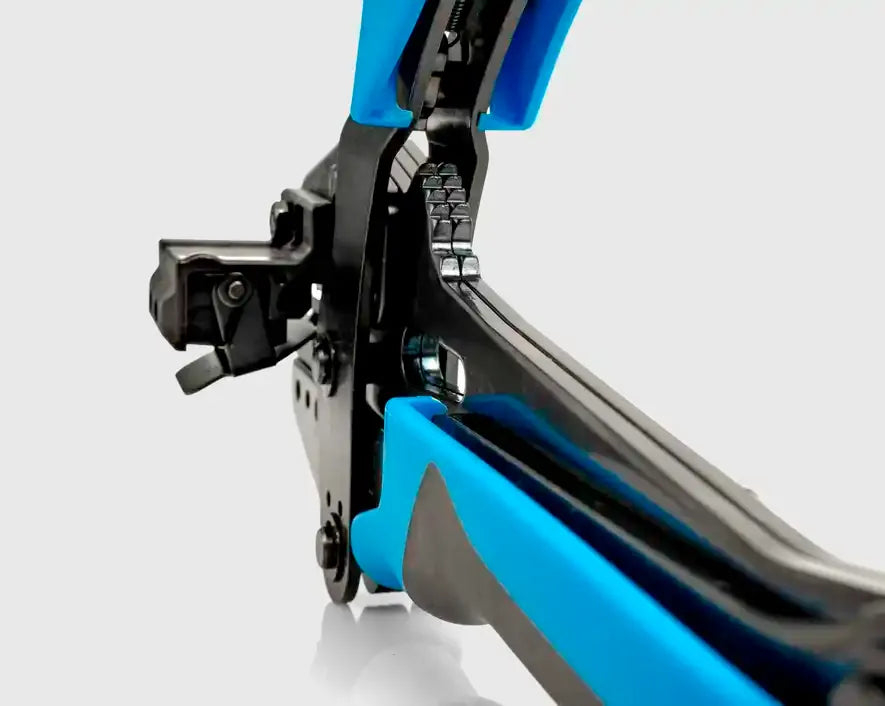

Parallel jaws with adjustable pressure-regulating gear and self-locking design crimp solar panel connectors perfectly every time
Built-in ratchet for ease of use
Made of hardened carbon steel with a black oxide finish for strength and durability
Dual component grip provides greater comfort and ergonomics
Specifications
Specifications
TECHNICAL SPECIFICATIONS
APPLICATION TYPE
MC4 SOLAR PANEL CRIMPING
CONNECTOR TYPE
MC4 MALE/FEMALE SOLAR PANEL CONNECTORS, CAN ALSO CRIMP MC3 CONNECTORS USING A SEPARATE DIE
WIRE DIAMETER
14, 12, OR 10 AWG OR (2.5 / 4.0 / 6 / 10 MM²)
MATERIAL
CARBON STEEL WITH BLACK OXIDE
DIMENSIONS
8.75 IN X 1.63 IN X 3 IN (22.23 CM X 4.14 CM X 7.62 CM)
WEIGHT
1.37 LB (621.4 G)
UPC #
810132438226
Additional Information
Additional Information
Product Videos
JONARD TOOLS SOLAR PANEL CRIMPER (SPC-MC4L) PRODUCT VIDEO
What’s In The Box
What’s In The Box

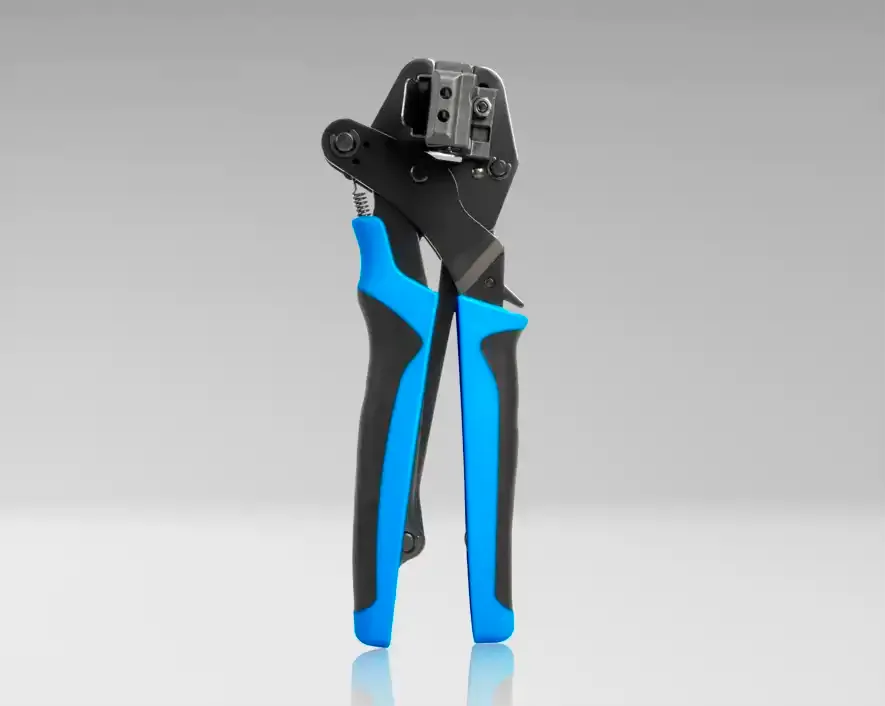

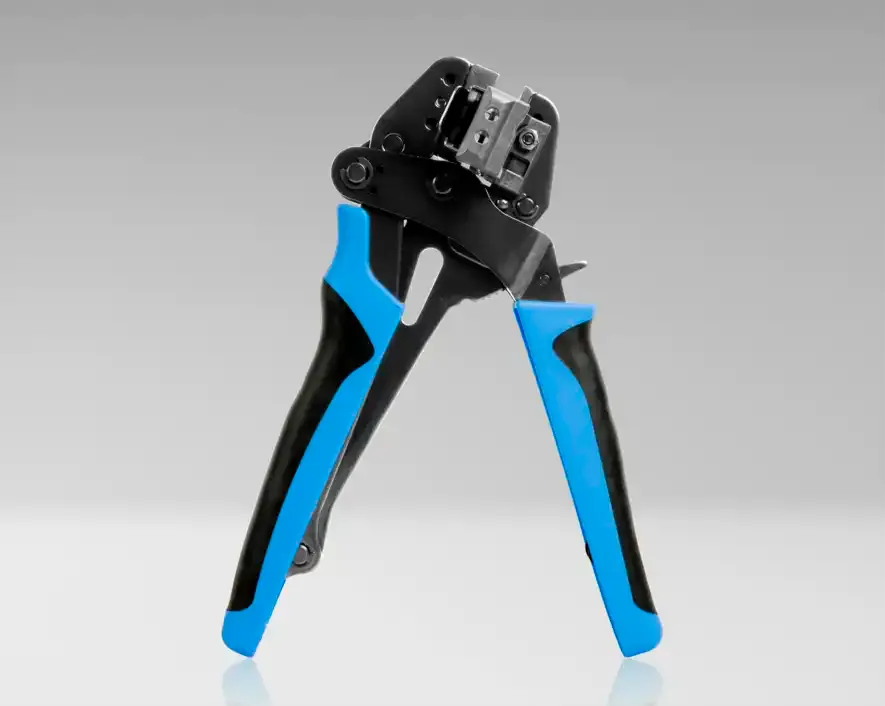

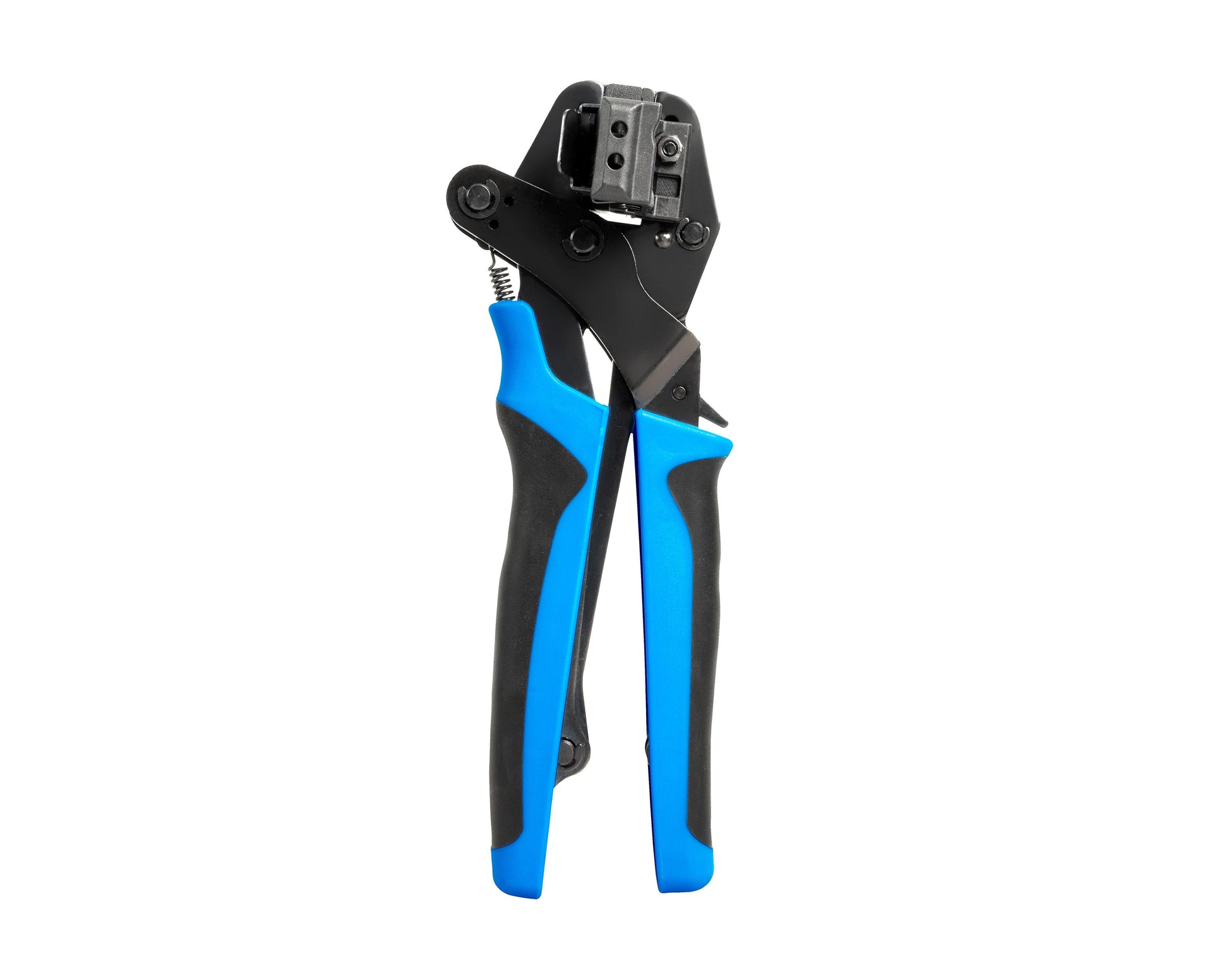

Qty 1 - SPC-MC4L, Solar Panel Crimper with Locator and MC4 Die
