Description

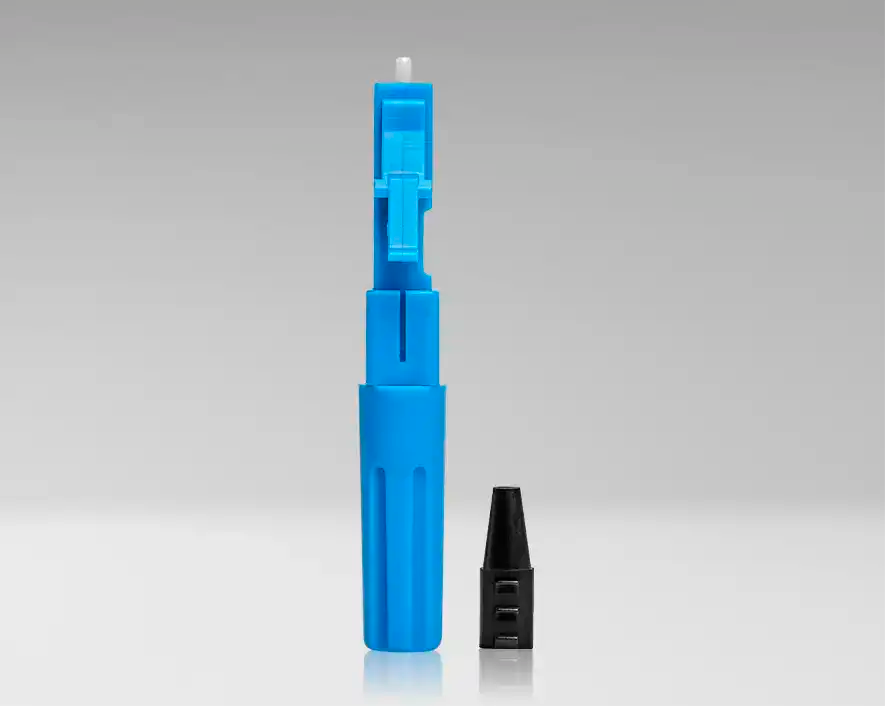

Jonard Tools' Mechanical Connectors for fiber optic cables provide a reliable and efficient solution for connectorizing 250 µm and 900 µm coated fibers. These connectors are ideal for quick field installations, offering a simple, tool-free setup that saves time and enhances productivity.
Features
Features
- LC/UPC polish for excellent performance and minimal signal loss
- Works with both 250 µm and 900 µm coated fiber cables
- Easy to use with no special tools required, making it ideal for quick fieldwork
- Built to withstand demanding environments, ensuring long-lasting reliability
- Includes (10) LC/UPC mechanical connectors
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CONNECTOR TYPE | LC |
| POLISH TYPE | UPC (SINGLEMODE) |
| FIBER TYPE | SINGLEMODE |
| CABLE TYPES | 900 μM & 250 μM |
| INSERTION LOSS | AVG ≤0.3DB, MAX ≤0.5DB |
| RETURN LOSS | APC ≥45DB |
| OPERATING TEMPERATURE | -20/+85℃ |
| STANDARDS | TIA/EIA 604-3 |
| DIMENSIONS | 1.81” X 0.35” X 0.2” (4.6 CM X 0.89 CM X 0.51 CM) |
| WEIGHT | 0.1 LB (45.4 G) |
| UPC # | 810132438691 |
Additional Information
| Product Videos | |
|---|---|
JONARD TOOLS RAPID LINC CONNECTOR GUIDE (SRL-LCU) |
What's in the Box
What's in the Box
- Qty 10 – LC/UPC mechanical fiber connectors
