Description
Description

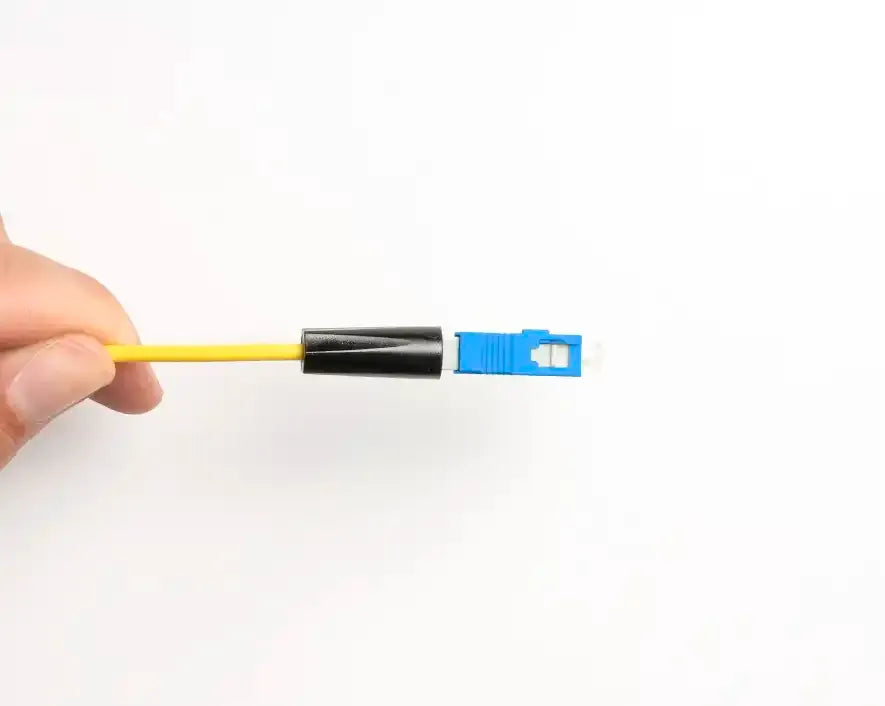

Jonard Tools' Mechanical Connectors for fiber optic cables provide a reliable and efficient solution for connectorizing 250 µm and 900 µm coated fibers. These connectors are ideal for quick field installations, offering a simple, tool-free setup that saves time and enhances productivity.
Features
Features
- SC/UPC polish for excellent performance and minimal signal loss
- Works with both 250 µm and 900 µm coated fiber cables
- Easy to use with no special tools required, making it ideal for quick fieldwork
- Built to withstand demanding environments, ensuring long-lasting reliability
- INCLUDES: (10) SC/UPC mechanical connectors
Specifications
Specifications
| Specification | Description | |
|---|---|---|
| Connector Type | SC | |
| Polish Type | UPC (Singlemode) | |
| Fiber Type | Singlemode | |
| Cable Types | 900 μm & 250 μm | |
| Insertion Loss | AVG ≤0.3dB, MAX ≤0.5dB | |
| Return Loss | UPC ≥50dB | |
| Operating Temperature | -40/+85℃ | |
| Standards | TIA/EIA 604-3 | |
| Dimensions | 2” x 0.35” x 0.43” (5.08 cm x 0.89 cm x 1.09 cm) | |
| Weight | 0.1 lb (45.4 g) | |
| UPC # | 810132438516 | |
Additional Information
Additional Information
| Product Videos | |
|---|---|
JONARD TOOLS RAPID LINC CONNECTOR GUIDE (SRL-SCU) |
What's in the Box
What's in the Box
- Qty 10 – SC/UPC mechanical fiber connectors
