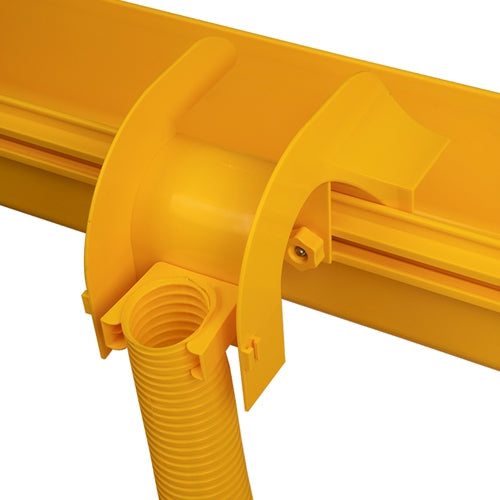

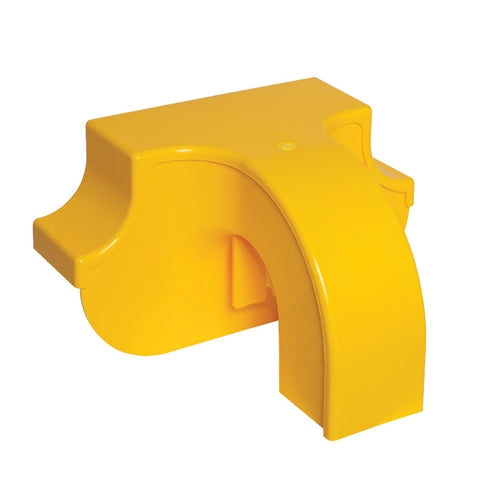

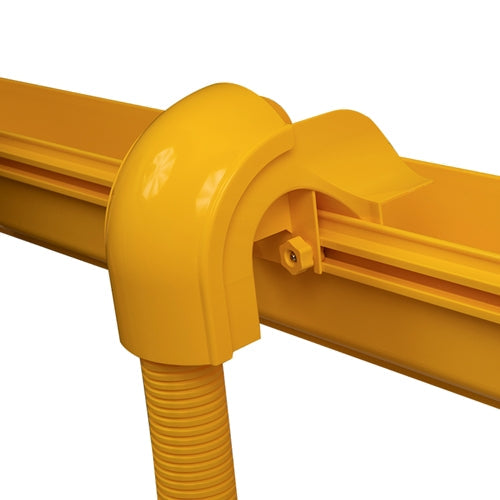

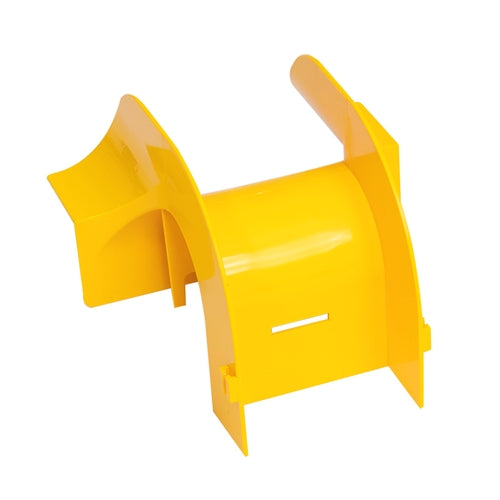

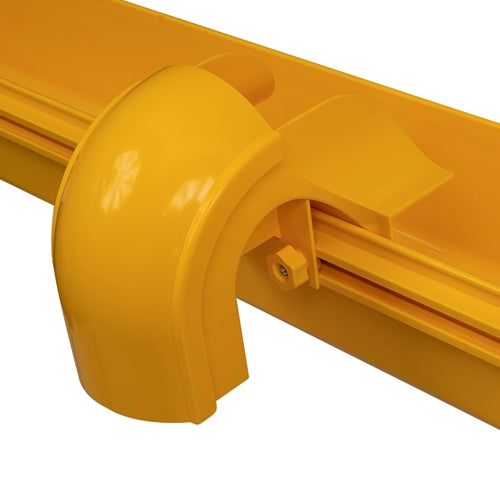

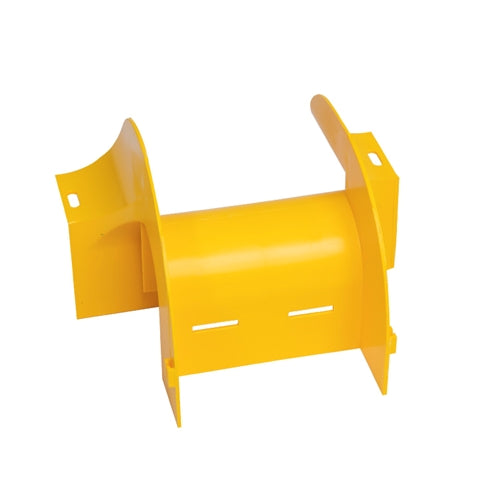

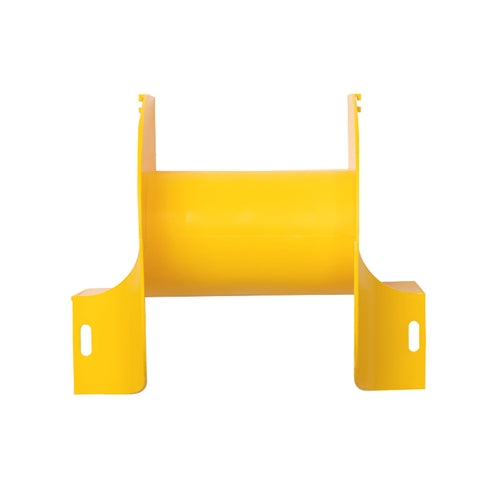

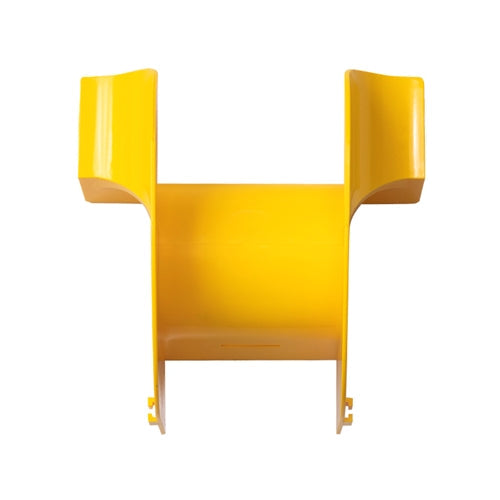

Side mounted spill overs provide a vertical exit from a horizontal fiber tray run, allowing cables to route into cabinets and racks below. Tool-free installation allows this spill over to be located and/or repositioned anywhere along a straight channel section.
Features
Features
Use with appropriate CM-T4-4754-H3 Flexible Hose and CM-T4-4755-U4 Hose Bracket (each sold separately) to protect cables throughout the vertical drop
Connects to Straight Channel product to provide a secure vertical pathway
Maintains minimum cable bend radius requirements
Tool-free installation
Lightweight, flame-retardant PVC (V-0 rated)
Includes 2 sets of plastic T-bolts and hex nuts
Snap-on cover included
UL Listed
Specifications
TECHNICAL SPECIFICATIONS
PRODUCTS
2.5” WIDE SPILL OVER
3.5” WIDE SPILL OVER
5” WIDE SPILL OVER
Material
Lightweight, flame-retardant PVC (V-0 rated)
Color
Yellow
Dimensions (L x W x H)
10.1” x 8.7” x 5.6”
7.7” x 7.3” x 5.6”
8,5” x 8.75” x 8.125”
Weight
0.8 lbs
0.85 lbs
0.90 lbs
Hardware
1 pc each plastic T-bolt and hex nut (included)
2 sets of plastic t-bolt and hex nuts (included)
Compliance & Standards
UL2024 & UL94-V0
Selling Unit
1 set
Additional Information
TECHNICAL ILLUSTRATION & ANIMATION
What's in the Box
What's in the Box
Qty 1 - Wide Spill Over with Cover
Qty 1 - Snap-on cover included
Qty 2 - Sets of Plastic T-bolts and Hex Nuts
