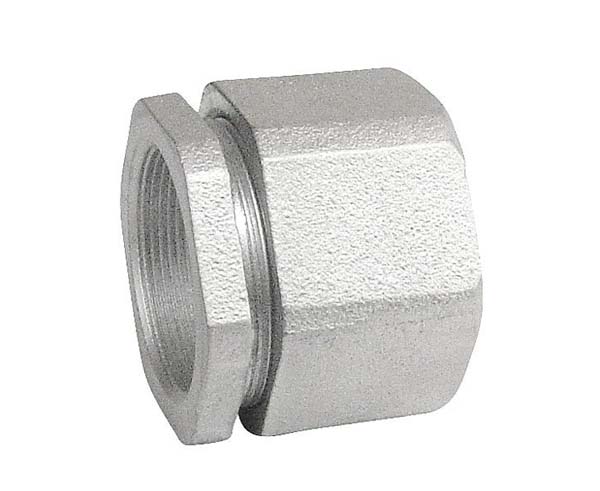

Three Piece Coupling, Malleable Iron

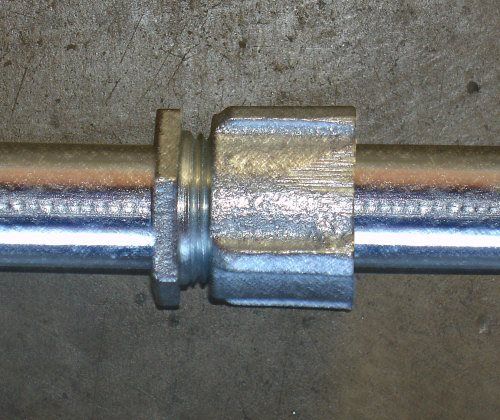

Three piece couplings are used to connect threaded rigid or IMC conduits that are not able to be turned. Primus Cable three piece couplings provide concrete tight connections. Primus Cable heavy gauge construction maintains mechanical protection and solid grounding of one conduit to another. Three piece couplings are zinc electroplated for excellent corrosion protection in damp locations.
Features
Features
- Primus Cable three-piece couplings are crafted from malleable iron for exceptional strength in connecting threaded rigid or IMC conduits that cannot be rotated
- Three-piece design enables easy installation and removal in confined spaces without twisting conduit bodies
- Heavy-gauge construction provides continuous mechanical protection and ensures a solid grounding path between conduit sections
- Zinc-electroplated finish offers superior corrosion resistance for damp locations and enhances long-term durability
- Concrete-tight joints maintain a secure, leak-proof seal to prevent moisture infiltration in commercial and industrial environments
- Available in trade sizes from 1/2" to 6" to accommodate a wide range of electrical conduit systems
- Engineered for code-compliant performance in demanding field installations requiring reliable, serviceable couplings
Specifications
Specifications
| Part Number | Trade Size | Dim A | Dim B | Dim C |
|---|---|---|---|---|
| NPNB-3PC-50 | 1/2" | 16 |
10.25 |
13.25 |
| NPNB-3PC-75 | 3/4" | 10.875 |
3.9375 | 7.375 |
| NPNB-3PC-100 | 1" | 10.875 |
3.9375 |
7.375 |
| NPNB-3PC-125 | 1-1/4" | 11 |
3.9375 |
10.875 |
| NPNB-3PC-150 | 1-1/2" | 11 |
3.9375 |
10.875 |
| NPNB-3PC-200 | 2" | 11 |
7.875 |
10.875 |
| NPNB-3PC-250 | 2-1/2" | 10.875 |
7.875 |
7.375 |
| NPNB-3PC-300 | 3" | 11 |
3.9375 |
10.875 |
| NPNB-3PC-350 | 3-1/2" | 10.875 |
10.25 |
7.375 |
| NPNB-3PC-400 | 4" | 10.875 |
3.9375 |
7.375 |
| NPNB-3PC-500 | 5" | 7.3 |
3.9375 |
7.375 |
| NPNB-3PC-600 | 6" | 9.7 |
7.875 |
7.375 |
What's in the Box
What’s in the Box
- Qty 1 - Three Piece Coupling, Malleable Iron
