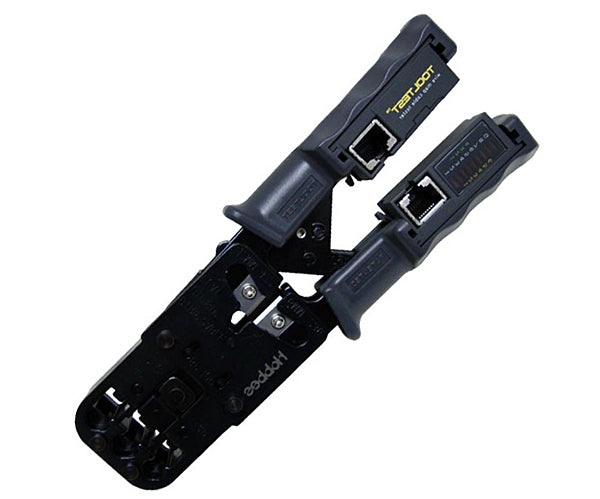

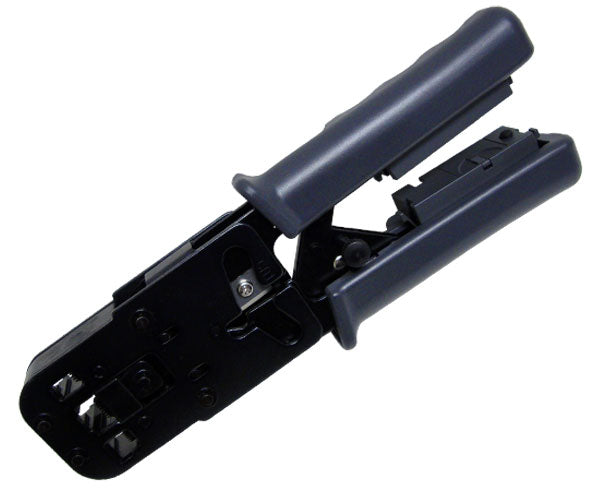

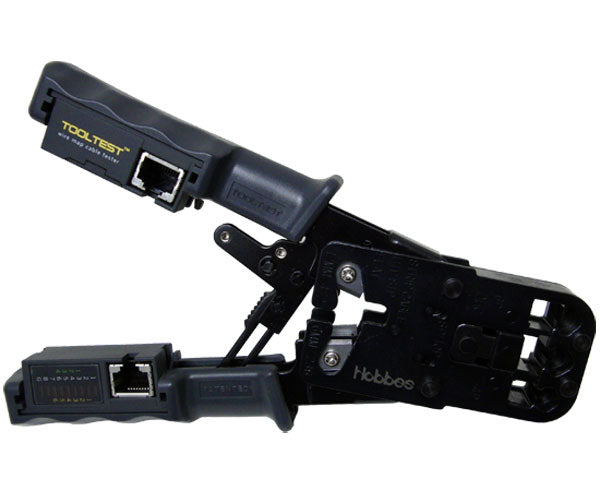

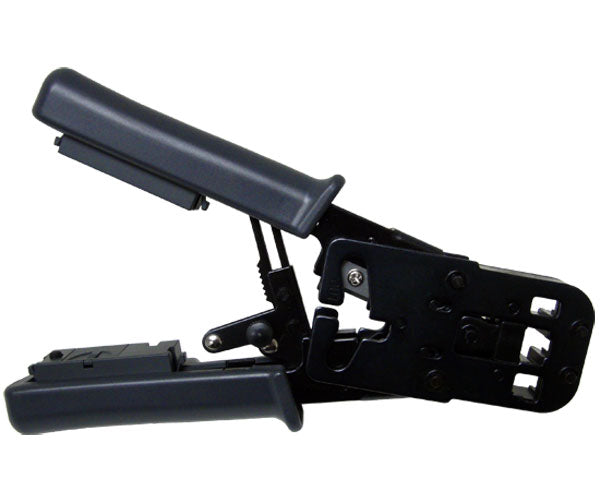

ToolTest All in One Cable Tester and Crimping Tool

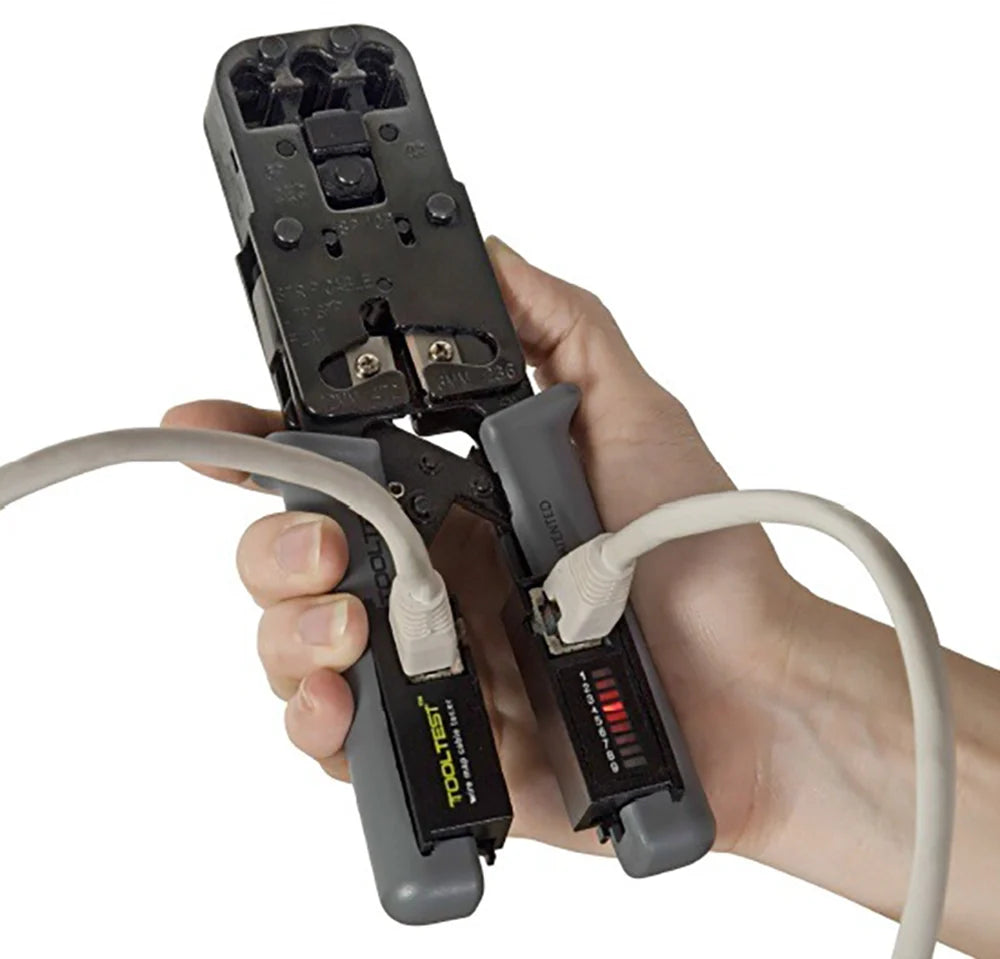

The ToolTest All in One Cable Tester is a small hand held cable mapping tester and crimping tool in one handy device. It enables network professionals to quickly and easily test twisted pair Ethernet cable for wiring continuity, opens, shorts, and mis-wires. With a single push of the TEST button, the Tooltest crimping tool will automatically test cable and indicate the result of the cables pin to pin configuration.
With its unique combination of a cable tester and a crimping tool in one, it is the smallest and most convenient and innovative tool in the market worldwide today.
Features
Features
- Testing for both UTP and STP cable
- Testing cable for continuity, opens, shorts, mis-wires
- Pin to pin indication
- Test mode selection for run once or test repeatedly
- Auto power saving
- Low power indicator
- Single and multi-wired cable crimping
- Modular crimping plugs: 8P8C(RJ45), 6P6C(RJ12), 6P4C(RJ11)

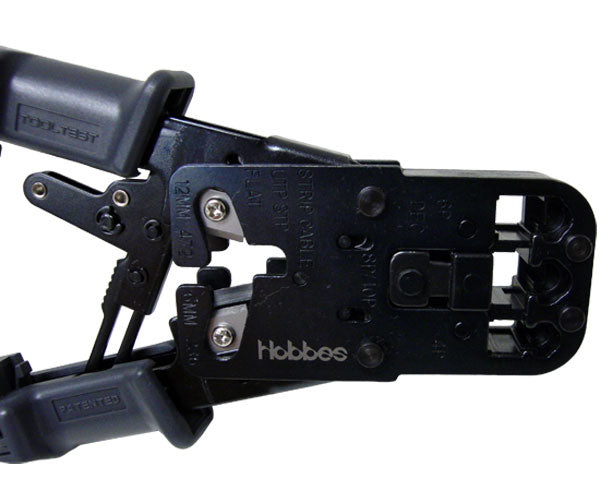

- Integrated cable stripper and cutter
- Crimping tool and cable tester in one

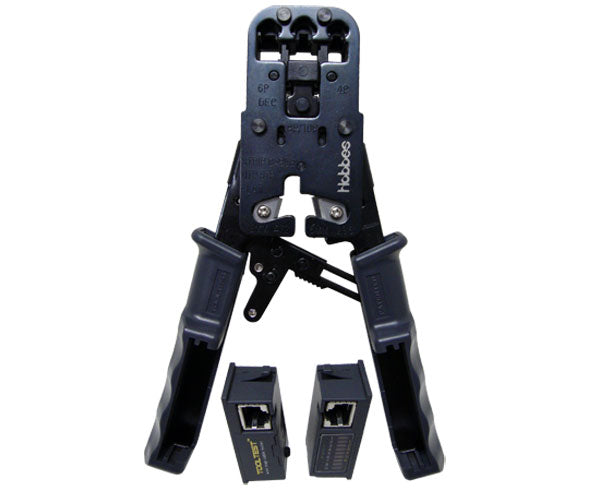

- Cable Tester can be detachable from the Tool
Specifications
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| TEST METHOD | Pin to Pin LED indicators |
| DETECTING WIRING FAULTS | Opened, shorted, mis-wire |
| SHIELDING VERIFYING | Verification of shield/Ground integrity |
| POWER SAVING | Auto power off |
| BATTERY LOW | LED flash indicated |
| BATTERY | DC 4.5V (3xLR-44) |
| LED DISPLAY DESCRIPTION | LED #1 to #8: 8 Pin wire configuration |
| LOW BATTERY INDICATOR | LED flashes to indicate unit |
| LED G | Shield/Ground |
Additional Information
Additional Information
| Product Videos | |
|---|---|
HOW TO CRIMP AND TEST RJ45 CABLES BY USING NETWORK CABLE TESTER? |
What’s In The Box
What’s In The Box
- Qty 1 - ToolTest All in One Cable Tester and Crimping Tool
