Descriptions

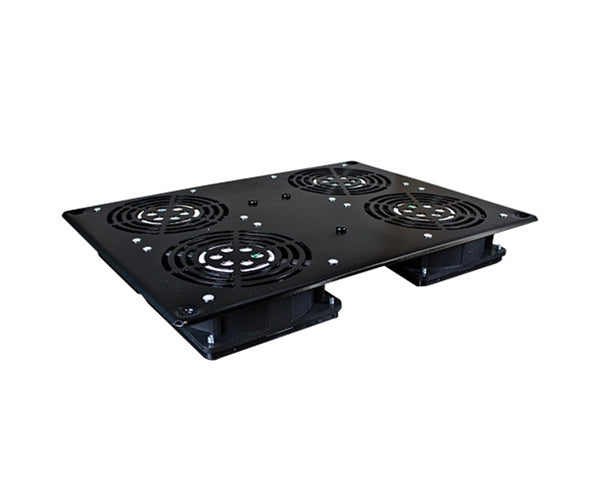

Top Mount Quad Fan, 300 CFM
The Top Mount Quad Fan can be added to any Primus Cable Network, Server, or SOHO cabinet to provide the additional airflow required to keep equipment running cool. Powerful yet quiet, this fan is a great option for installations in any environment.
Features
Features
- Quiet operation – rated at only 160 dbA
- Energy efficient – uses only 0.96A
- Detachable 6ft power cord (100-125VAC 50/60Hz)
Specifications
Specifications
| Product Type | Electric Fan |
| Impeller Material | PBT Reinforced Plastic |
| Terminals | 0.02" |
| Dimensions (HxWxD) | 5.2" x 19" x 1.8" |
| Motor | Shaded Pole Induction Motor |
| Bearing System | Sleeve |
| Cord Length | 6 ft (Detachable) |
| Operating Temperature |
-10°C ~ 70°C |
| Voltage | 100 ~ 125 VAC |
| Frequency | 50 / 60 Hz |
| Current | 0.48 Amps |
| Power | 10 / 9 Watts |
| Speed | 2100 / 2400 RPM |
| Noise | 80 dBA |
| Airflow | 150 CFM |
| Static Pressure | 3.1 / 4.1 (mmH²0) |
| Weight | 4 lbs |
| Quantity Per Package | 1 |
What's in the box?
What's in the box?
- Qty 1 - Top Mount Quad Fan, 300 CFM
