Description

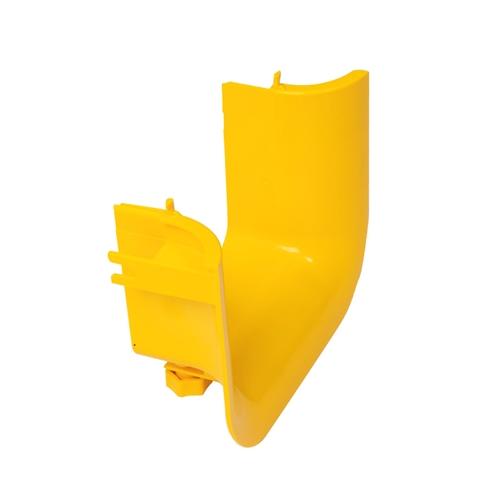

Trumpet - Fiber Cable Tray Channel
Trumpet spillouts are used to limit the bend radius of cables to 2" when exiting from a straight channel or other transitional fitting.
Features
Features
- Tool-free installation
- Lightweight, flame-retardant PVC (V-0 rated)
- Includes channel and snap-on cover
- Requires (1) 2.5" coupler, (1) 5" coupler and (1) 10" coupler for connection (sold separately)
- 4 sets of plastic t-bolts and hex nuts included
- UL listed
Specifications
| TECHNICAL SPECIFICATIONS |
| FIBER CABLE TRAY CHANNEL |

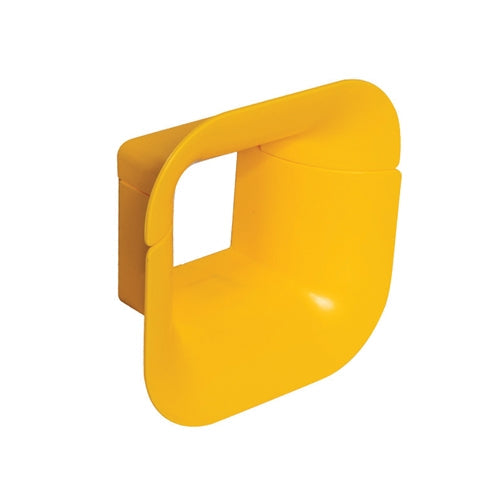

2.5” TRUMPET SPILLOUT |
5” TRUMPET SPILLOUT |

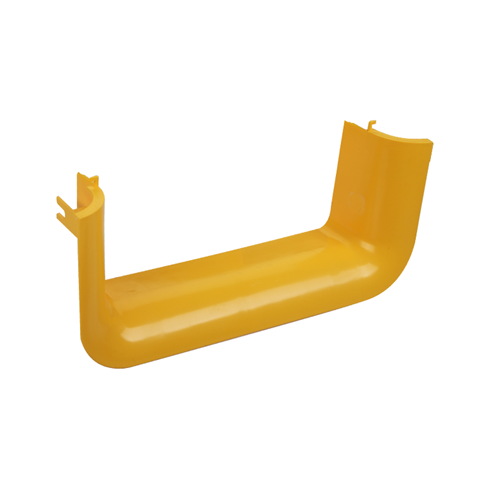

10” TRUMPET SPILLOUT |
| MATERIAL |
LIGHTWEIGHT, FLAME-RETARDANT PVC (V-0 RATED) |
| COLOR |
YELLOW |
| DIMENSIONS (L X W X H) |
5.1” X 5.1” X 2.4” |
7.0” X 4.9” X 2.8” |
12.7” X 5.4” X 2.2” |
| WEIGHT |
0.1 LBS |
0.26 LBS |
0.31 LBS |
| ENCLOSURE STYLE |
CHANNEL & SNAP-ON COVER |
N/A |
| HARDWARE |
NONE REQUIRED |
4 SETS OF PLASTIC T-BOLTS AND HEX NUTS (INCLUDED) |
| (1) COUPLERS FOR CONNECTION (SOLD SEPARATELY) |
| COMPLIANCE & STANDARDS |
UL2024 & UL94-V0 |
| SELLING UNIT |
1 PIECE |
Additional Information
| INSTALLATION ANIMATION |
|
What's in the Box
What's in the Box
-
Qty 1 - Trumpet - Fiber Cable Tray Channel
- Qty 4 - Sets of Plastic T-Bolts and Hex Nuts Included
