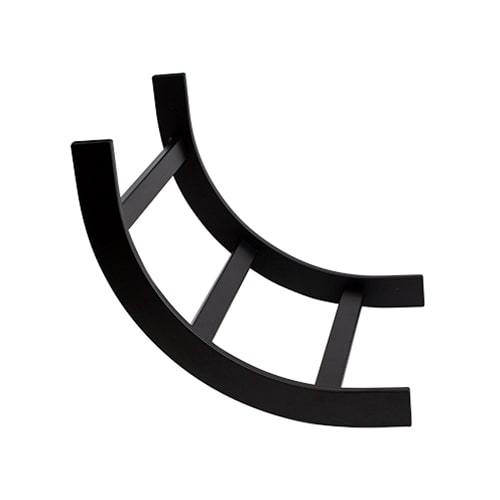

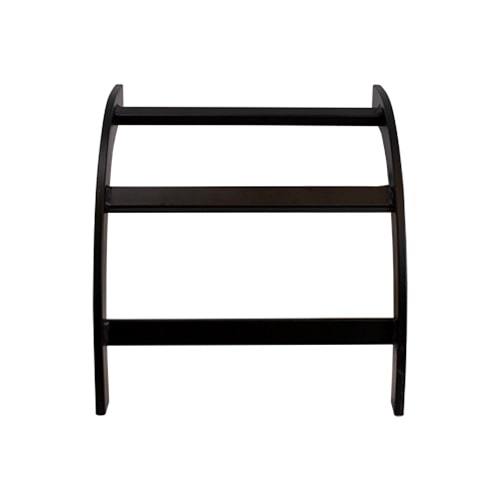

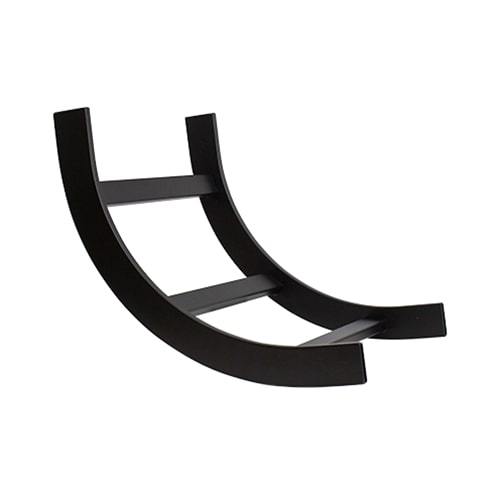

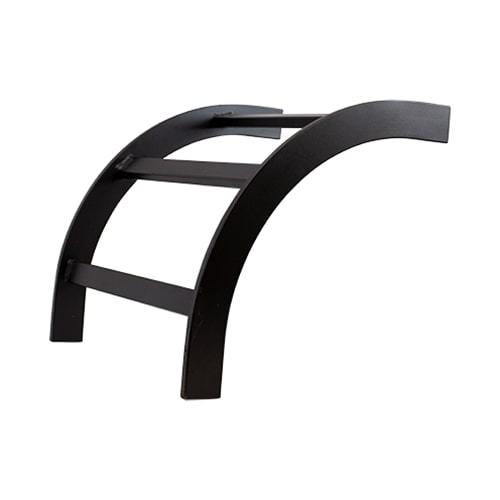

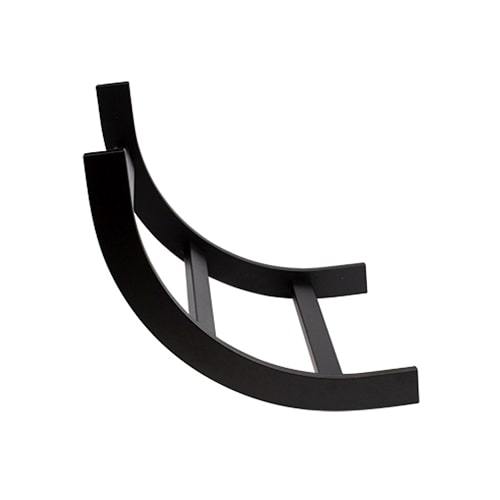

Our Universal Vertical Elbow provides a 90 degree bend from a horizontal run to vertical (or vice versa). Designed to comply with minimum cable bend radius requirements, this versatile item functions as an inside or outside bend.
Features
Features
Stringers: 1-1/2 x 3/8 x 0.06 thick tubular steel
Cross Members: 1.00 x 1/2 thick tubular steel welded on 9.00 centers
RoHS compliant
12" width
Specifications
TECHNICAL SPECIFICATIONS
PRODUCT TYPE
UNIVERSAL RADIUS BEND LADDER
PRODUCT MATERIAL (SIDES)
1-1/2 X 3/8 X 0.06 THICK TUBULAR STEEL
WIDTH
12"
PRODUCT MATERIAL (RUNGS)
1 X 1/2 X 0.06 THICK TUBULAR STEEL
PRODUCT COLOR
BLACK (ADDITIONAL COLORS AVAILABLE THROUGH SPECIAL ORDER)
COMPLIANCE & STANDARDS
ROHS COMPLIANT AND CONFORMS TO EIA-310 STANDARDS
Additional Information
TECHNICAL ILLUSTRATIONS
What's in the Box
What's in the Box
Qty 1 - Universal Vertical 90º Elbow
