These products are all Made to Order
Which means they are non-cancelable and non-refundable
Description

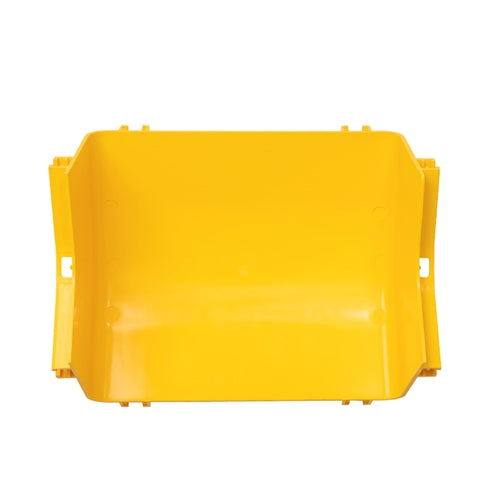

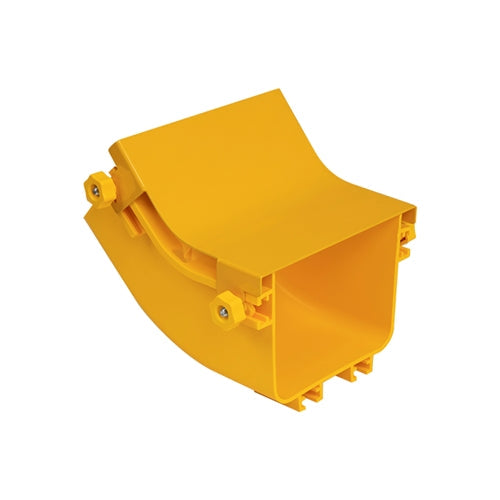

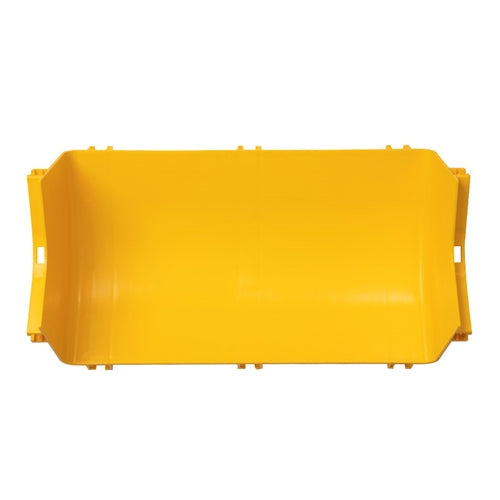

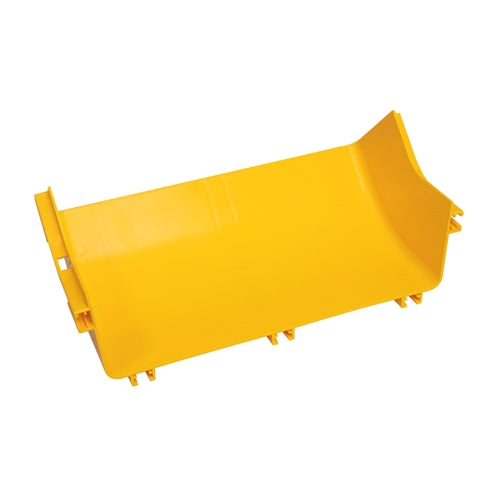

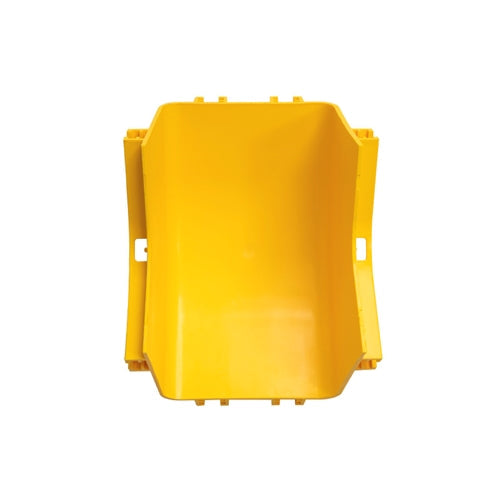

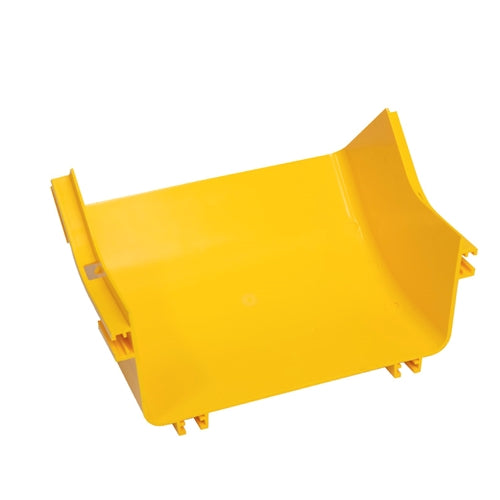

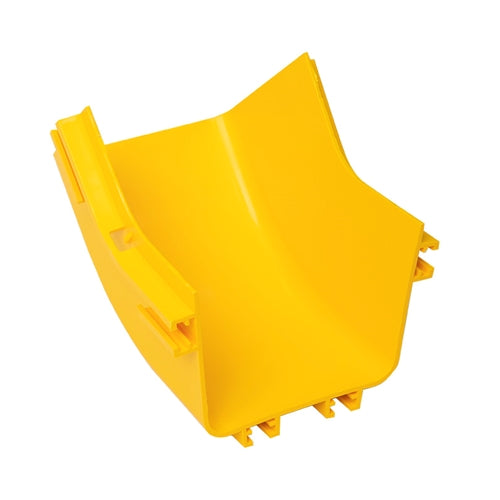

45° Up Elbow - Fiber Cable Tray Channel
Connects to a straight channel section to create a 45 degree upward angle from a horizontal run. Use with appropriate 45 degree down elbow to change the elevation of a fiber routing system.

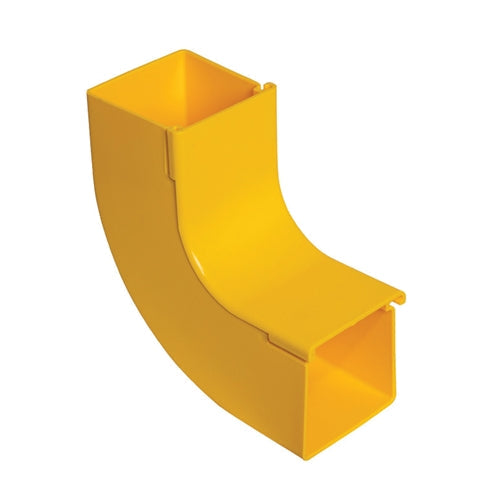

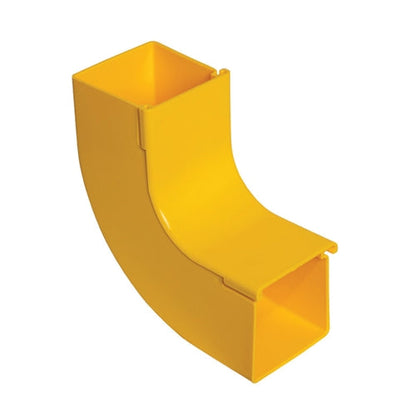

90° Up Elbow With Cover - Fiber Cable Tray Channel
Connects to a 2.5” straight channel section to create a 90-degree upward bend from a horizontal run. Completely tool-free installation.
Features
Features
- Maintains minimum cable bend radius requirements
- Tool-free installation
- Lightweight, flame-retardant PVC (V-0 rated)
- Requires couplers for connection (sold separately)
- Snap-on cover available (sold separately)
- UL listed
Specifications
| TECHNICAL SPECIFICATIONS | ||||
|---|---|---|---|---|
| FIBER CABLE TRAY CHANNEL | 2.5” 90° Up Elbow w/ Cover | 5” 45° Up Elbow | 10” 45° Up Elbow | 15" 45° Up Elbow |
| MATERIAL | LIGHTWEIGHT, FLAME-RETARDANT PVC (V-0 RATED) | |||
| COLOR | YELLOW | |||
| DIMENSIONS (L X W X H) | 5.5” x 2.5” x 5.5” | 8.2” x 6.1” x 6.6” | 8.2” x 10.9” x 6.6” | 8.1” x 15.6” x 6.6” |
| WEIGHT | 0.3 LBS | 0.65 LBS | 0.65 LBS | 0.99 LBS |
| Included Component for Up Elbow | Snap-On Cover | COVER for 5" (sold separately) | COVER for 10" (sold separately) | COVER for 15" (sold separately) |
| HARDWARE | (2) 2.5" couplers for connection (sold separately) | (2) 5" couplers for connection (SOLD SEPARATELY) | (2) 10" couplers for connection (SOLD SEPARATELY) | (2) 15" couplers for connection (SOLD SEPARATELY) |
| COMPLIANCE & STANDARDS | UL2024 & UL94-V0 | |||
| SELLING UNIT | 1 SET | 1 PIECE | ||
Additional Information
| INSTALLATION ANIMATIONS |
|---|
 |
What’s In The Box
What’s In The Box
-
Qty 1 - 45° or 90° Up Elbow - Fiber Cable Tray Channel
