Various lead times may apply to this product. Please contact us for more details.Description

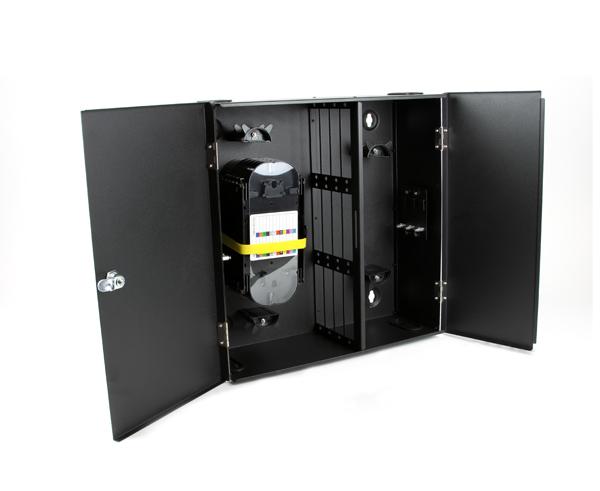

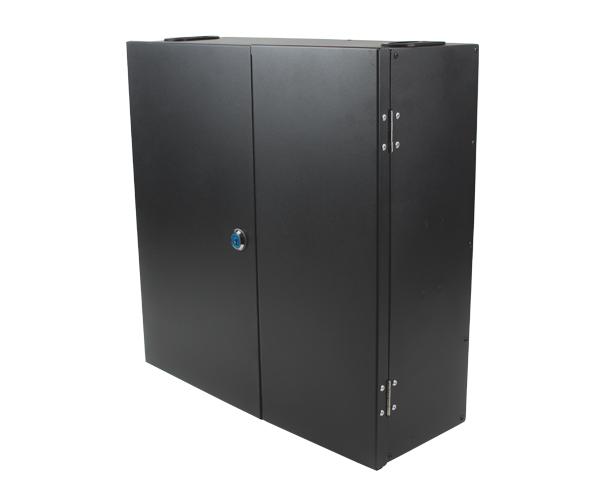

Wall Mount Fiber Patch Panel, 12 Adapter Panel Capacity

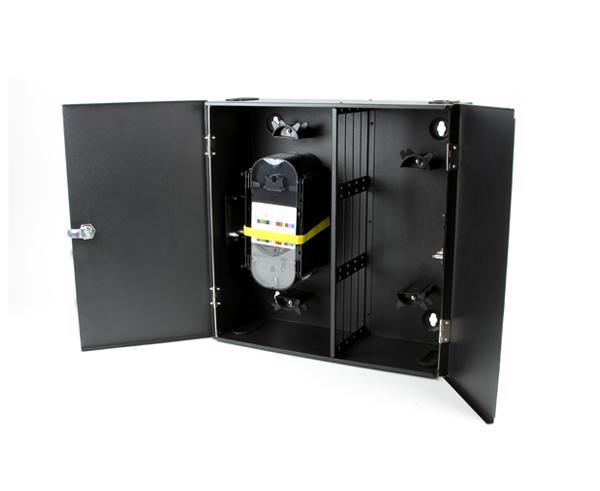

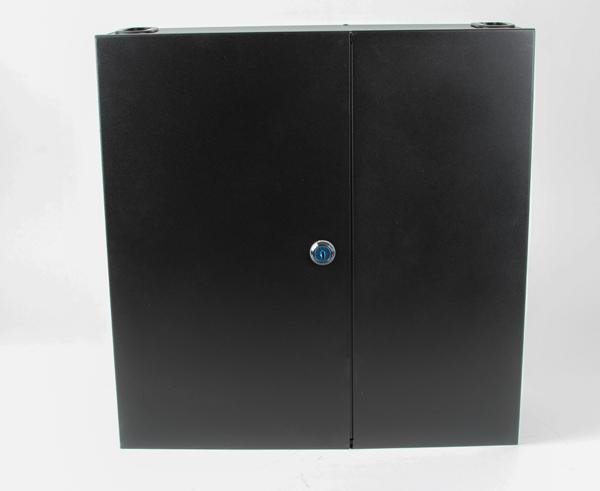

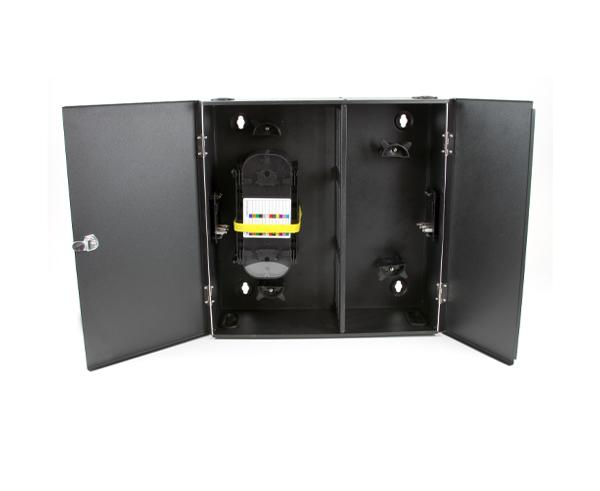

This wall mount fiber patch panel offers the ultimate in flexibility for your fiber optic applications. The fiber housing comes in a double steel door design with an integrated key lock latching system. This fiber distribution unit can accommodate up to 12 fiber adapter panels and 8 splice trays. 96 fiber strands recommended, maximum 192 fiber strands.

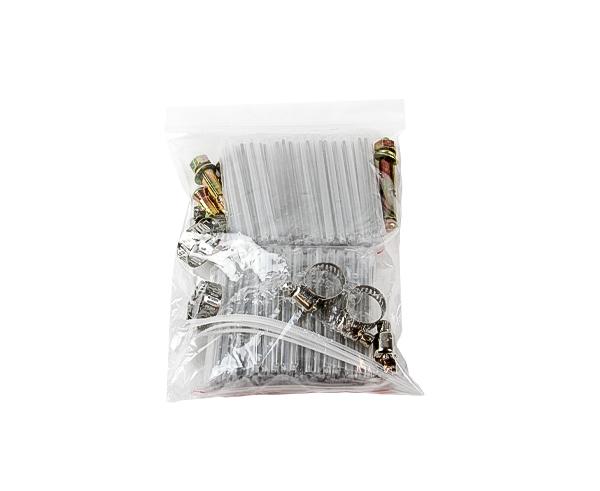

Also included with the enclosure are zip ties, cable routing clamps, mounting screws, fiber splice sleeves and installation instructions. Attractive black textured finish.
To make this a complete unit ready for fusion splicing and patching out your existing or newly purchased fiber optic cable, don't forget to add LC fiber pigtails to your order.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
- Ultimate flexibility for high density applications.
- Double steel door design.
- Button locking mechanism for security
- Splice tray(s) included with cable management
Specifications
Capacity
8 Splice Tray Included (FB25-6217STP24), 12 Adapter Panel Capacity
Physical Properties
FB36-2789WM12
Depth: 5.91"
Height: 16.14"
Width: 15.75"
Color: Black
Material: Steel
