Mounting kit required for NEMA 4 compliance.
Adapter panels and splice trays NOT included.
This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-3995STP12 splice tray.

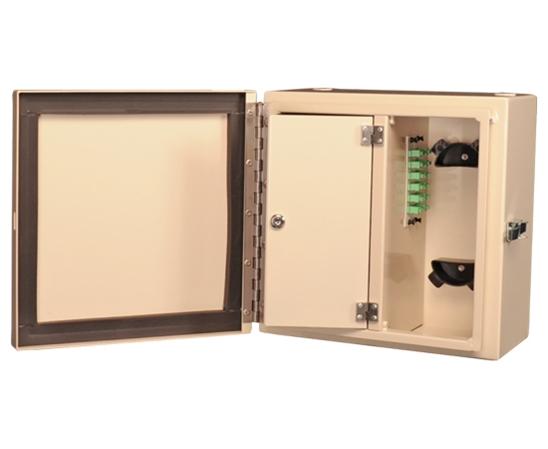

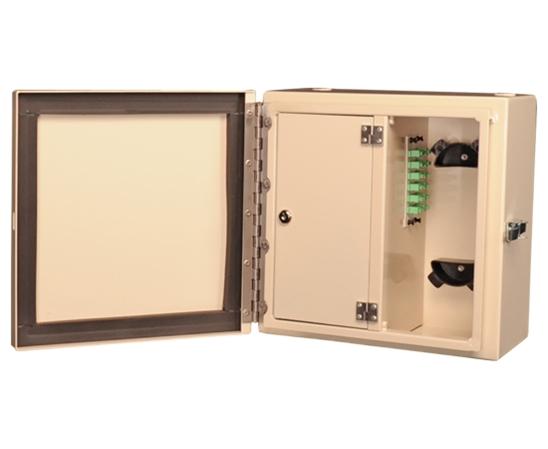

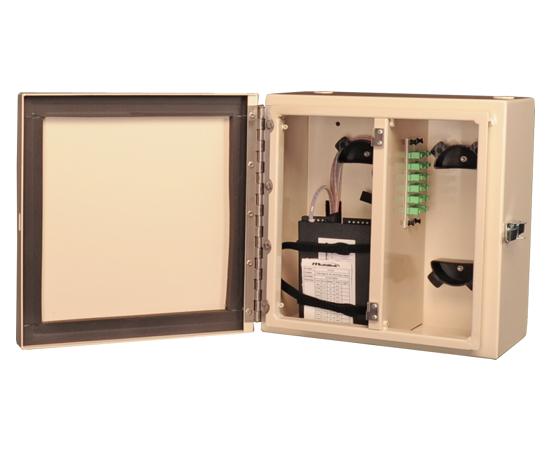

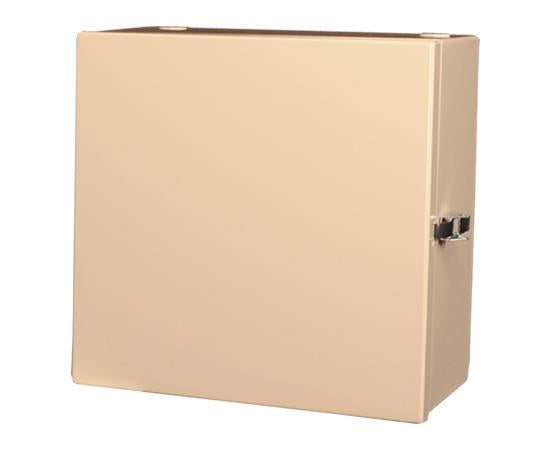

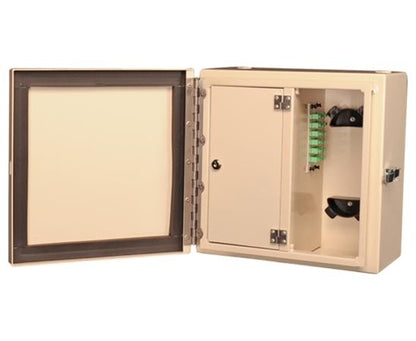

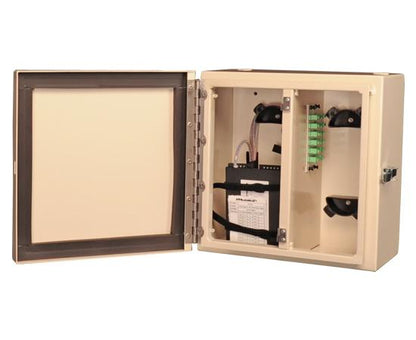

Wall Mount Fiber Patch Panel, NEMA 1 & 4 Rated, Holds 2 Adapter Panels and 2 Splice Trays, Up to 24 Ports, Beige
The FB23-3964WN4D2 is an outdoor rated NEMA 1 & NEMA 4 (mounting kit required for NEMA 4 compliance) wall mount fiber patch panel. The enclosure is designed for environments where durability, security, and weather resistance is required. The enclosure is manufactured out of aluminum and coated with polyester powder coat paint for corrosion resistance.
The Network compartment has a removable and lockable internal door with capacity for (2) Splice Trays, cable management, and (2) cable entry points. The Subscriber compartment has capacity for (2) Adapter Panels, cable management, and (2) cable entry points. The outer door is removable and pad-lockable. Enclosure also includes (2) Cable Strain Relief kits, (1) Danger "Laser" Sticker, and blank labels.
Optional Accessories: Pole Kit FB26-1175-PM and Mounting kit FB26-1146-WM (to make unit NEMA 4 compliant)
Wall Mount Cabinet Features:
- Lockable network door for added security.
- NEMA 4 rated—Mounting kit required for NEMA 4 compliance..
CapacitySplice Trays: (2) 12 Fiber Splice Trays (Sold Separately)
Panels: (2) Panels (Sold Separately)
Weight: 13 lbs.
Material: .08" Powder Coated Aluminum
In Non-Hazardous Locations, the specific enclosure types, their applications, and the environmental conditions they are designed to protect against, when completely and properly installed, are as follows:
NEMA 1 Enclosures
Constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts and to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt).
NEMA 4 Enclosures
Constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water); and that will be undamaged by the external formation of ice on the enclosure.
