Wall Mount Ground Bar Kit
Description
Description
Wall Mount Ground Bar Kit

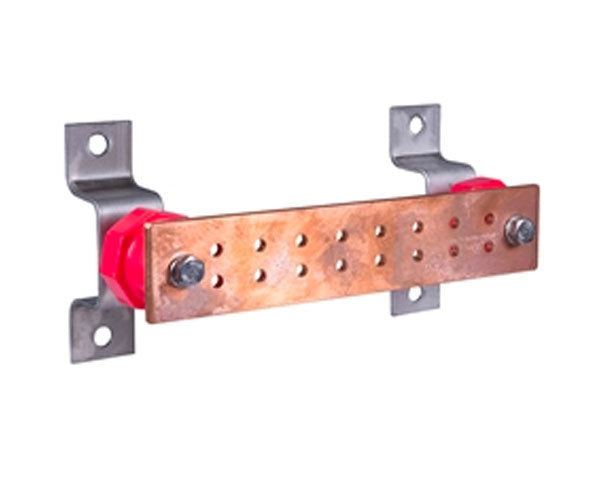

This wall mount ground bar kit provides a central bond location for ICT systems/equipment and the building’s ground system. The 10” x 2” x 0.25” bar is 99.9% pure C11000 electrolytic tough-pitch copper and includes (16) ¼” holes with 5/8” vertical and 1” horizontal spacing. Thermoset polyester standoff insulators and stainless-steel mounting brackets offset the ground bar 2.5” from the mounting surface.
Features
Features
- Dimension 10" x 2" x 0.25"
- Made of 99.9% Pure C11000 Electrolytic Tough-Pitch Copper
-
Thermoset polyester standoff insulators and stainless-steel mounting brackets offset the ground bar 2.5” from the mounting surface.
-
(16) ¼” holes with 5/8” vertical and 1” horizontal spacing included
Specifications
Specifications
| Material | 99.9% Pure C11000 Electrolytic Tough-Pitch Copper |
| Dimensions (HxWxD) |
10" x 2" x 0.25" |
| Mounting Hardware |
(16) ¼” holes with 5/8” vertical and 1” horizontal spacing included |
| Quantity Per Package |
1 kit |
What's in the box?
What's in the box?
- Qty 1 - Wall Mount Ground Bar Kit
